C - INSTALLATION
7.2 - TELESCOPIC MOTORS

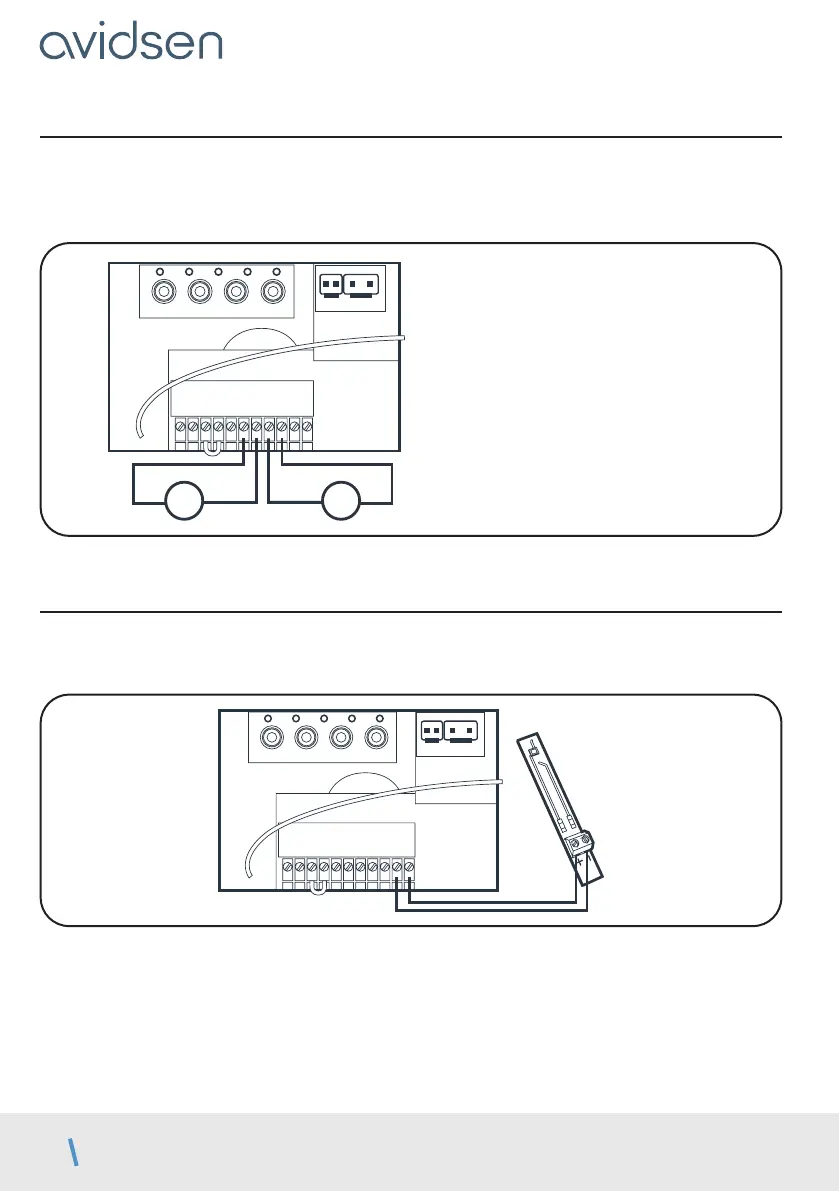

For motor wiring on the electronic card, use a 2x1.5mm² cable. Run the cable through the cable clamp and
tighten
• For opening towards the inside
Black
Red
L0
PROG
OK
+
-
L1 L2 L3 L4
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
M2M1
The motor that opens first must be
connected to the M1 output of the
electronic card.
Black
Red
7.3 - FLASHING LIGHT
• Connect the flashing light wires to the terminal block as shown in the diagram below.
• Use a 2x0.5mm² section cable, at least.
• Maintain the connection polarity
L0
PROG
OK
+
-
L1 L2 L3 L4
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
