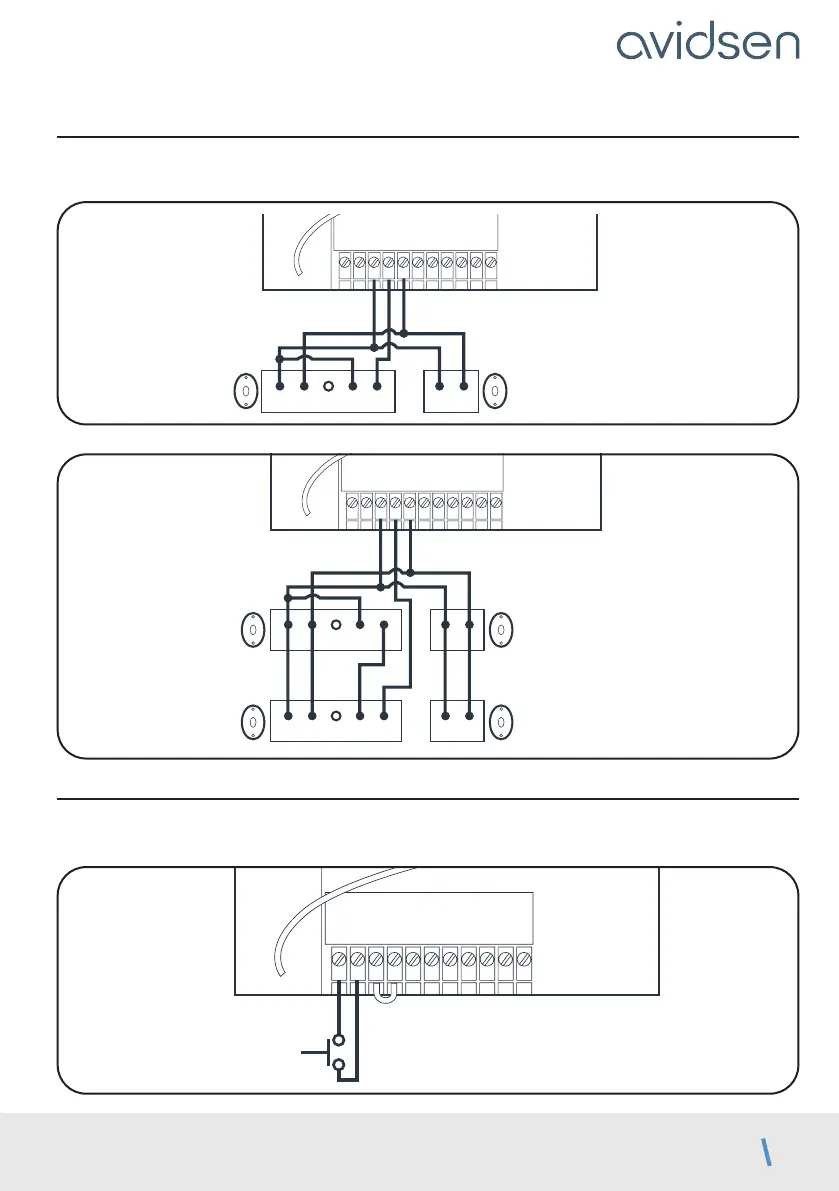

7.4 - PHOTOCELLS (OPTIONAL)
• If there are no photocells, leave the connector between GND and PHO.
• With one set of photocells, remove the connector between GND and PHO.
photocell RX1 photocell TX1
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
~- ~+ ~+~-NO COMNC
• With 2 sets of photocells, remove the connector between GND and PHO
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
~- ~+ ~+~-NO COM NC
~- ~+ ~+~-NO COM NC
photocell RX1 photocell TX1
photocell RX2 photocell TX1
7.5 - CONTROL PARTS (OPTIONAL)
Note:
This command activates the complete opening of the gate from a dry contact.
push button, intercom
output.
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
