A360 PersonAl Mixer User GUide
Parallel Connections
An A-Net Distributor simplifies the connection or expansion of an existing Pro16 personal mixing system
with A360 Personal Mixers. As with the daisy chained system, a single analog input module or digital
console card is used to generate a 16-channel A-Net signal that is distributed to the Personal Mixers.
Using one or more A-Net Distributors allows any number of A360 Personal Mixers to be integrated into a
personal mixing system along with A320, A-16II and A-16R Personal Mixers. As with the daisy chain system,
the rear-panel mode switch on the A360 should be set to Pro16 when it is used with a Pro16 personal
mixing system made up of 16 or fewer input channels.
P
Note: In the diagrams that follow, any compatible A-Net Distributor—including the D800,
D800-Dante, D400, or D400-Dante—may be substituted for the distributor shown.
e
to/from Personal Mixers
Load
Power
Sync
12345678
D800
I II I II I II I II I III II I III II
Analog input module or
digital console card

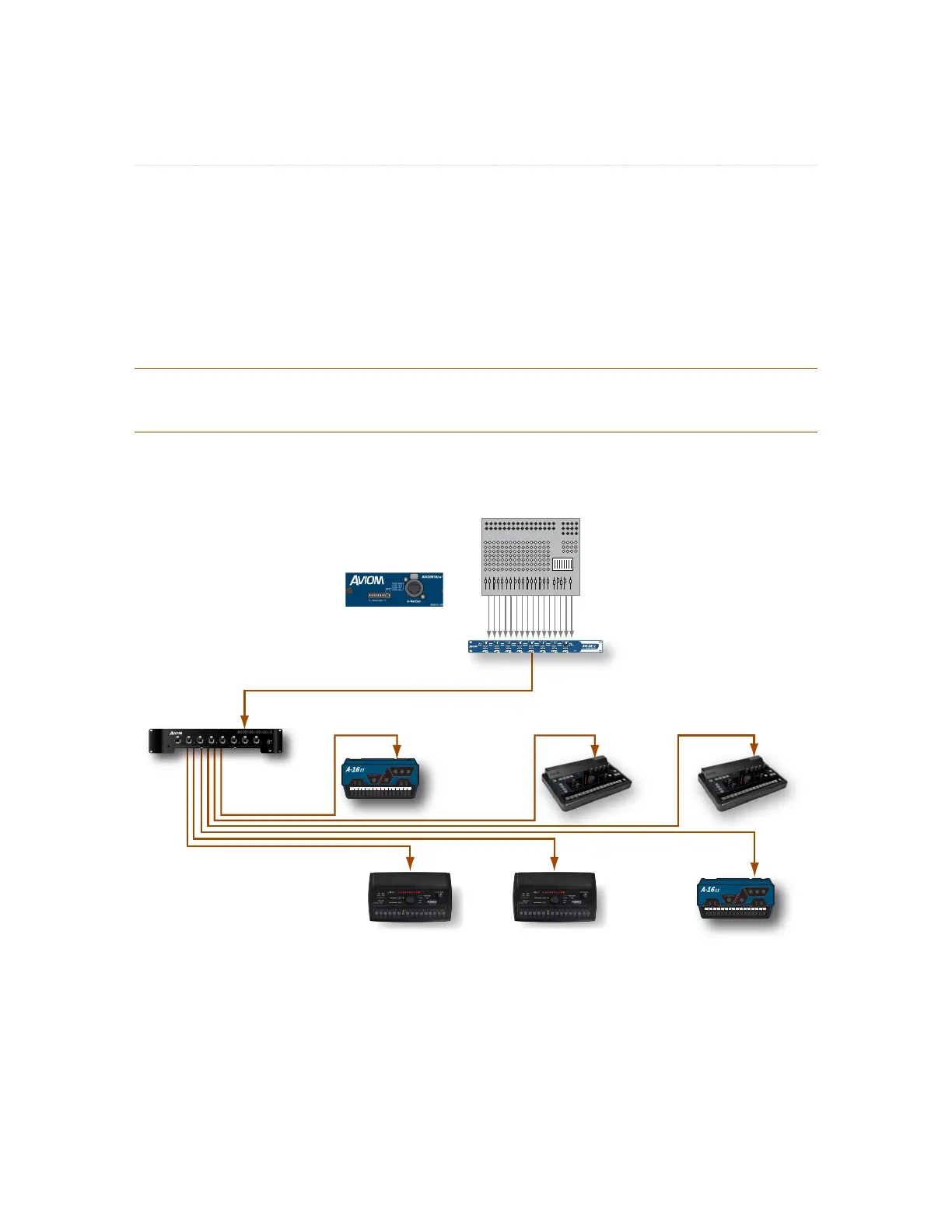

An A-Net Distributor allows Personal Mixers to be connected in parallel.
The A360 Personal Mixer can be powered over the Cat-5 cable when connected to an A-Net Distributor.
