A360 PersonAl Mixer User GUide
Stereo Speakers

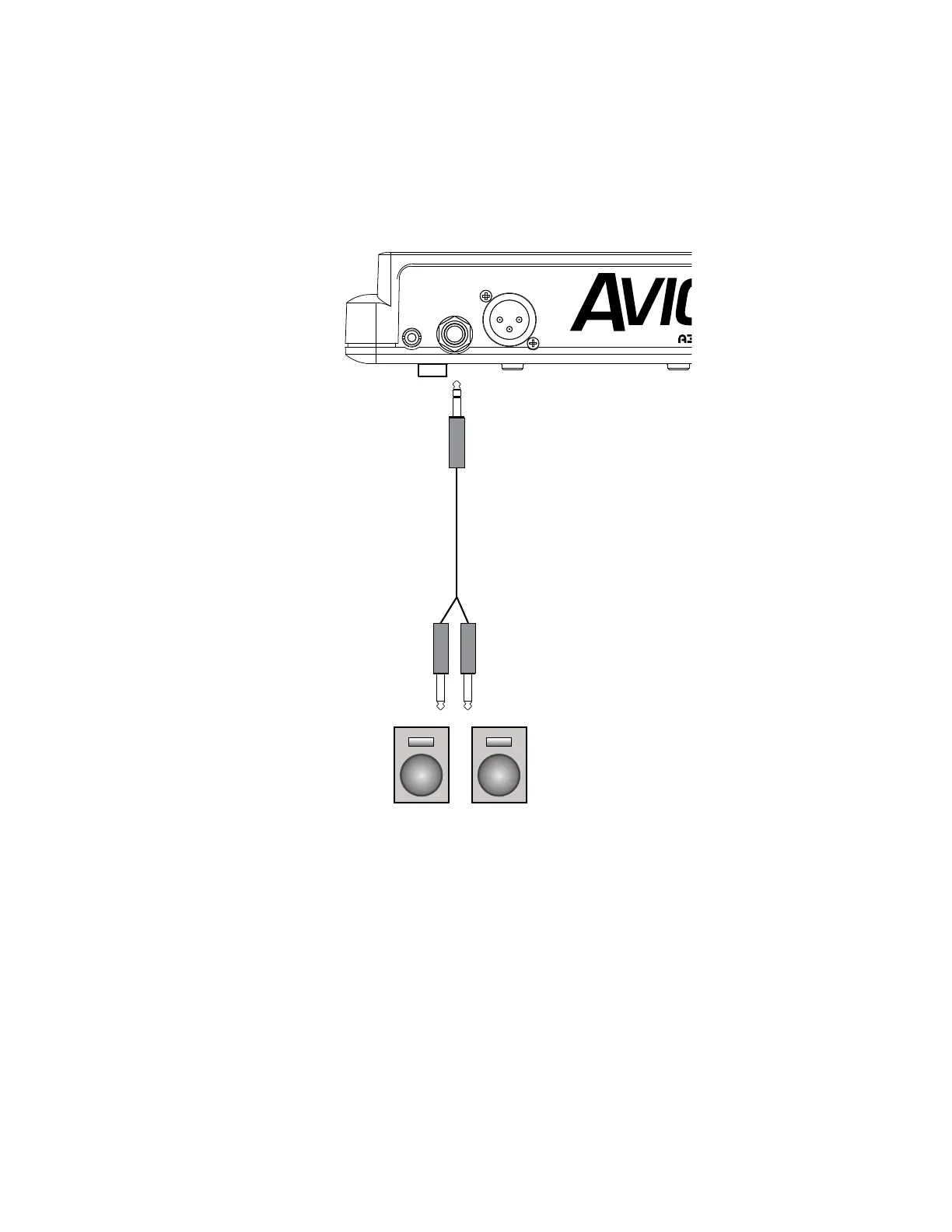

The Stereo Mix Out may be connected to a set of powered stereo monitor speakers using a Y-cable that
splits the TRS stereo output to a pair of TS mono left and right outputs.
Mono Mix Out
A-Net In
Data
24VDC
Regulated
500 mA
CUSTOM
PROGRAM
DEFAULT
Pro16
Stereo Mix Out
A Y-cable is required to connect the A360 to stereo powered speakers.
If the powered speakers have XLR inputs, a custom cable may be required. Check the speaker’s
documentation for information about properly connecting the unbalanced left and right signals from the
A360 Stereo Mix Out to the balanced inputs of the powered speakers.
