A360 PersonAl Mixer User GUide
Stereo Wireless In-Ear Systems

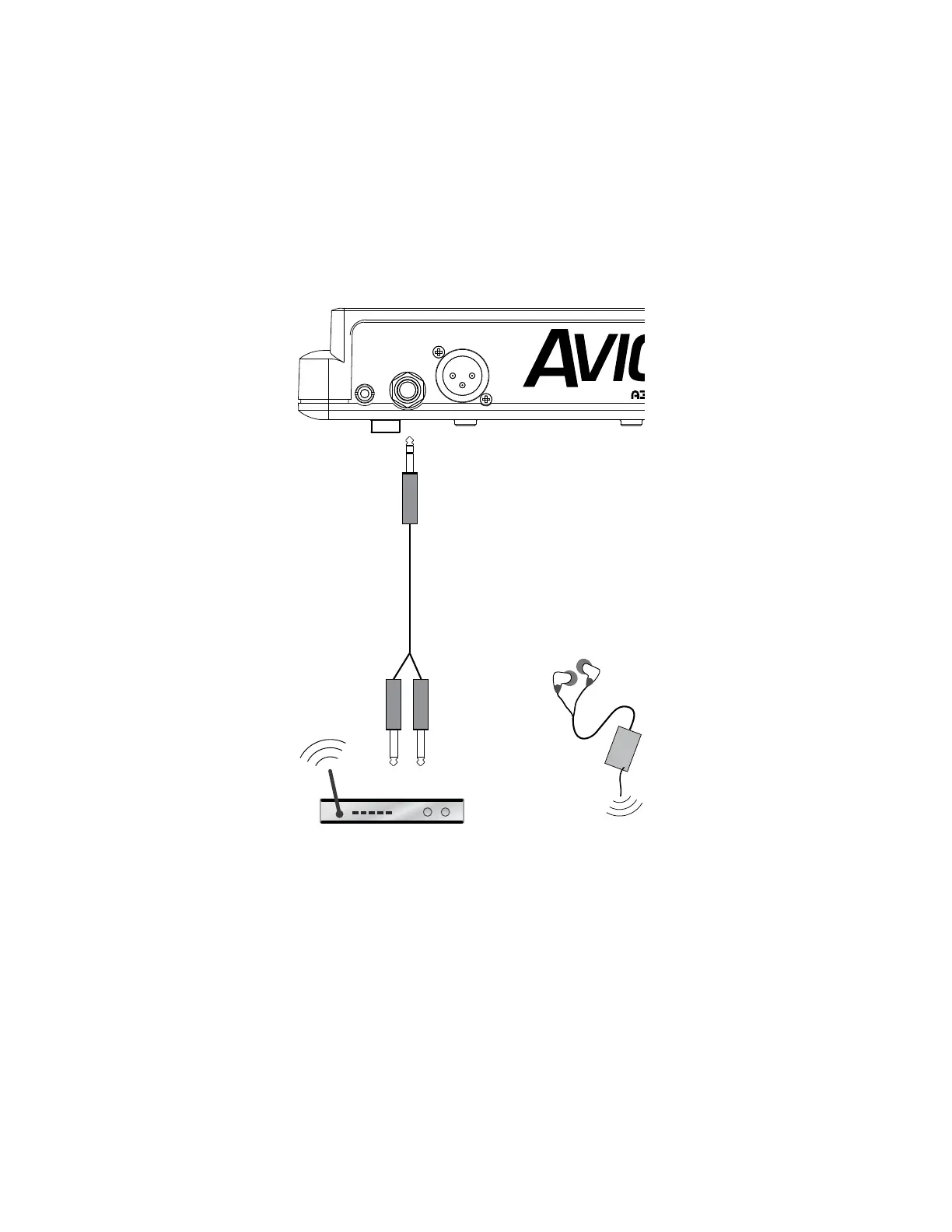

The A360’s Stereo Mix Out may be connected to the left/right inputs of a wireless transmitter used for
in-ear monitoring. A Y-cable that splits the TRS stereo output to a pair of TS mono left and right outputs
is required. Note that the connection from the left and right TS cables is unbalanced. If the inputs to
the wireless transmitter are XLR only, a special cable may need to be made. Consult the transmitter’s
documentation for information about properly connecting unbalanced signals to its XLR inputs.
Mono Mix Out
A-Net In
Data
24VDC
Regulated
500 mA
CUSTOM
PROGRAM
DEFAULT
Pro16
Stereo Mix Out
The Stereo Mix Out can be connected to a wireless in-ear transmitter with a Y-cable.
If you need to create a custom adapter cable, note that the TRS tip connector carries the left audio signal,
the ring carries the right signal, and the sleeve provides ground for both. The left and right signals are
unbalanced in this case.
