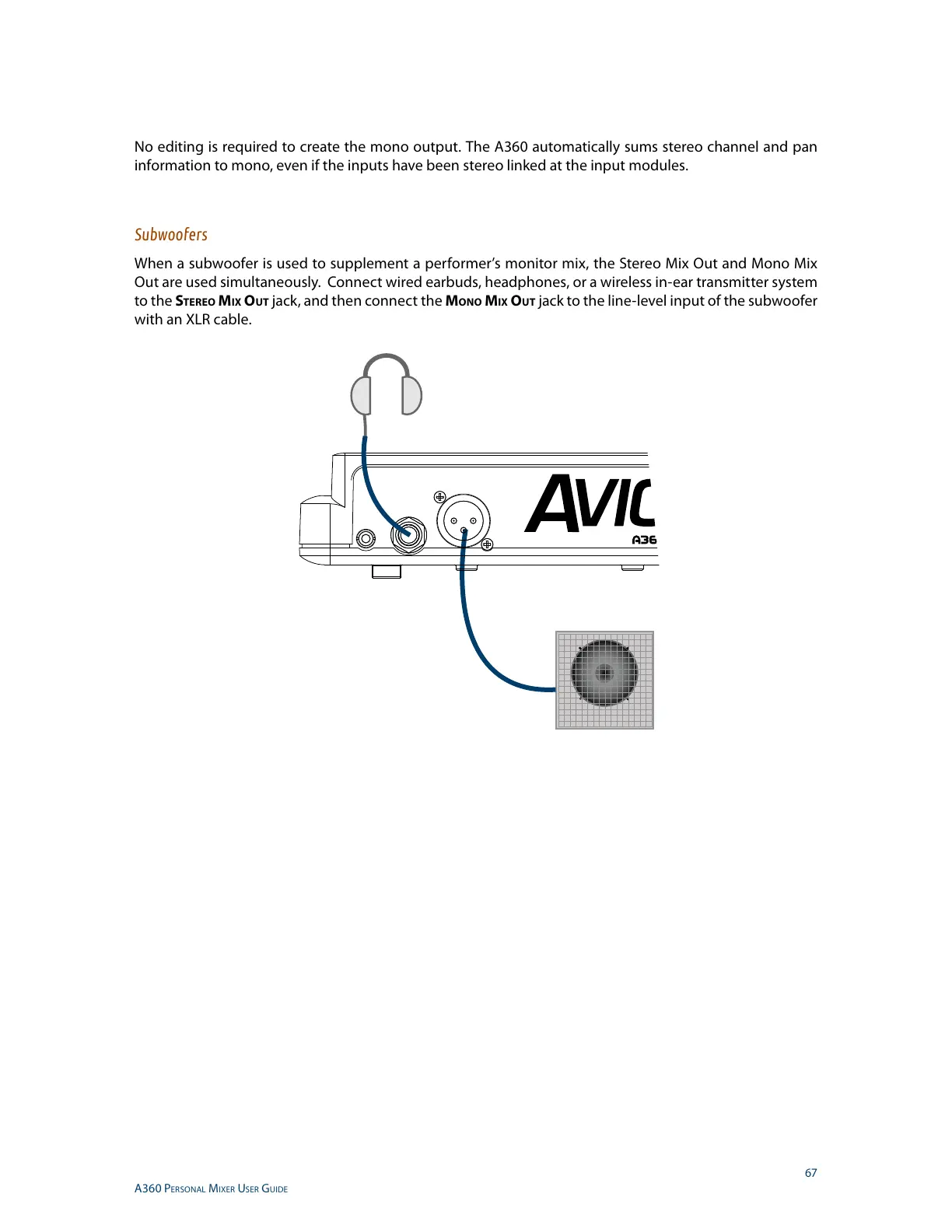

67
A360 PersonAl Mixer User GUide
No editing is required to create the mono output. The A360 automatically sums stereo channel and pan
information to mono, even if the inputs have been stereo linked at the input modules.
Subwoofers
When a subwoofer is used to supplement a performer’s monitor mix, the Stereo Mix Out and Mono Mix
Out are used simultaneously. Connect wired earbuds, headphones, or a wireless in-ear transmitter system
to the Stereo mIx out jack, and then connect the moNo mIx out jack to the line-level input of the subwoofer
with an XLR cable.
Mono Mix Out
A-Net In
Data
24VDC
Regulated
500 mA
CUSTOM
PROGRAM
DEFAULT
Pro16
Stereo Mix Out

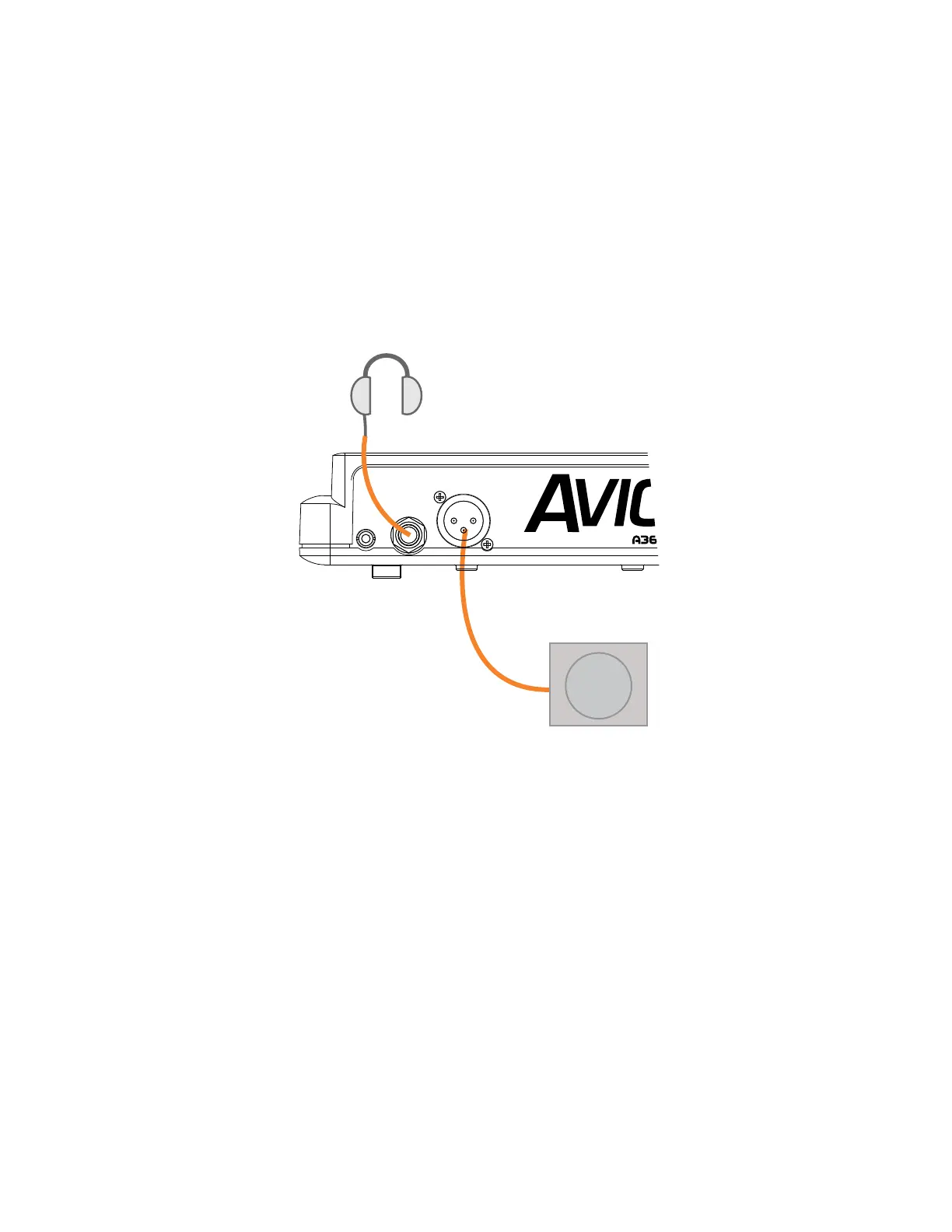

Headphones and a subwoofer are connected to the A360.
