Installation – Terminal Assignment
4–4 ©1998 AViTEQ Vibrationstechnik GmbH Version 02/2003

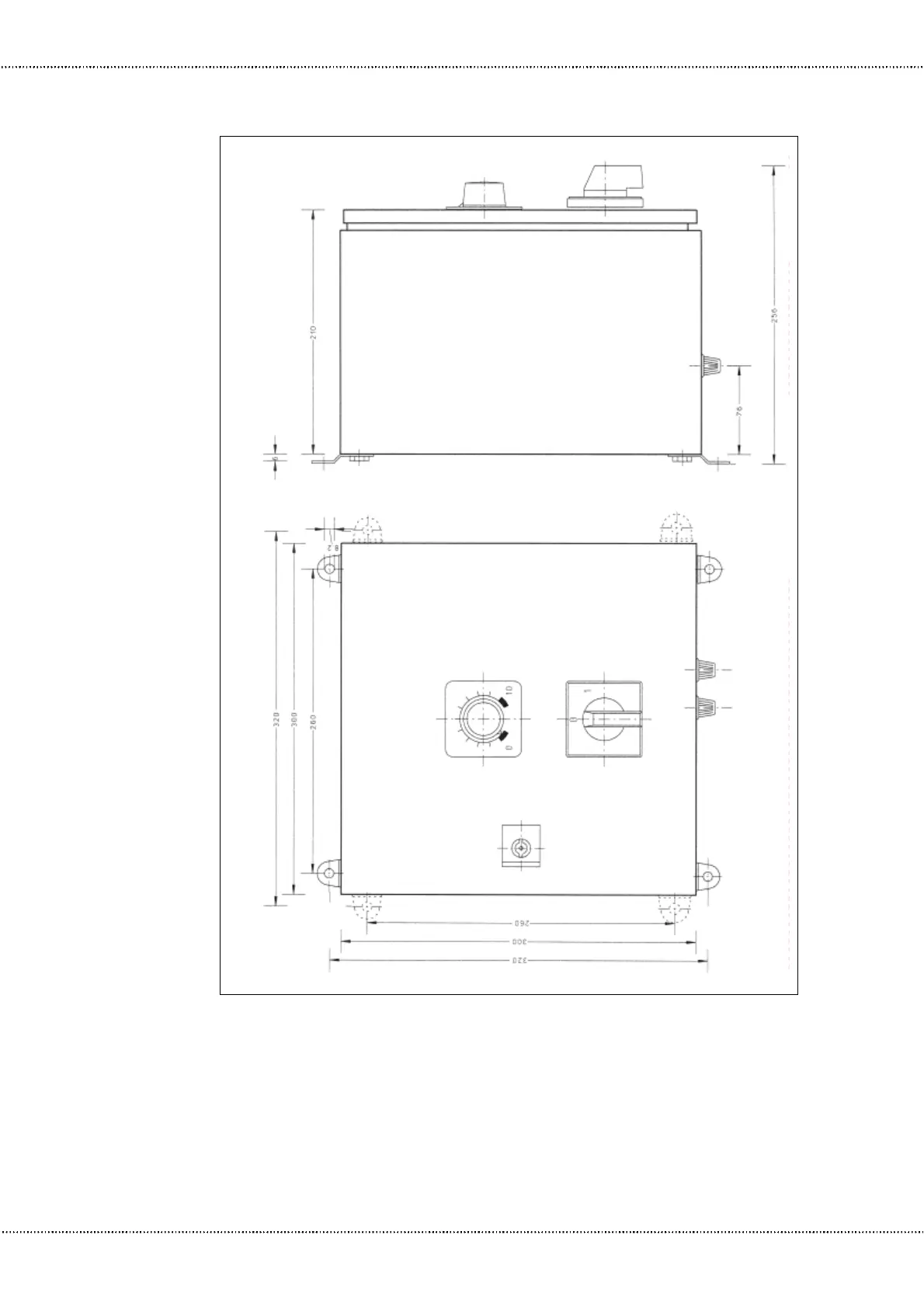

Figure 4.2 Cabinet unit type SCE…-2: protection class IP55, weight approx. 6 kg,
dimensions and hole pattern for securing to vertical vibration-free walls or
frames
