4.3.2 Connection Diagram
Connection diagram for the controller see Figure 4.9.
The operating manual with appropriate connection diagram is delivered with each
controller.
Note the minimum terminal assignment (Figure 4.3 on Page 4-5)!

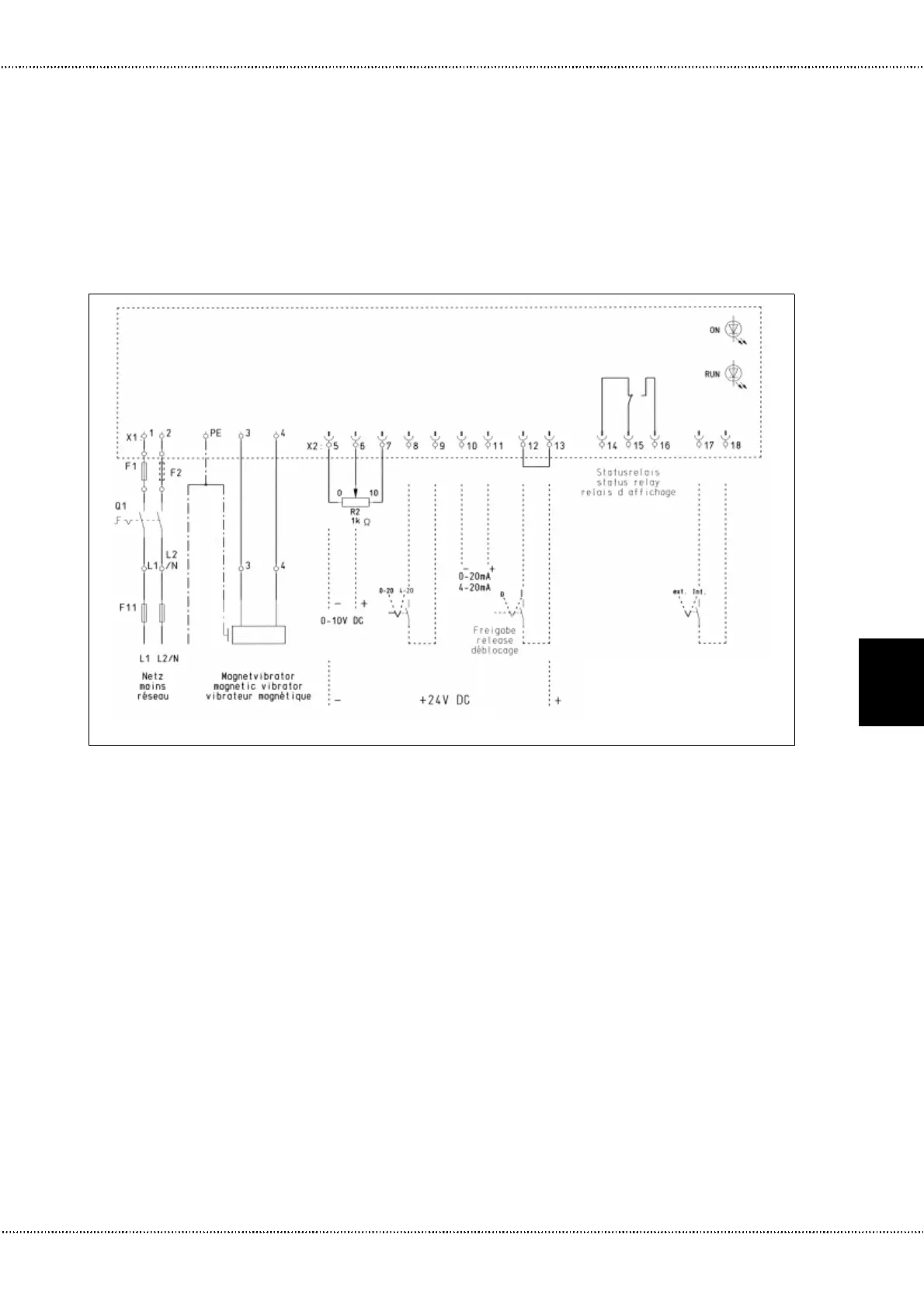

Figure 4.9 Connection Diagram for Controller VIBTRONIC SC(E)…-2
Switch (Q1) and fuse(s) (F1)
with cabinet unit only!
Closed: control input at terminals 5, 6, 7 is used;
terminals 10+11 are ignored.
Open: terminals 10+11 are used;
terminals 5, 6, 7 are ignored.
