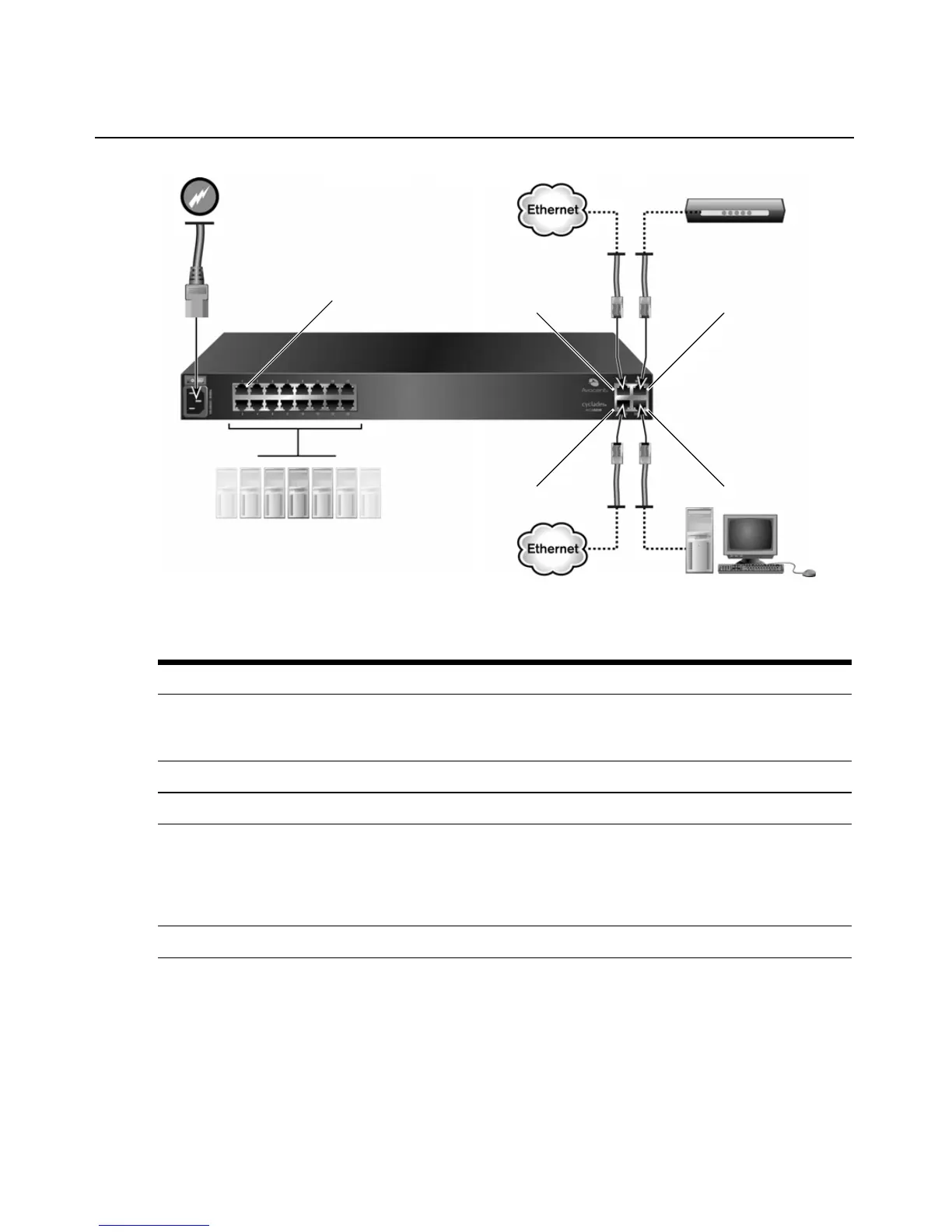

Figure 1.1: ACS 6000 Advanced Console Server Ports
Table 1.1: ACS 6000 Advanced Console Server Port Descriptions
Number Description
1Serial Port 1
NOTE: Serial ports are also referred to with tty device names, such as ttSy1, ttyS2 and
so forth.
2 Eth1 (eth1)
3 Eth0 (eth0)
4 AUX/Modem Port (ttyM1 or ttyA1)
NOTE: If an internal modem is ordered and factory installed, this port is configured
internally as a modem port. If an internal modem is not installed, the port is configured as
an auxiliary port, and a PDU or an external modem can be connected to it. The figure
shows an external modem connected.
5 Console Port
