1. MENU

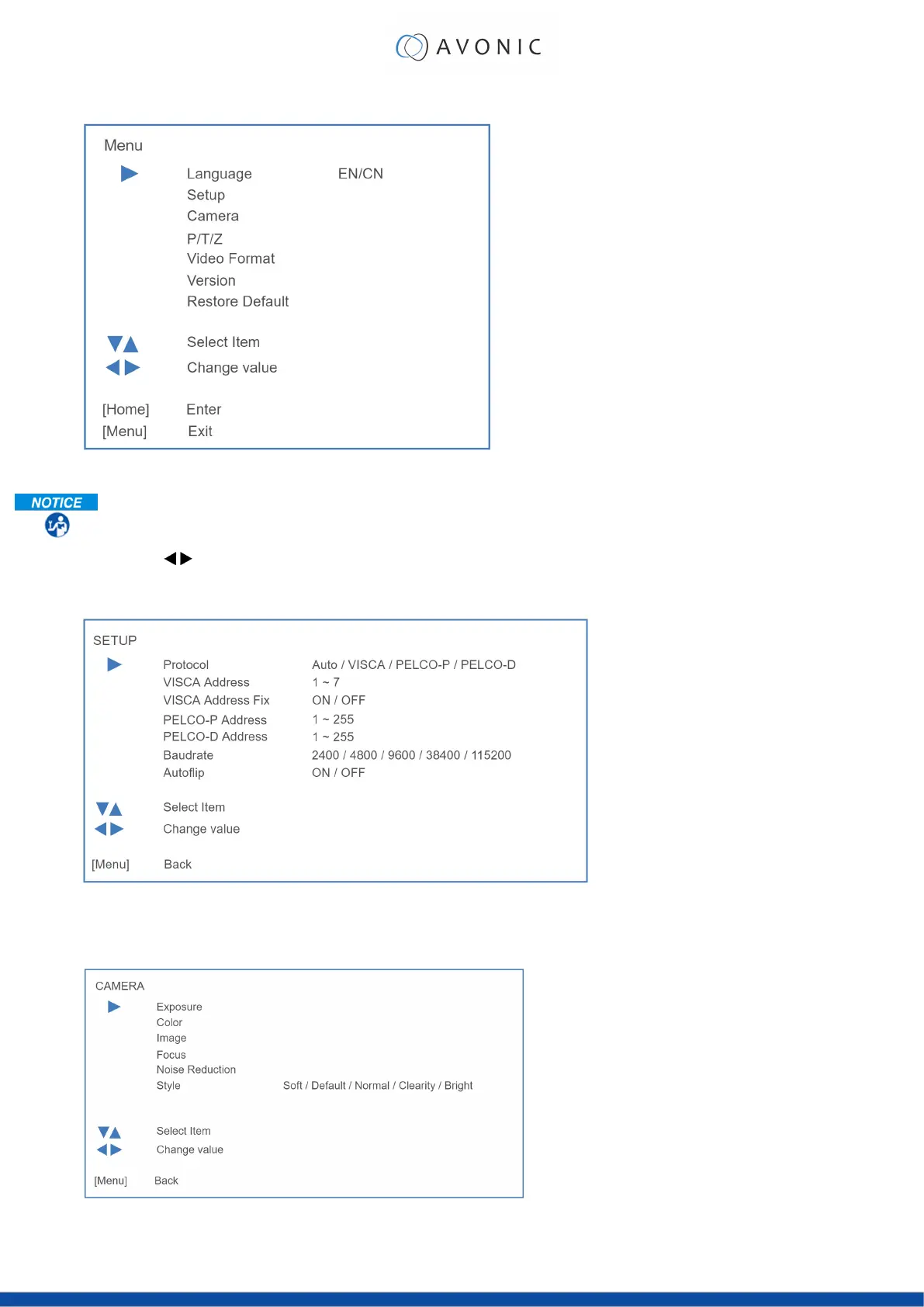

Figure 50: OSD - MENU
1.
Press the
MENU
button to display the main menu on the screen.
2.
Use the arrow buttons to move the cursor to the item to be set. Press the
HOME
button to enter
the corresponding sub-menu.
3.
Press [
] to change settings. Press [
MENU
] again to go back.
2. SETUP
Figure 51: OSD - SETUP
3. CAMERA
Figure 52: OSD - CAMERA
