OXYGEN 1000 & OXYGEN 2000 · User Manual · ENG
SURFACE |TALKBOX CONNECTIONS

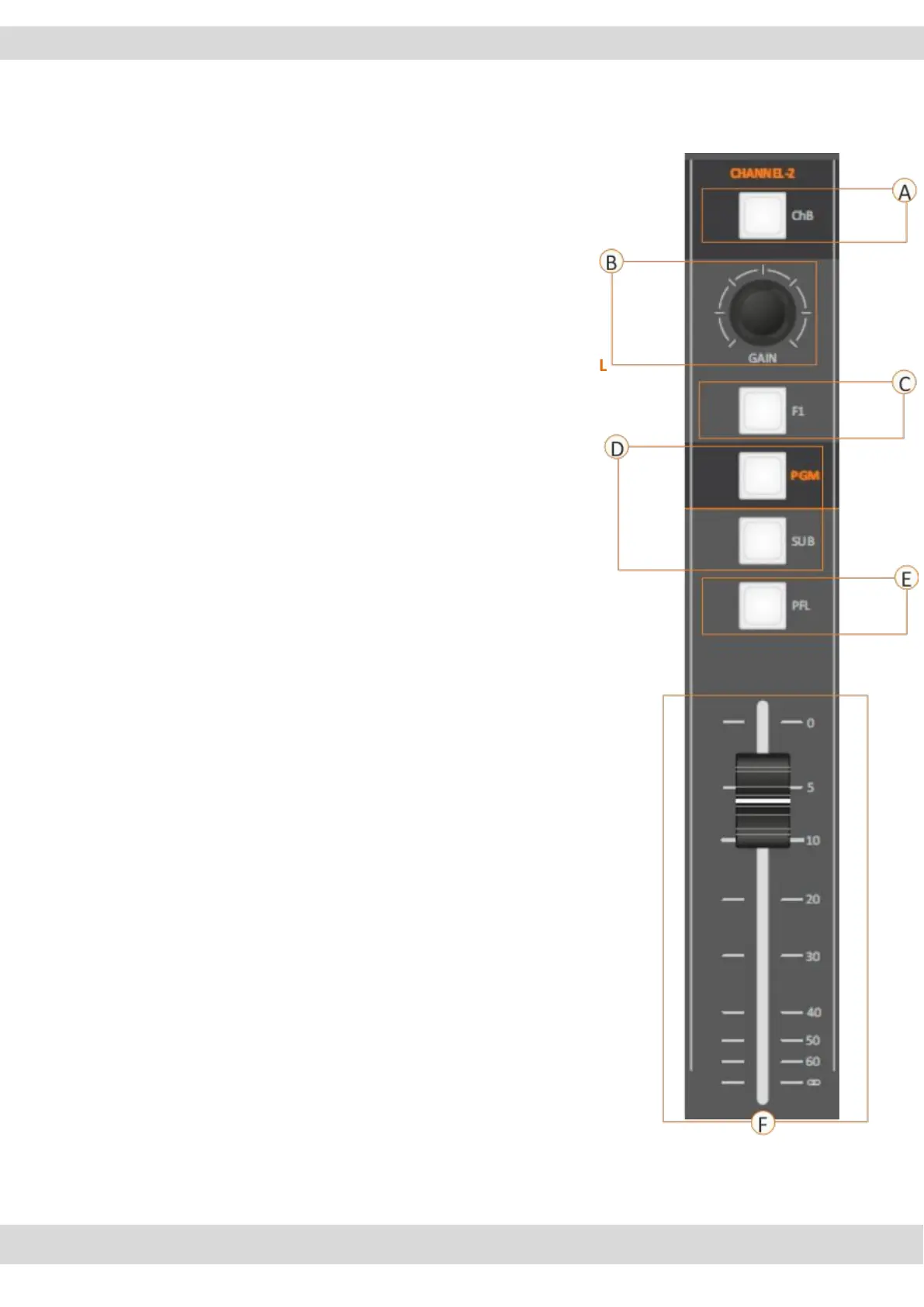

3.2.1 CHANNEL CONTROLS
A. CHB – BUTTON FOR SOURCE SWITCHING BETWEEN
PRIMARY SOURCE (CHA) AND THE SECONDARY ONE (CH B)
B. GAIN – KNOB FOR THE ADJUSTING OF THE INPUT SOURCE LEVEL
C. F1 – BUTTON FOR THE INCOMING CALL SIGNALLING AND
TO HOOK AND DROP THE CALL ON THE RELATED PHONE LINE
(TELEPHONE, TELCO OR BLUETOOTH)
D. PGM – BUTTON TO ENABLE THE PGM BUS
SUB – BUTTON TO ENABLE THE SUB BUS
E. PFL – BUTTON TO ENABLE THE PFL BUS
F. FADER – THE FADER ALLOWS THE SOURCE LEVEL ATTENUATION
