SURFACE|TALKBOX CONNECTIONS
OXYGEN 1000 & OXYGEN 2000 · User Manual · ENG

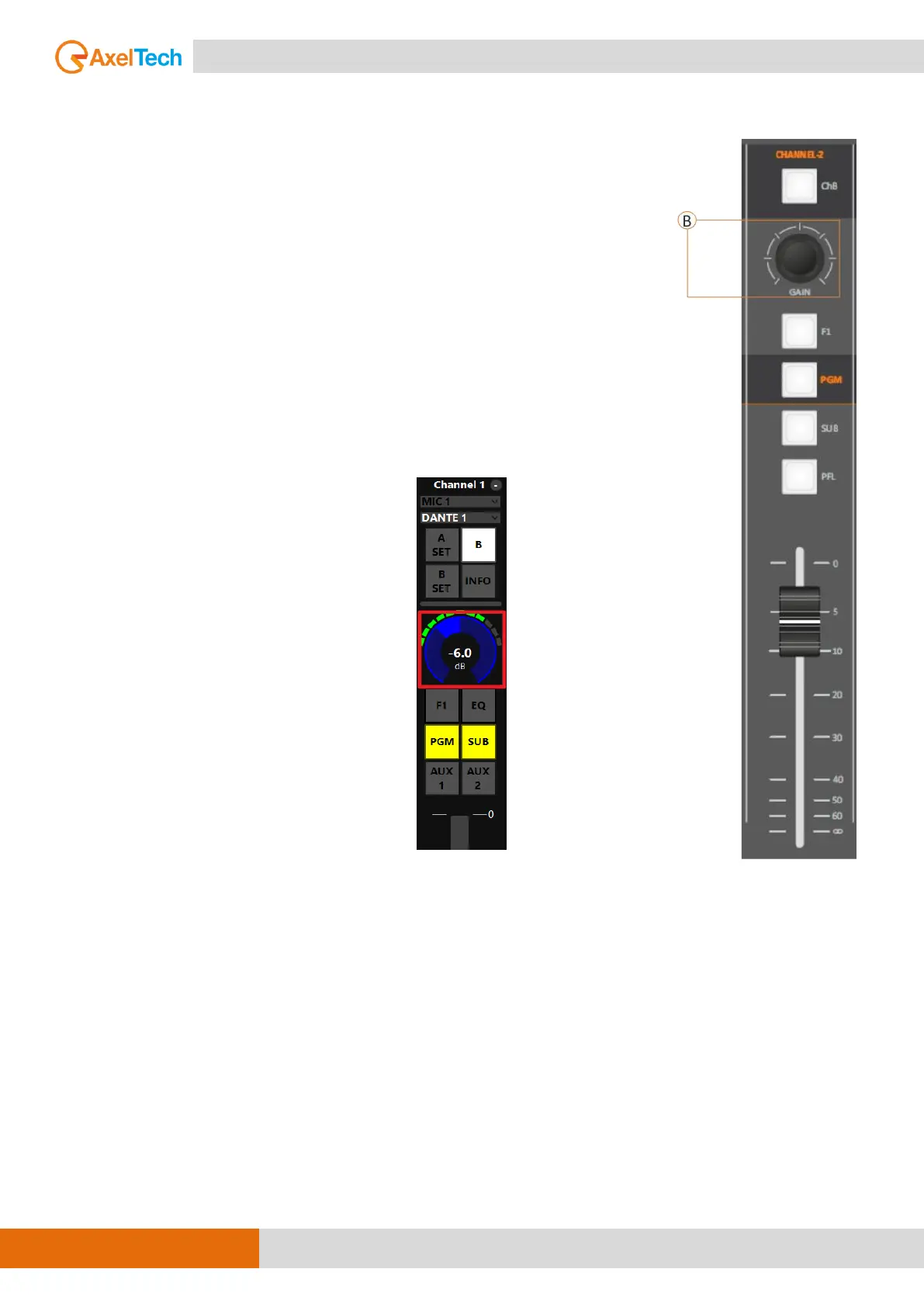

B. GAIN
The GAIN knob rotation increases or decreases the input source gain.
The GAIN value is associated with the selected source ChA/ChB, not with the
physical channel.
By switching the source, the gain is always suitable to the connected one.
The GAIN value is the latest setting is seated by the knob.
The GAIN affects the input level with +/- 20 dB.
Rotate a GAIN knob, it’s will active the SET mode and shows the setting and
GAIN level at the display.
The step of the GAIN adjustment knob is 0.1 dB.
The GAIN button functioning is possible by the following control of the
OXYGEN REMOTER:
