Axis 221 User Manual

43
AXIS 221 - The I/O Units Connectors
The I/O Units Connectors
I/O Terminal Connector
Pinout and Interface
The 10-pin I/O terminal connector provides the interface to a solid state relay output, two
digital photo-coupled inputs, RS-485, GND and auxiliary power.
The terminal connector is used in applications for e.g. motion detection, event triggering,
time lapse recording, alarm notification via email, image storage to FTP locations, etc.
• Input - used for connecting external alarm devices and triggering images for spe-
cific alarm-based events. The input is typically connected to a motion detector or
any other external security device, and images can be uploaded whenever the
detector is activated. Maximum 18V DC is allowed on the input.
• Output - can drive a maximum load of 50V DC at 100mA directly or heavier
loads by connecting additional relay circuitry. If the output is used with an exter
-
nal relay, a diode must be connected in parallel with the load for protection
against any voltage transients.
Caution!
Connecting AC to the inputs/outputs will damage the unit.

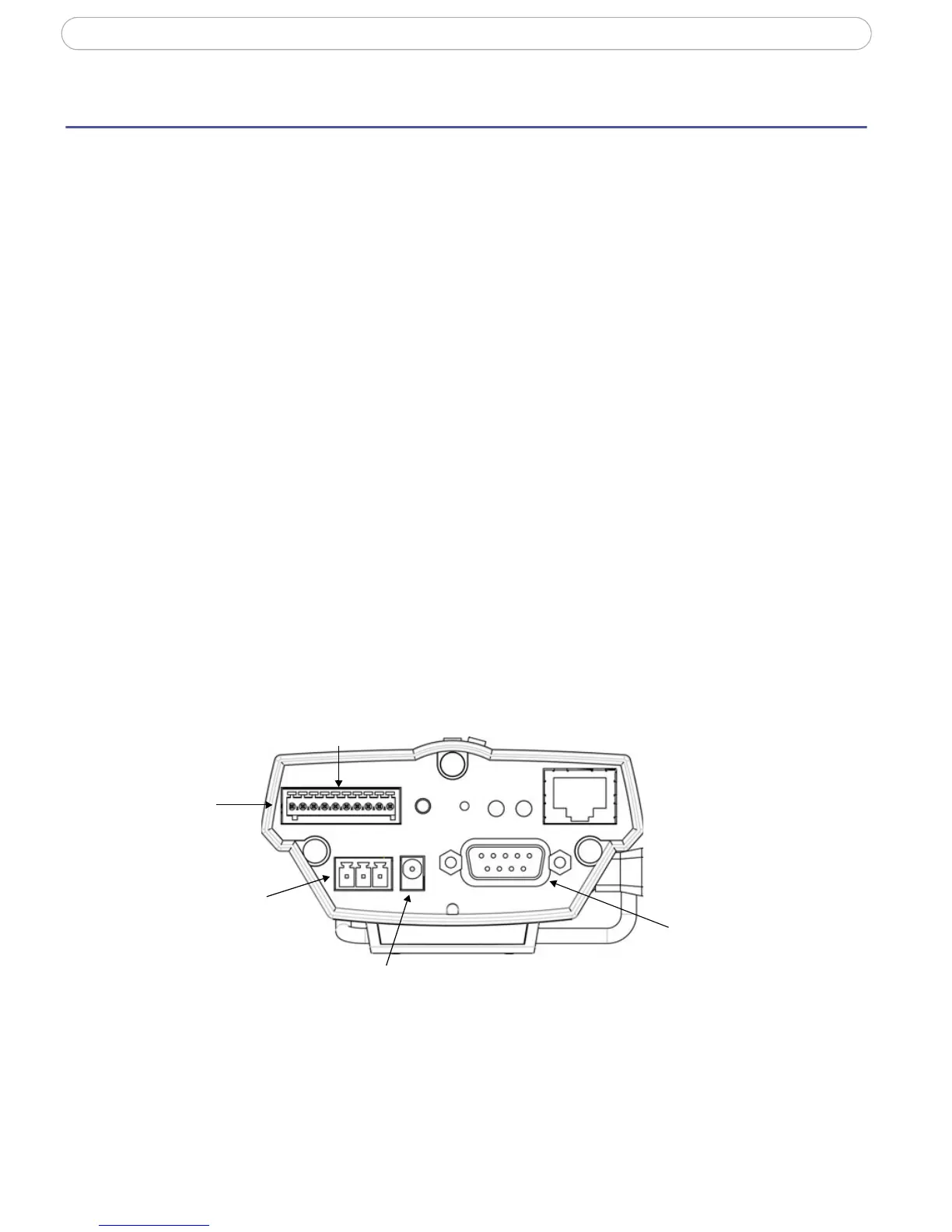

terminal
10-pin I/O
connector
12345678910
connector
Power
block
connector
Power adaptor
connector (D-sub)
RS-232
RS-485
connector

Axis 221 Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	MPEG4
Camera shutter speed	1/25000 - 2 s
Minimum illumination	0.08 lx
Sensor type	CCD
Progressive scan	Yes
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.0
Focal length range	3 - 8 mm
Built-in HDD	No
Flash memory	8 MB
Internal memory	32 MB
Type	IP security camera
Certification	EN 55022 B, EN 55024, EN 61000-3-2, EN 61000-3-3, \\r EN 61000-6-1, EN 61000-6-2, FCC 5 B B, \\r VCCI B, C-tick AS/NZS CISPR22, ICES-003 B, \\r EN 60950-1
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Bullet
Product color	Gray
Housing material	Aluminum
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
AC input voltage	24 V
Power source type	PoE
Power consumption (typical)	7.5 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Compliance industry standards	IEEE 802.3a

Weight and Dimensions

Weight	550 g
