AXIS 221 - Product Features
The AXIS 221 can be powered from the network cabling and supports Power over Ethernet
(PoE) network transformers conforming to IEEE 802.3af.

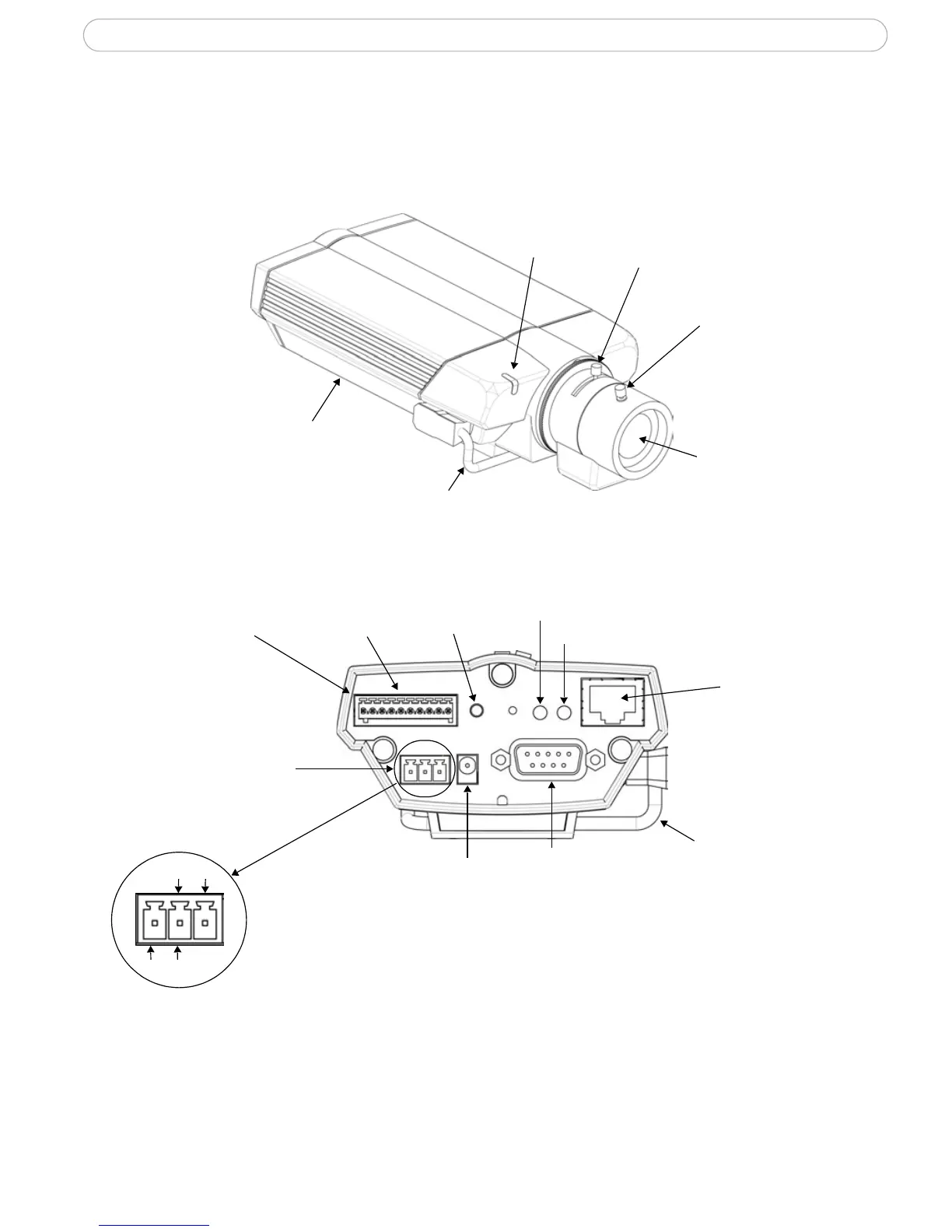

Overview
Power Adaptor Connector - For connection of the PS-K power adapter (included).
I/O Connector - The I/O terminal connector provides the physical interface to one solid
state relay output, two digital photo-coupled inputs, RS-485 and an auxiliary connection
point for DC power. For more information, see
The I/O Units Connectors, on page 43.
Status
indicator
Zoom puller
(Tele/wide)
Focus puller
DC-Iris
Serial number
on underside
label
DC-Iris control cable
Power adapter
connector
10-pin I/O terminal
connector
Power
Power indicator
Network indicator
Reset
button
connector
RS-232
connector
block
Network
(also PoE)
connector
DC-Iris control cable
AC AC
RS-485
connector
GND DC+
Connect DC power (7-24V) on pins 1 and 2.
Connect AC power (10-24V) on pins 2 and 3.
Rear panel
