AXIS 221 - Replacing the Lens
Replacing the Lens
If the lens on the AXIS 221 needs to be replaced or if the camera is sold without a lens, a
new lens can be fitted quickly and easily. Since the AXIS 221 is designed with a CS-mount,
the lens supplied with your product can be replaced with any standard C or CS lens.
Note: Although the lens supplied with your product can be directly replaced with any CS-type lens, a C-type lens must
be installed with an adaptor for it to work with your AXIS 221. An adaptor effectively moves the lens 5mm
farther from the camera.
Removing and Attaching Lens
1. Disconnect the power supply to the AXIS 221.
2. Disconnect the DC-Iris cable.
3. Unscrew the lens by turning it
anti-clockwise.
4. Screw on the new lens until it is tight
against the metal ring at the back.
5. Attach the DC-Iris cable to the camera
and reconnect the power supply.
6. To focus the new lens, see Focusing, on
page 9.
Note:
In the unlikely case that the camera images are still blurred after focusing the lens, loosen the screw on the
underside of the camera that holds the metal ring in place. Turn the metal ring in small increments until a
sharp image is obtained. Tighten the screw on the underside of the camera.

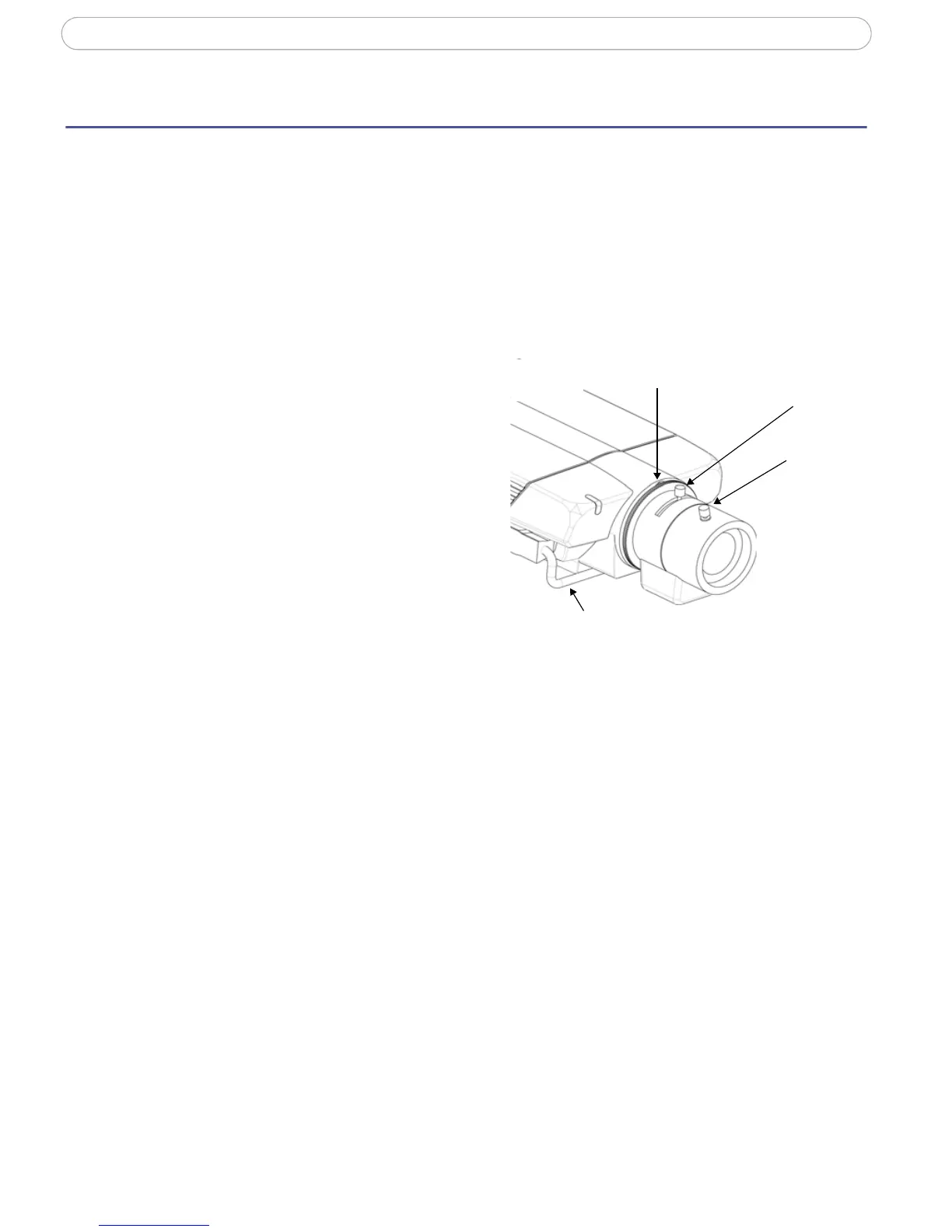

Zoom puller
(Tele/wide)
Focus puller
DC-Iris control cable
Metal ring
