Axis 221 User Manual

46
AXIS 221 - The I/O Units Connectors

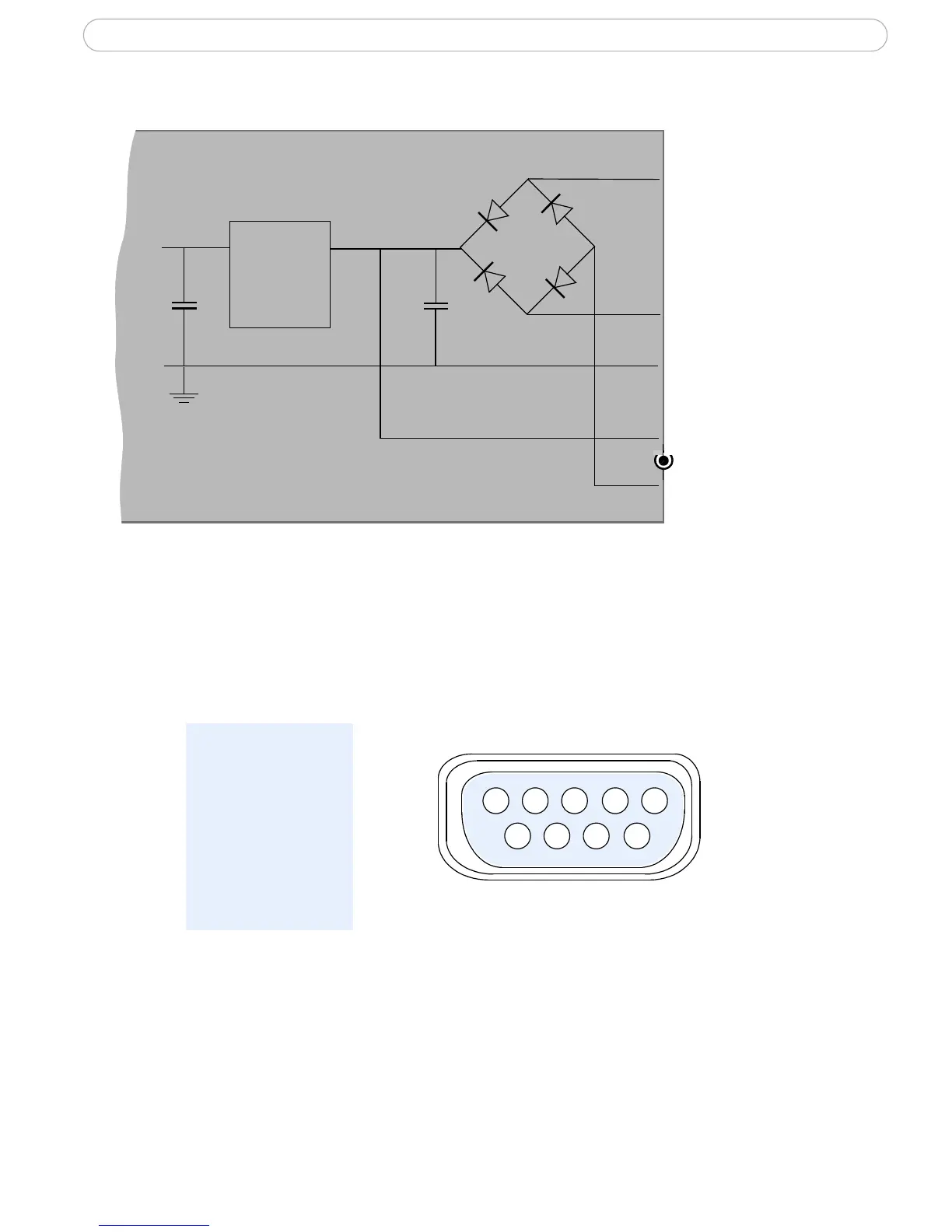

Schematic Diagram - Power Terminal Block and Power Connectors
The D-Sub Connector
The AXIS 221 provides one 9-pin D-sub connector, providing the physical interface for an
RS-232 port, used for connecting accessory equipment.
A diagram of the RS-232 connector, complete with pin assignment table, is shown below.
Pin Function
1 CD
2 - RXD
3 - TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
3
2
o
o
Mode
Power
Supply
3.3V
z
z
zz
z
z
z
z
z
z
o
o
Internal
~
Switch
o
z
GND
AC
1
AC/DC+
GND/DC-
=
+
-
Axis Power Supply
PS-K 9V max 9W or
according to parts list
54321
6789

Axis 221 Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	MPEG4
Camera shutter speed	1/25000 - 2 s
Minimum illumination	0.08 lx
Sensor type	CCD
Progressive scan	Yes
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.0
Focal length range	3 - 8 mm
Built-in HDD	No
Flash memory	8 MB
Internal memory	32 MB
Type	IP security camera
Certification	EN 55022 B, EN 55024, EN 61000-3-2, EN 61000-3-3, \\r EN 61000-6-1, EN 61000-6-2, FCC 5 B B, \\r VCCI B, C-tick AS/NZS CISPR22, ICES-003 B, \\r EN 60950-1
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Bullet
Product color	Gray
Housing material	Aluminum
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
AC input voltage	24 V
Power source type	PoE
Power consumption (typical)	7.5 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Compliance industry standards	IEEE 802.3a

Weight and Dimensions

Weight	550 g
