Axis A1001 Installation Guide

AXISA1001NetworkDoorController
1

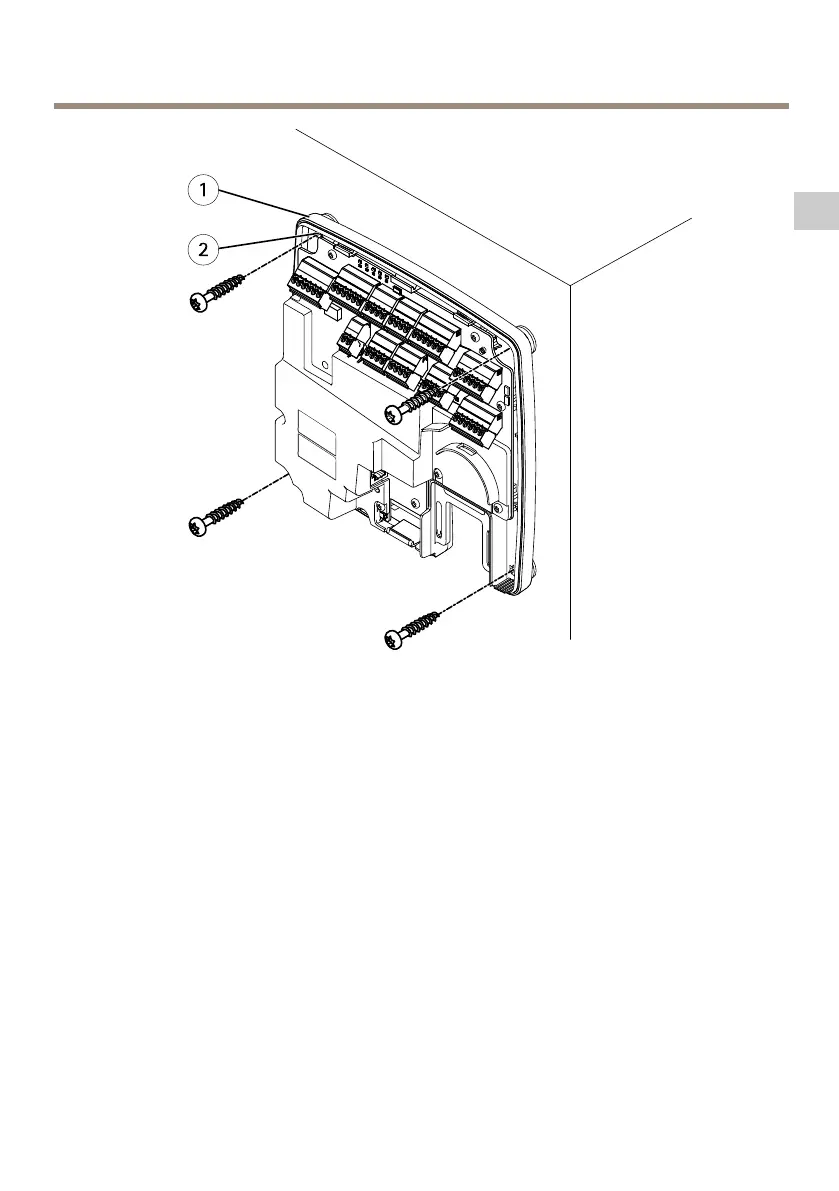

Base
2
Screwhole(4x)
6.Connectthecables.Seepage32.
DINRailMount
1.Ifrequired,installaDINrail(notincluded).
2.Ifrequired,removethecoverscrew,insertaslottedscrewdriverintothecoverremoval
slotandremovethecover.SeeHardwareoverviewonpage14.
3.HookthelowerDINclip,whichisexible,ontothebottomoftheDINrail,tiltingthe
baseslightlyforwards.
4.LiftthebasesothatthelowerDINclipreachesitsbottommostposition.
5.Tiltthebasebackwardssothatitisparalleltothewall/ceiling.
6.HooktheupperDINclipontothetopoftheDINrailbyloweringthebase.
31
EN

Axis A1001 Specifications

General

Interface	RS-485
Built-in UPS	-
Maximum number of doors	2 door(s)
DC voltage range	10 - 30 V
Power consumption (typical)	26 W

Weight and Dimensions

Depth	45.3 mm
Width	180 mm
Weight	500 g
