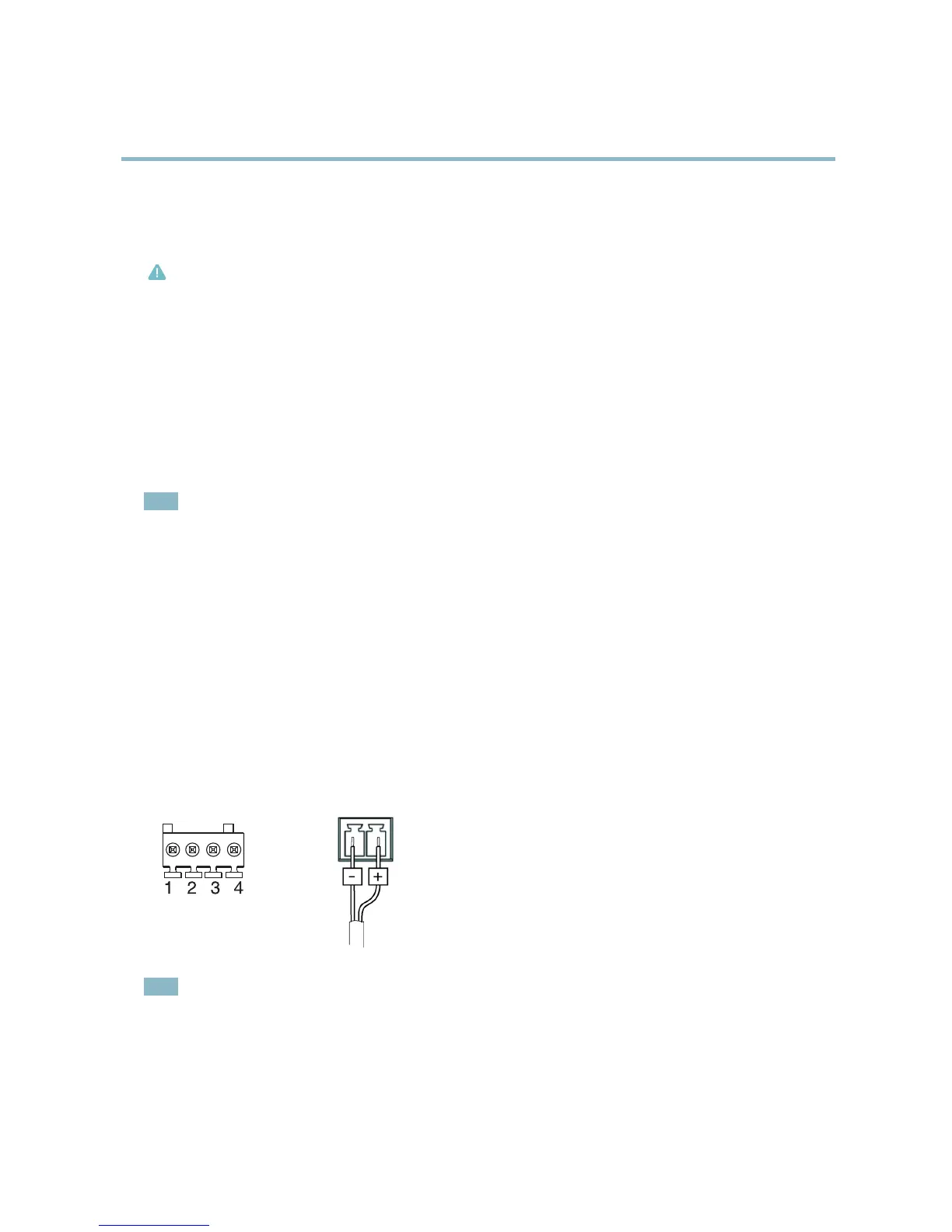

AXIS P1346 Network Camera
Hardware overview
Connectors
Network connector - RJ-45 Ethernet connector. Supports Power over Ethernet (PoE).
Caution
Due to local regulations or the envir onme n tal and electrical conditions in which the product is to be used, a shielded
network cable (STP) may be appropriate or required. Any network cables that a re routed in o u tdoor environments or similar
shall be shielded (STP) and intended for their specic use. Make sure that the network switch is properly grounded. See
Electromagnetic Compatibility (EMC) for regulatory requirements.
Audio in (pink) - 3.5 mm input for a m ono microphone, or a line-in mono signal (left channel is used from a stereo signal).
Audio out (green) - 3.5 mm output for audio (line level) that can be connected to a public address (PA) system o r an active speaker
with a built-in ampli er. A stereo connector must be used for the audio out.
SD card slot - A standard or high-capacity SD card (not included) can be used for local recording with r emo vable storage. For
instructions on how to insert and remove an SD card, p lease refer to the Installation Guide.
Note
Before removal, the SD card should be unmounted to preven t corruption of recordings. To unmount the SD card, go to Setup
>SystemOptions>Storage>SDCardand click Unm ount.
Control button - The control button is used for:
E nabling the Focus Assistant. Press and very quickly release the Control button.
ConnectingtoanAXISVideoHostingSystemservice.Seepage 44. To connect, press and hold the button for about
1 second until the Status LED ashes green.
ConnectingtoAXISInternetDynamicDNSService. Seepage 44. To connect, press and hold the button for
about 3 seconds.
R esetting the product to factory default settings. See page 50.
Power connector - 2-pin terminal block for power input.
I/O connector
DC power input
Note
For technical specications, see page 56.
I/O terminal connector - Use in a pplica t ions for e.g. motion detection, event triggering, time lapse recording and alarm notications.
In addition to an auxiliary power and a GND pin, the I/O terminal connector provides the interface to:
6
