Axis P1347 User Manual

AXIS P1347 Network Camera
Hardware overview
Connectors
Network connector - RJ-45 Ethernet connector. Supports Power over Ethernet (PoE).
Caution
Due to local regulations or the environmen tal and electrical conditions in which the product is to be used, a shie lded
network cable (STP) may be appropriate or required. Any network cables that are routed in outdoor environments or similar
shall be shielded (STP) and intended for their specific use. Make sure that the network switch is properly grounded. See
Electromagnetic Compatibility (EMC) for regulatory requirements.
Audio in (pink) - 3.5 mm input for a mono microphone, or a line-in mono signal (left channel is used from a stereo signal).
Audio out (green) - 3.5 mm output for audio (line level) that can be connected to a public address (PA) system or an active speaker
with a built-in amplifier. A stereo connector must be used for the audio out.
SD card slot - A standard or high-capacity SD card (not included) can be used for local recording with removable storage. For
instructions on how to insert and remove an SD card, please refer to the Installation Guide.
Note
Before removal, the SD card should be unmounted to prevent corruption of recordings. To unmount the SD card, go to Setup
>SystemOptions>Storage>SDCardand cli ck Unmount.
Control button - The control button is used for:
• Enabling the Focus Assistant. Press and very quickly release the Control button.
• ConnectingtoanAXISVideoHostingSystemservice.Seepage 44. To connect, p ress and hold the button for about
1 second until the Status LED flashes gr een.
• ConnectingtoAXISInternetDynamicDNSService. Seepage 44. To connect, press and hold the button for
about 3 seconds.
• Resetting the product to factory default settings. See page 50.

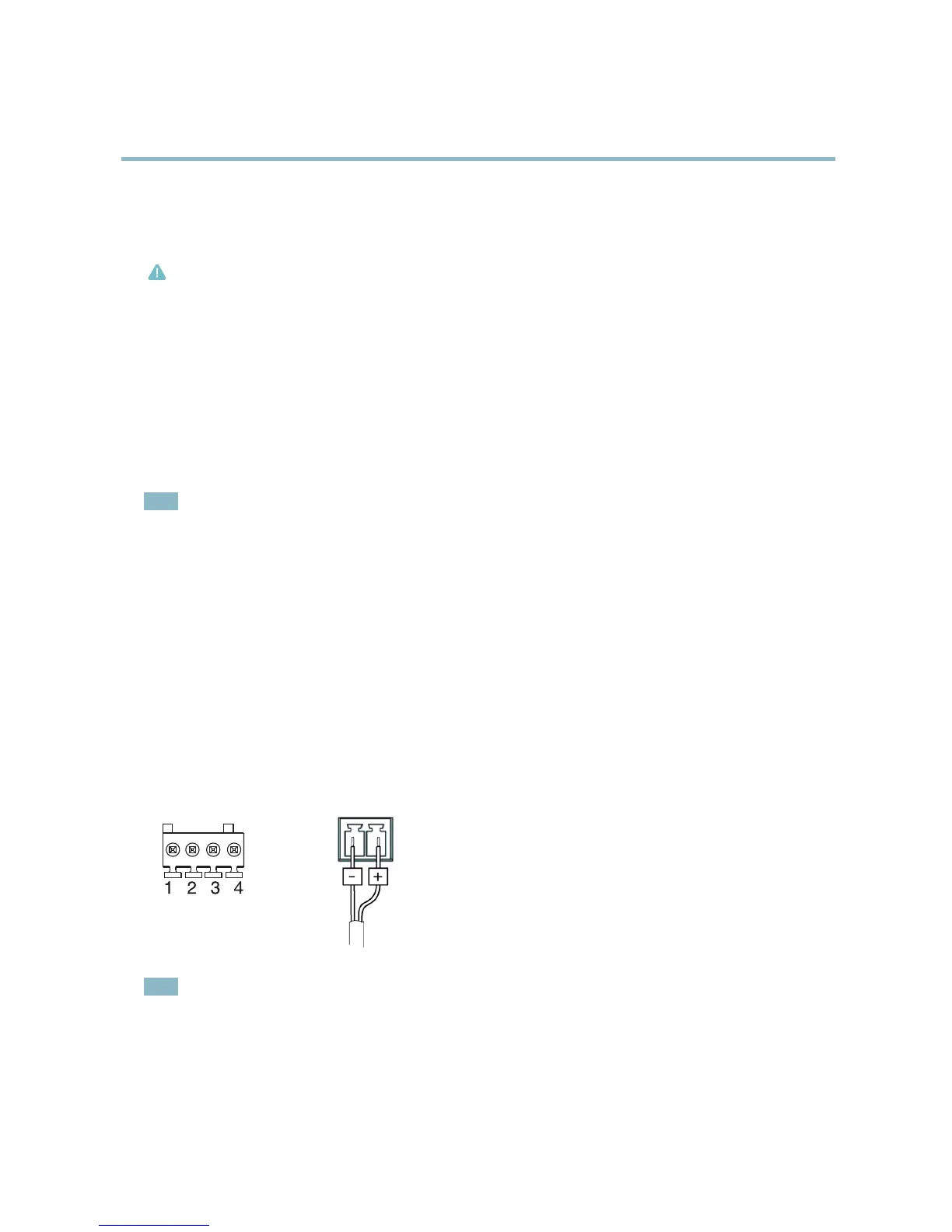

Power connector - 2-pin terminal block for power input.
I/O connector
DC power input
Note
For technical specifications, see page 56.
I/O terminal connector - Use in applications for e.g. motion dete ction, event triggering, time lapse recording and alarm notifications.
In addition to an auxiliary power and a GND pin, the I/O terminal connector provides the interface to:
6

Axis P1347 Specifications

General

Maximum resolution	2560 x 1920 pixels
Video formats supported	H.264
Camera shutter speed	1/25500 - 1/6 s
Minimum illumination	0.5 lx
Sensor type	CMOS
Optical sensor size	1/2.5 \
Focal length range	3.5 - 10 mm
Video motion detection	Yes
Sample rate	16 kHz
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Power source type	PoE
Power consumption (typical)	0.9 W
Dimensions (WxDxH)	78 x 151 x 46 mm
Processor model	ARTPEC-3
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	SD, SDHC
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	3100 g
