AXIS P1347 Network Camera
Accessing the product
Note
• The default administrator user name root is permanent and cannot be deleted.
• If the password for r oot is lost, the product must be reset to the factory default settings. See Reset to factory default
settings, on page 50.
Configure capture mode
Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. The capture mode setting also
affects the camera’s angle of v ie w; if using a capture mode with a smaller maximum resolution, the angle of view is reduced.
Select the desired capture mode from the drop-down list and click OK.
See also Capture Mode, on page 21.

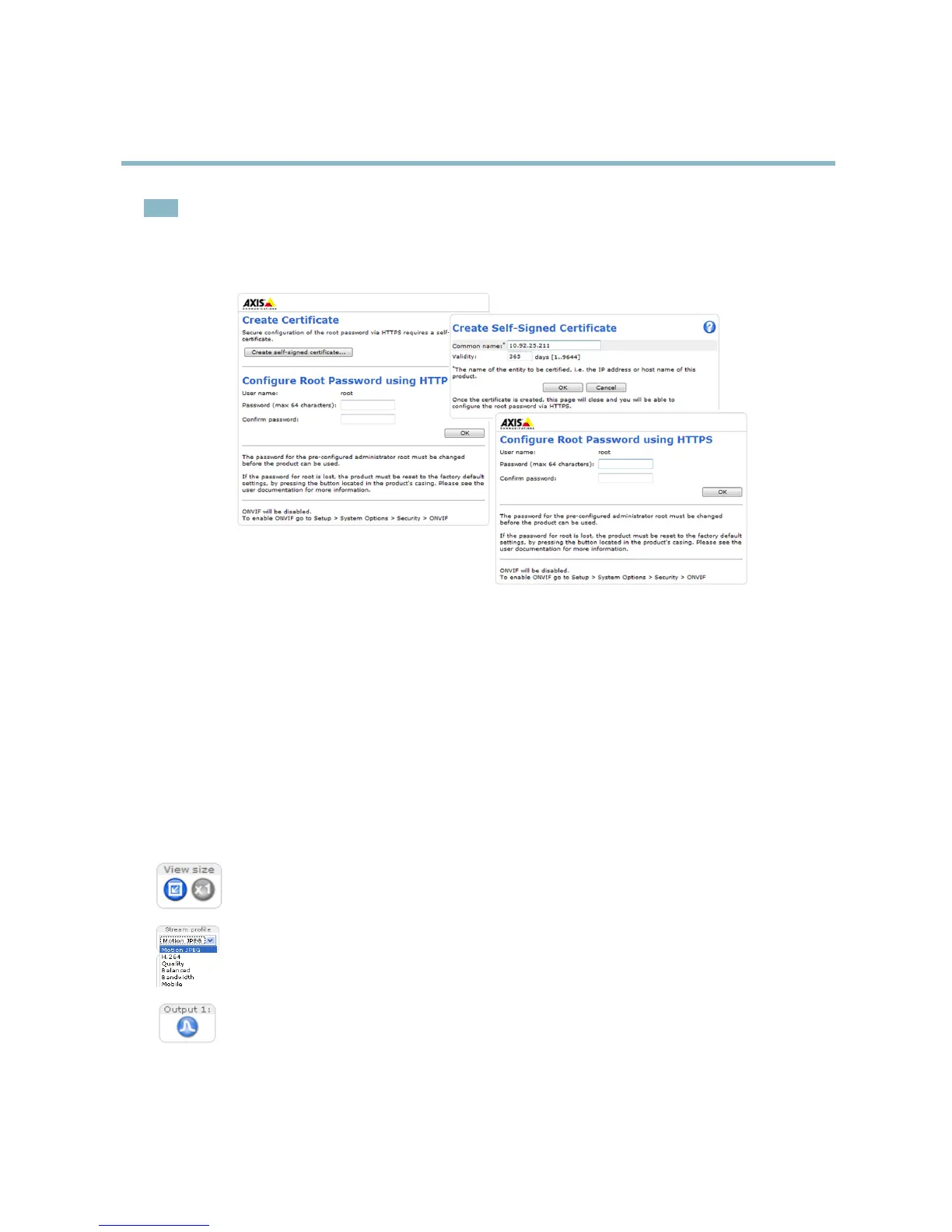

The Live View page
If the Axis product has been customized to meet specific requir ements, not all the items des cribe d below will appear in the Live View
page. The following provides an overview of each availabl e button.
Controls on the Live View page
Click View size to scale the image down to 800 pixels wide or to full scale. Only available i n MJPEG.
The Stream Profile drop-down list allows you to select a customized or pre-programmed stream profile. Stream
profiles are configured under Video & Audio > Stream Profiles.SeeStream Profiles, on page 20.
Click Pulse to activate the output for a defined period of time, such as switching on an external light for 20 seconds.
12
