AXIS Q19 Series Installation Guide Page 11
ENGLISH
Install the hardware
For outdoor use, please install AXIS Q1910-E/Q1921-E/Q1922-E, or see www.axis.com for more
information on outdoor housing and other accessories.
Install AXIS Q1910/Q1921/Q1922
The instructions below describe the installation of AXIS Q1910/Q1921/Q1922.
1. Attach the metal stand to the camera and make sure that the screws and plugs are appropriate
for the material (e.g. wood, metal, sheet rock, stone).
2. Connect the cables, see Connect the cables, on page 13.
Install AXIS Q1910-E/Q1921-E/Q1922-E
The instructions below describe the installation of AXIS Q1910-E/Q1921-E/Q1922-E.
Install the wall bracket
1. Use the supplied drill template to prepare a wall for installation of the wall bracket.
2. Route the network cable through the wall bracket and the bracket adapter. Leave
approximately 30 cm (11.8”) of cable for connecting the camera.
3. Install the wall bracket on a wall and make sure that the screws and plugs are appropriate for
the material (e.g. wood, metal, sheet rock, stone).
Notes:
• Check that the material is strong enough to support the weight of the camera.
• For more technical specifications, please see the User Manual, available on the CD included in this
package, or from www.axis.com

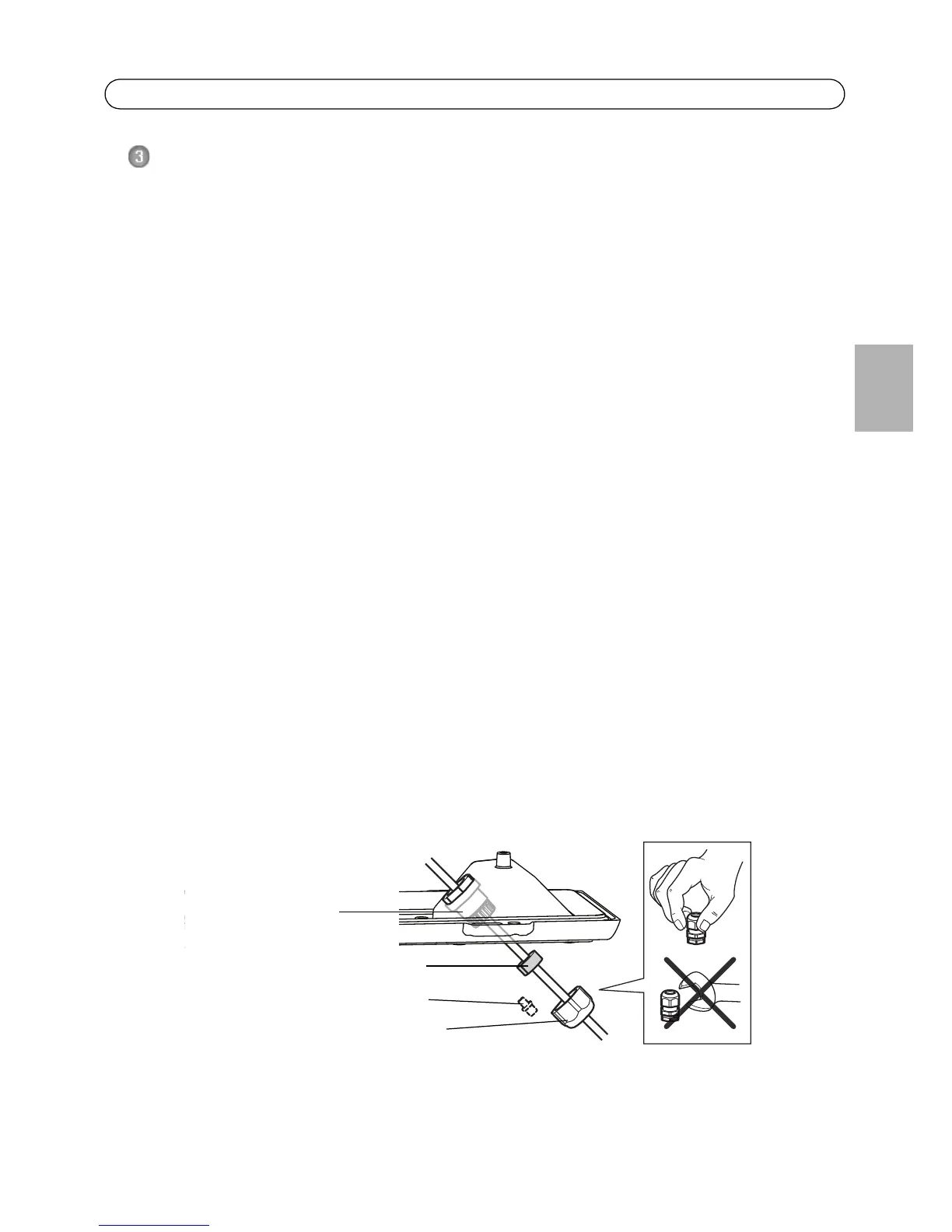

Route the network cable through the cable hole
1. Loosen the cable cover screws; detach the cable cover from the bottom cover.
2. Remove the cap, the plug and the gasket from the cable gland that is to be used.
3. Route the network cable through the cap.
4. Slide the network cable through the slit on the gasket to attach the gasket to the network
cable. See Unit connectors, on page 8 for information on network cable requirements.
