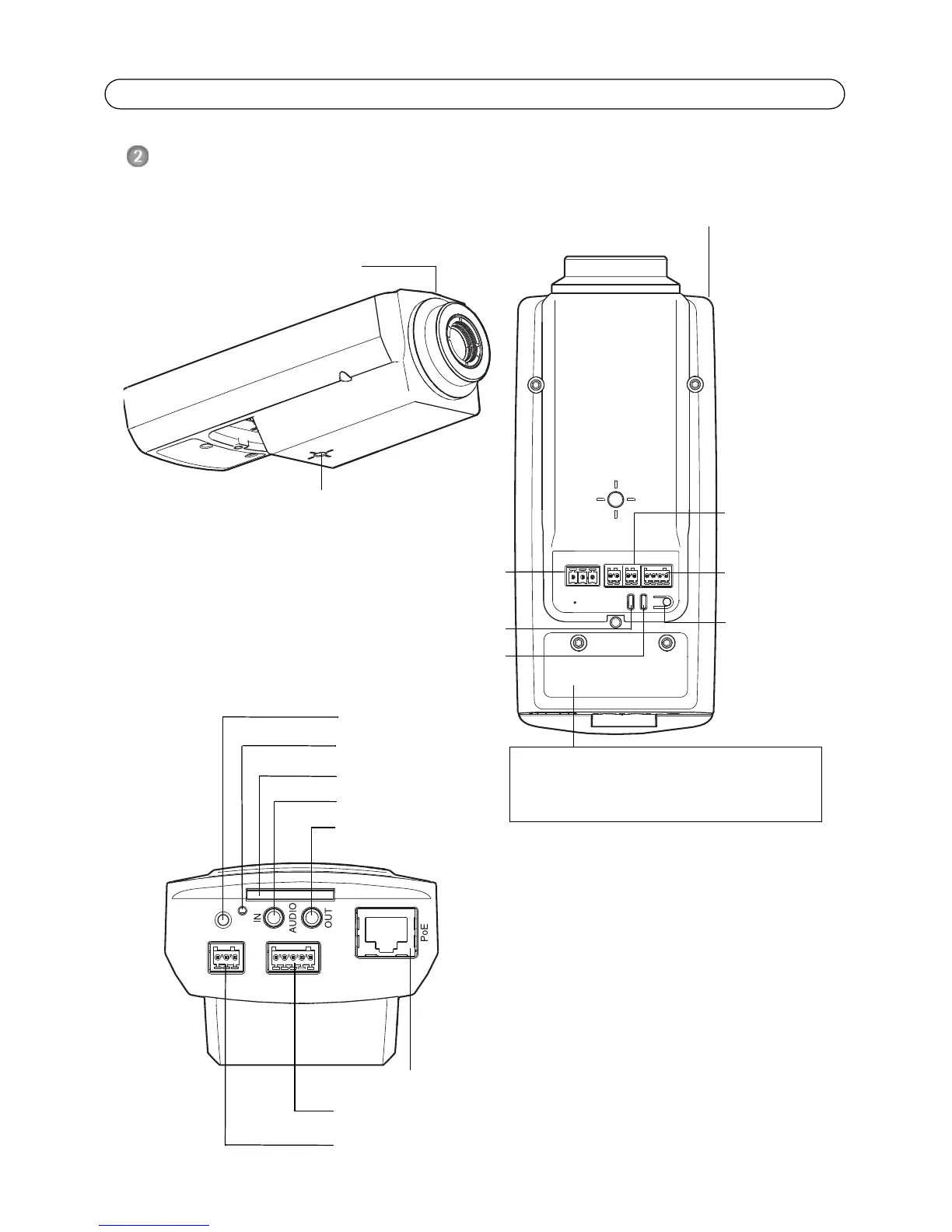

Hardware overview
Part number (P/N) & Serial number (S/N).
The serial number may be required
during the installation.
Connector (not used)
Button (not used)
1/4” screw mount for
wall/ceiling stand
Window heater connector
LED (not used)
Status indicator LED
Network connector
Audio in
Audio out
SD card slot
Power connector
Power indicator LED
Network indicator LED
Control
button
I/O terminal
connector
RS-485/422
connector
Microphone
AXIS Q1910/-E/Q1921/-E/Q1922/-E
Rear view
Bottom view
Side view
Example image: AXIS Q1910
(AXIS Q1910/Q1921/Q1922
only)
