Azbil AVP201 User Manual

1-7
Chapter 1: Control System Structure
1.4 Terminal Box
Houses an input signal (controller output) terminal, an output signal (travel transmis-
sion) terminal, and an internal ground terminal.

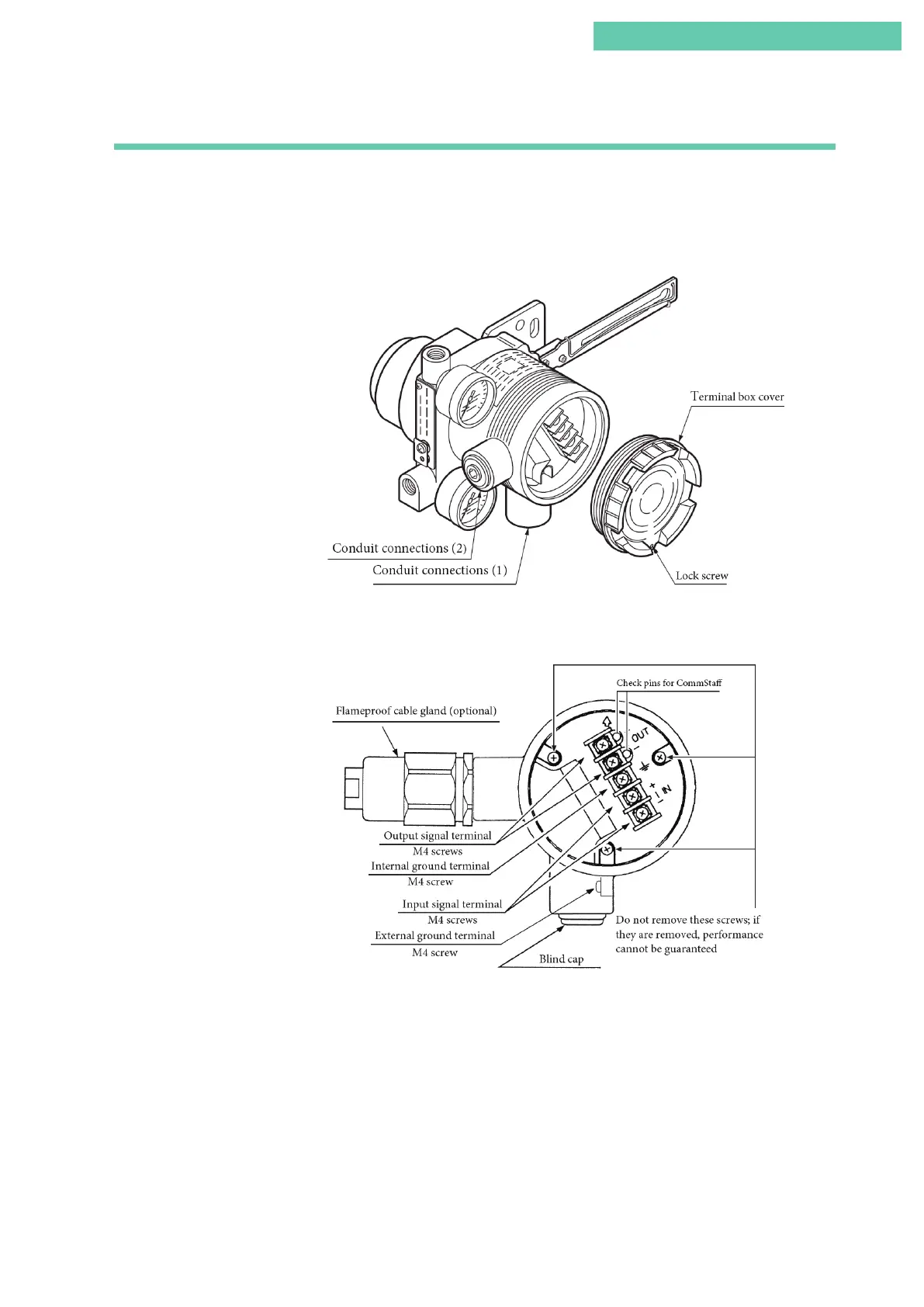

The structure of the terminal box is shown below.
Figure 1-6. Structure of Terminal Box
Figure 1-7. Terminal Block of Terminal Box
