Chapter 4: Communication-Based Operation

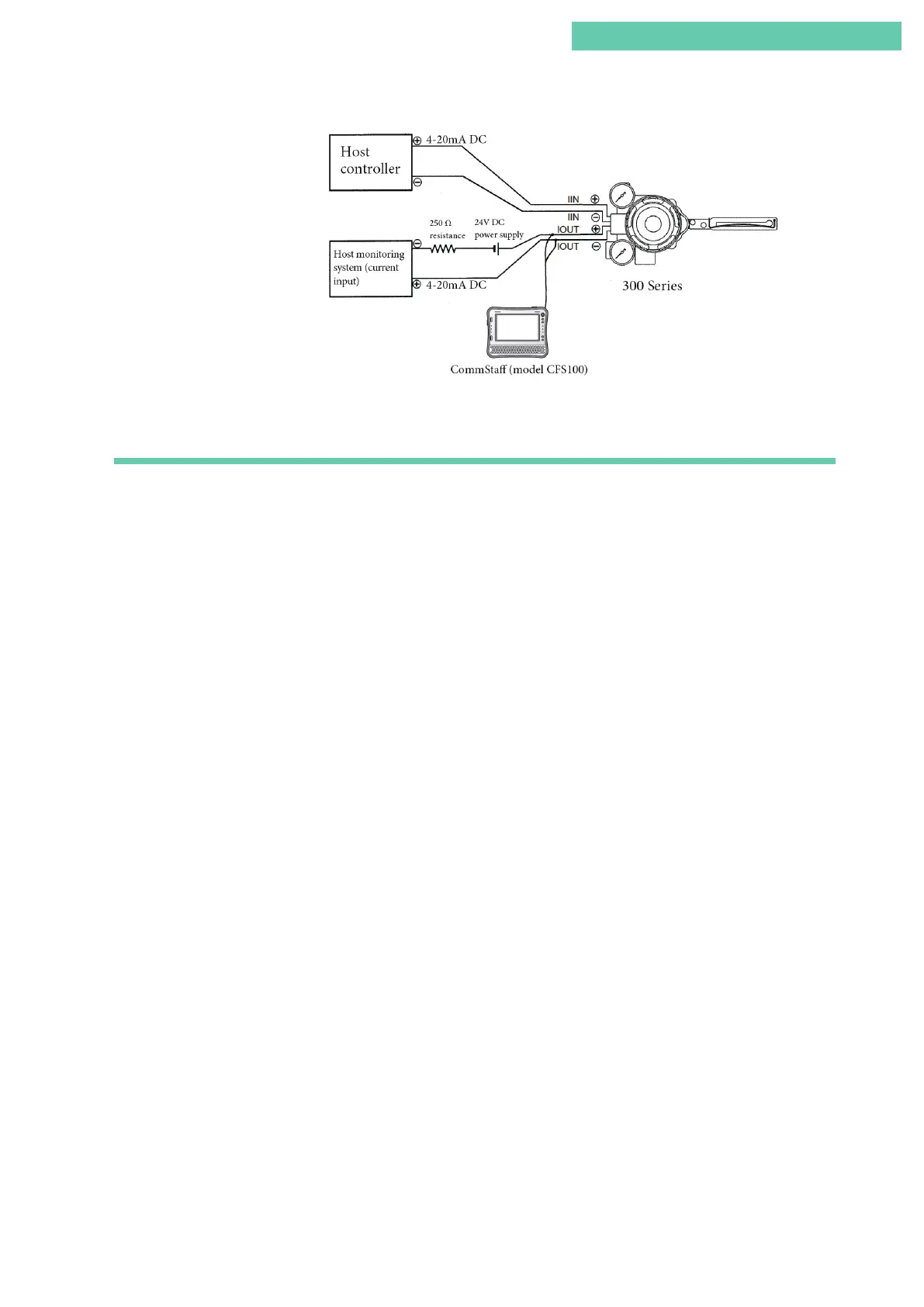

Figure 4-3. Using the Travel Transmission Function (Model AVP301/201)
4.2 Communication-Based Operation
Operations such as adjustment and configuration of the device and reading on the
device will now be described with reference to the menus of the CommStaff CFS100
model field communication software. Regarding operating methods, see the CommStaff
Smart Positioner Edition Operating Manual (No. CM2-CFS100-2010).
By communicating with this device, the following can be performed.
• 4.3 Operation Data Confirmation
4.3.1 Measured value confirmation
4.3.2 Adjustment data confirmation
• 4.4 Device Configuration and Adjustment
4.4.1 Auto-setup
4.4.2 Zero/span adjustment
4.4.3 Control valve system configuration
4.4.4 Control parameter configuration
4.4.5 Input signal range configuration
4.4.6 Flow rate characteristics configuration
4.4.7 Forced fully open/closed setting
• 4.5 Device Information Confirmation and Modification
4.5.1 Device information/production number confirmation and modification
4.5.2 Device software revision information confirmation
• 4.6 Maintenance
4.6.1 Mode modification
4.6.2 Input signal calibration
4.6.3 Dummy input signal
4.6.4 Dummy EPM drive signal
4.6.5 Configuration data saving
4.6.6 Saved configuration data retrieval
• 4.7 Valve Diagnostic Parameter Configuration
• 4.8 Self-diagnostics
