2-22
2.4 Flameproof Cable Gland and Explosion-proof Universal Elbow
■ Introduction
If the TIIS flameproof model has been purchased, it will be delivered with the flame-
proof cable gland included.
The flameproof cable gland is used to seal the end of the cable, ensuring explosion-
proof performance and improving insulation performance and mechanical strength.
When using it, if the orientation of the cable needs to be changed, use the flameproof
elbow.
■ Structure of flameproof cable gland for use at 300 series

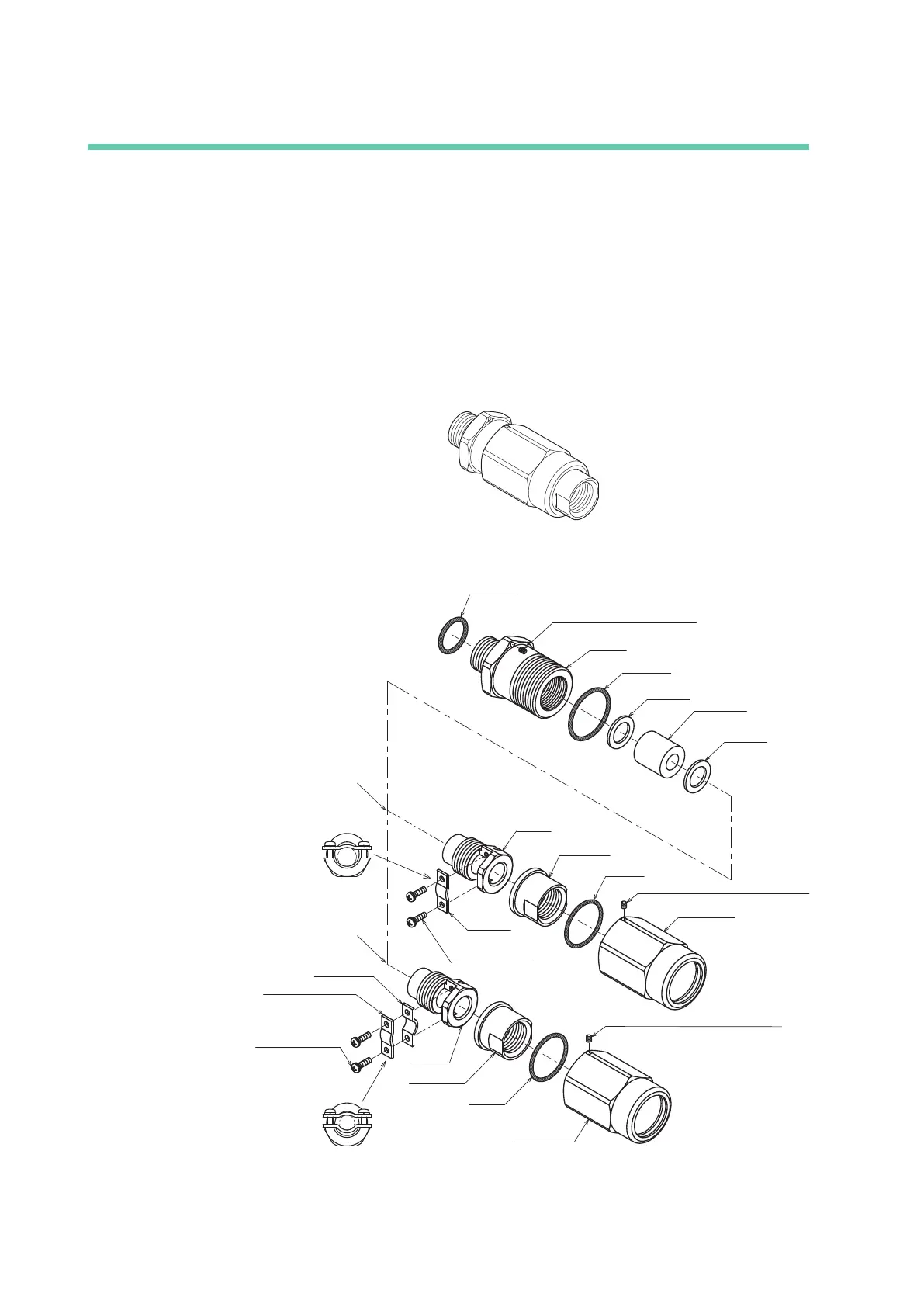

Figure 2-22. Flameproof Cable Gland Full View
Body
O-ring
Washer
Washer
Sealing ring
Union nut
O-ring
Coupling
Gland
Cross recessed
head screws
O-ring
Clamp
(Upper)
Coupling
Union nut
Gland
Hexa-recess stopper screw (Two)
Hexa-recess stopper screw (Two)
Hexa-recess stopper screw
Cable diameter ≥ 8mm
Cable diameter ≤ 8mm
Clamp
(Lower)
Clamp
(Upper)
Cross recessed
head screws
Figure 2-23. Flameproof Cable Gland Exploded View
