2-23
Chapter 2: Installation
■
Structure of flamepro
of cable gland for use at 200 series main
par
t

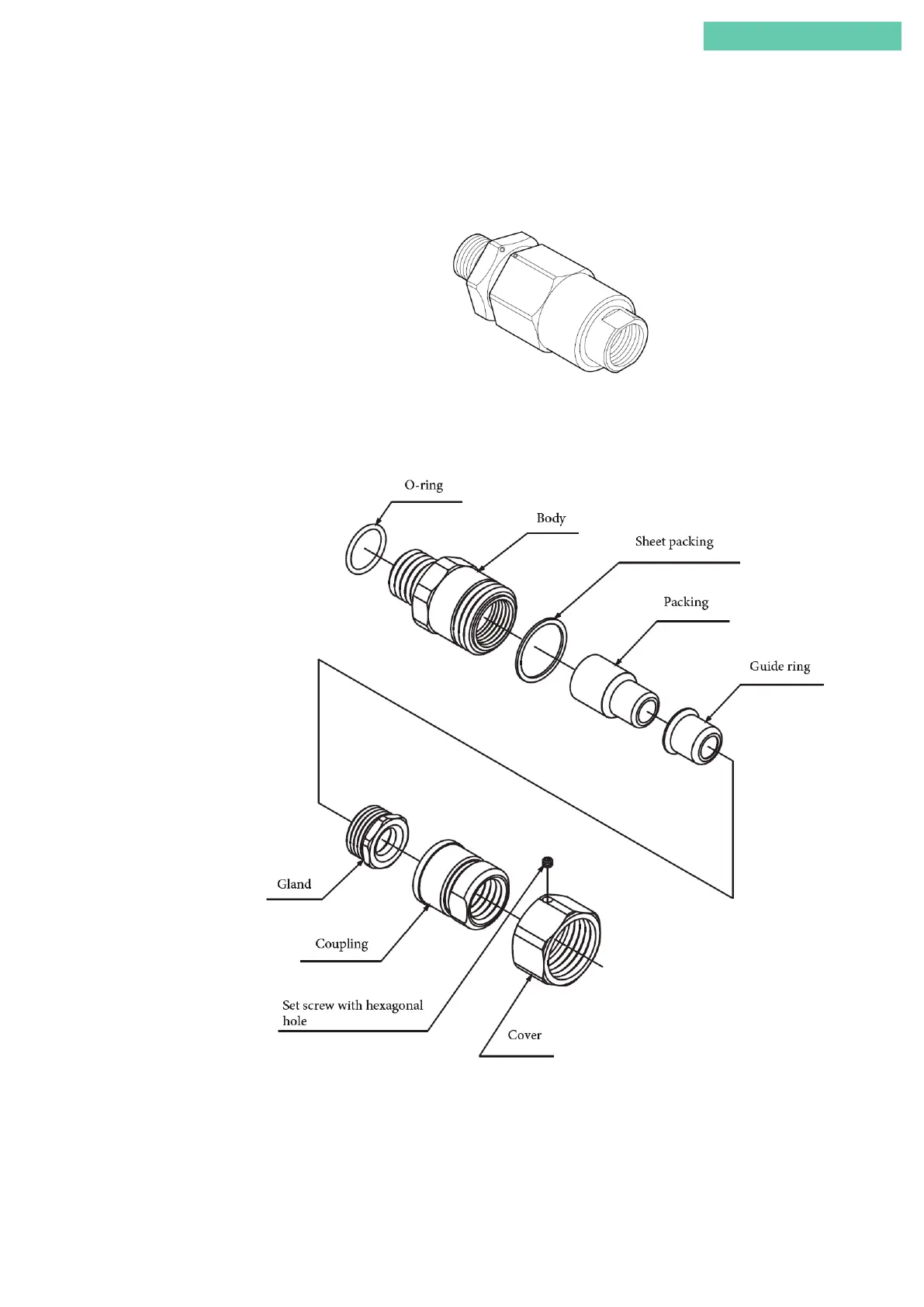

A full vie
w and exploded view of the flameproo
f cable gland ar
e shown below
.
Figur
e 2-24. Flameproof C
able Gland Full
View
Figur
e 2-25. Flameproof C
able Gland Exploded V
iew
60
62
