2-14
■ Systems that use a position signal (four-line connection)
Detach the terminal box cover, and wire as shown in the diagram below.

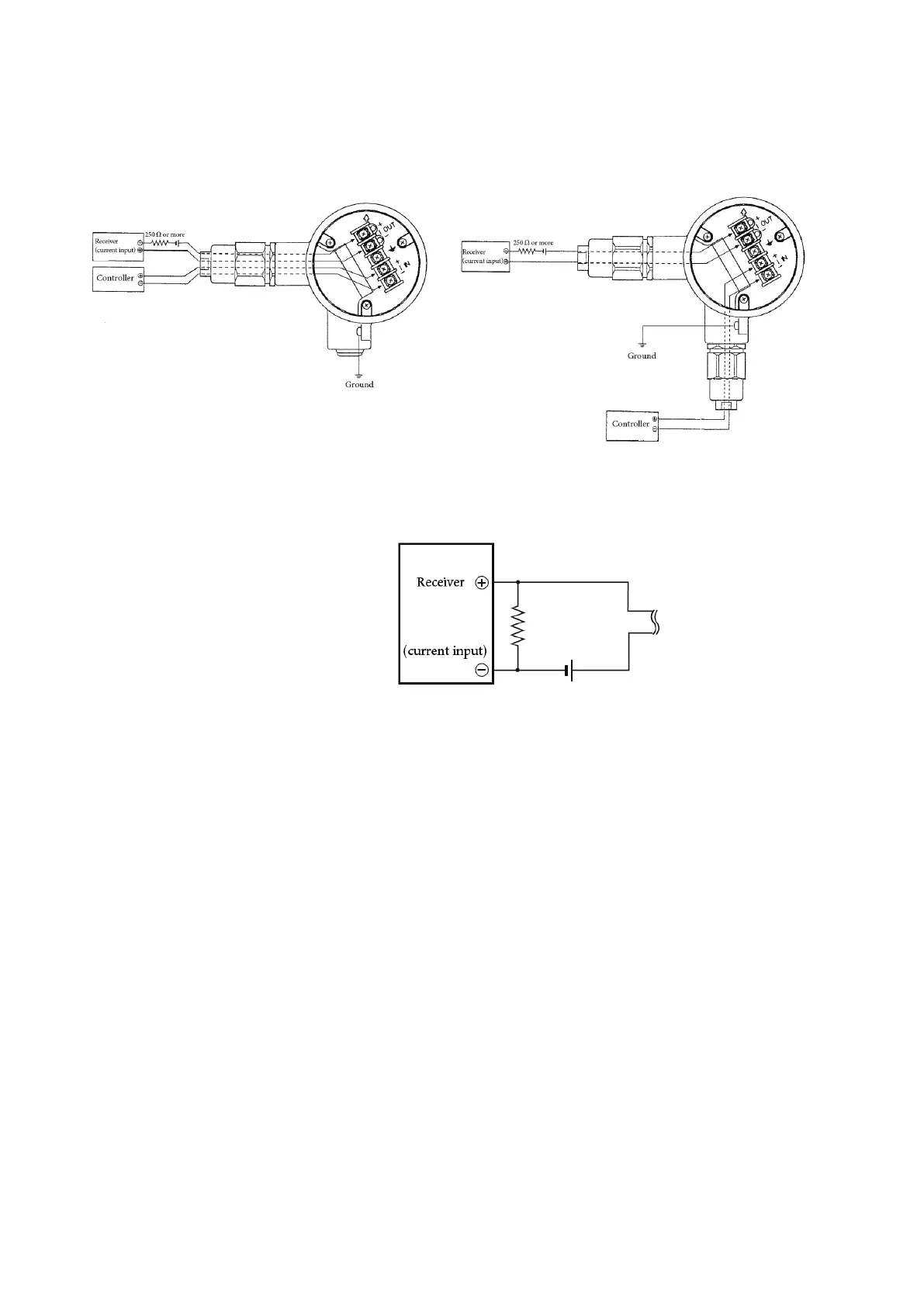

Figure 2-15-1. Wiring for Systems Using a Position Signal
(Four-Line Cable)
Figure 2-15-2. Wiring for Systems Using a Position Signal
(Two-Line Cable)
• If the receiver is a voltage input (1 to 5 V) device, use the wiring below.
Figure 2-15-3. Wiring if Receiver is Voltage Input Device
• Be sure to use either the internal or external ground terminal, following local elec-
trical work guidelines when performing installation work.
To Next Page
