Azbil HLS Series User Manual

4-33

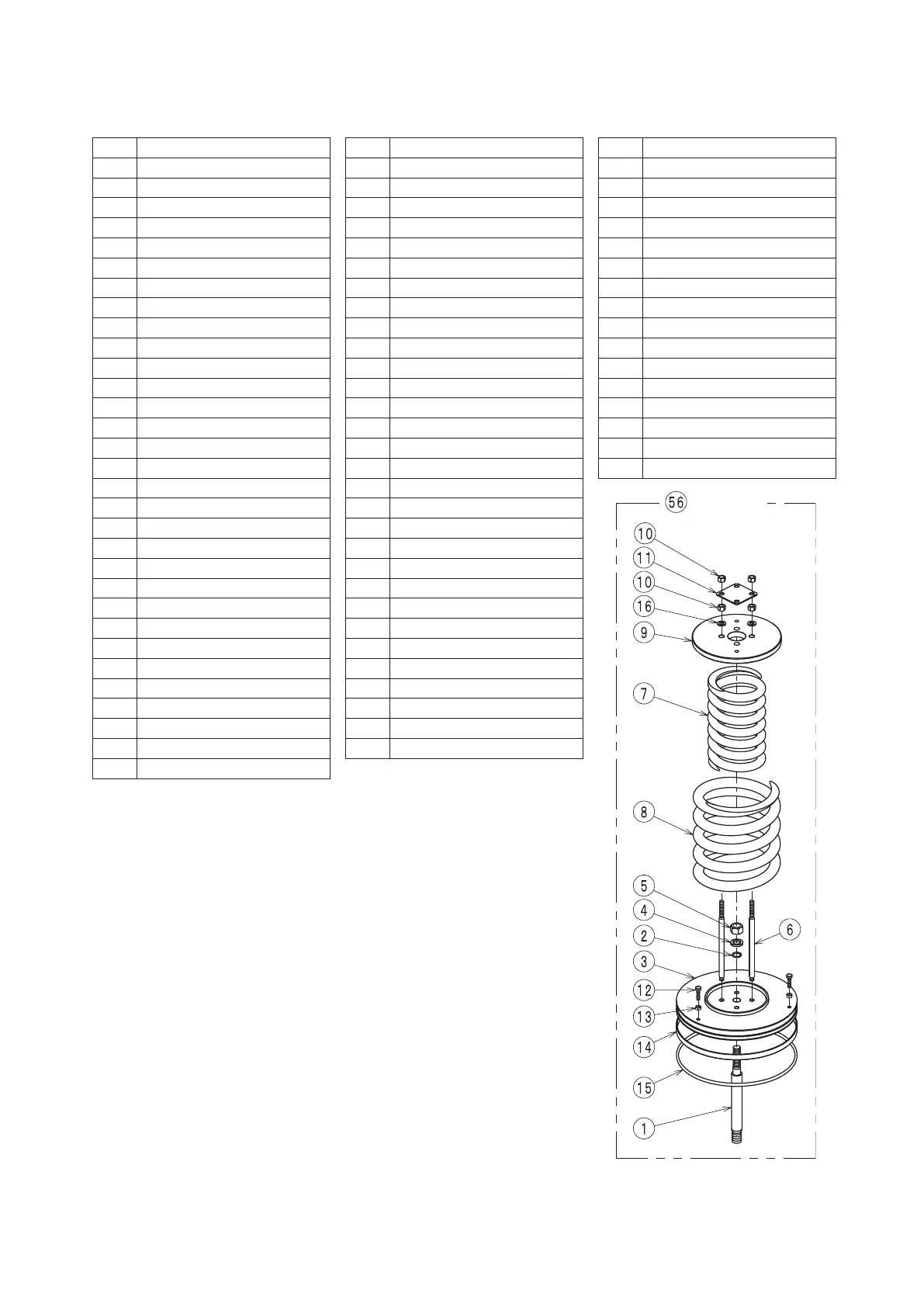

Table 4-7. Parts reference list
No. Parts description No. Parts description No. Parts description
1 Eye Nut 32 Slide Screw 1 Rod
2 Hex Nut 33 Bushing 2 O-Ring
3 Spring Washer 34 Dust Seal 3 Piston
4 Hex Stay(Long) 35 Tape Liner 4 Spring Washer
5 O-Ring 36 Slide Screw Rotation Stopper 5 Locking Nut
6 Hex Bolt 37 Hex Bolt 6 Stopper
7 Seal Washer 38 Seal Washer 7 Spring (Small)
8 Spring Washer 39 Truss Screw 8 Spring (Large)
9 Hex Bolt 40 Indicator 9 Spring Receiver
10 Spring Retainer 41 Pin Holder 10 Hex Nut
11 Rain Cap 42 Pin 11 Stopper Retainer
12 Lift Stopper Seal 43 Handwheel 12 Hex Bolt
13 Lift Stopper 44 Operating Instruction Label 13 Hex Nut
14 Cylinder 45 Spring Washer 14 Wear Ring
15 Rod Packing 46 Hex Nut 15 O-Ring
16 Bushing 47 Chain 16 Washer
17 Dust Seal 48
Single Column Angular Bearing
18 Scale Plate 49 Worm Shaft
19 Truss Screw 50 Key
20 Drive Screw 51 Gear Case Cap
21 Pointer 52 Dust Seal
22 Stem Connector 53 Hex Bolt
23 Yoke 54 Hex Nut
24 Name Plate 55 Washer
25 Filter Screen 56 Spring Unit
26 Hex Bolt 57 Caution Plate
27 Washer 58 Hex Bolt
28 Gear Case 59 Bushing Joint
29 Bearing Holder 60 Washer
30
Single Column Angular Bearing 61 Hex Nut
31 Worm Wheel
Figure 4-28 Spring Unit
Spring Unit
