Azbil HLS Series User Manual

4-37

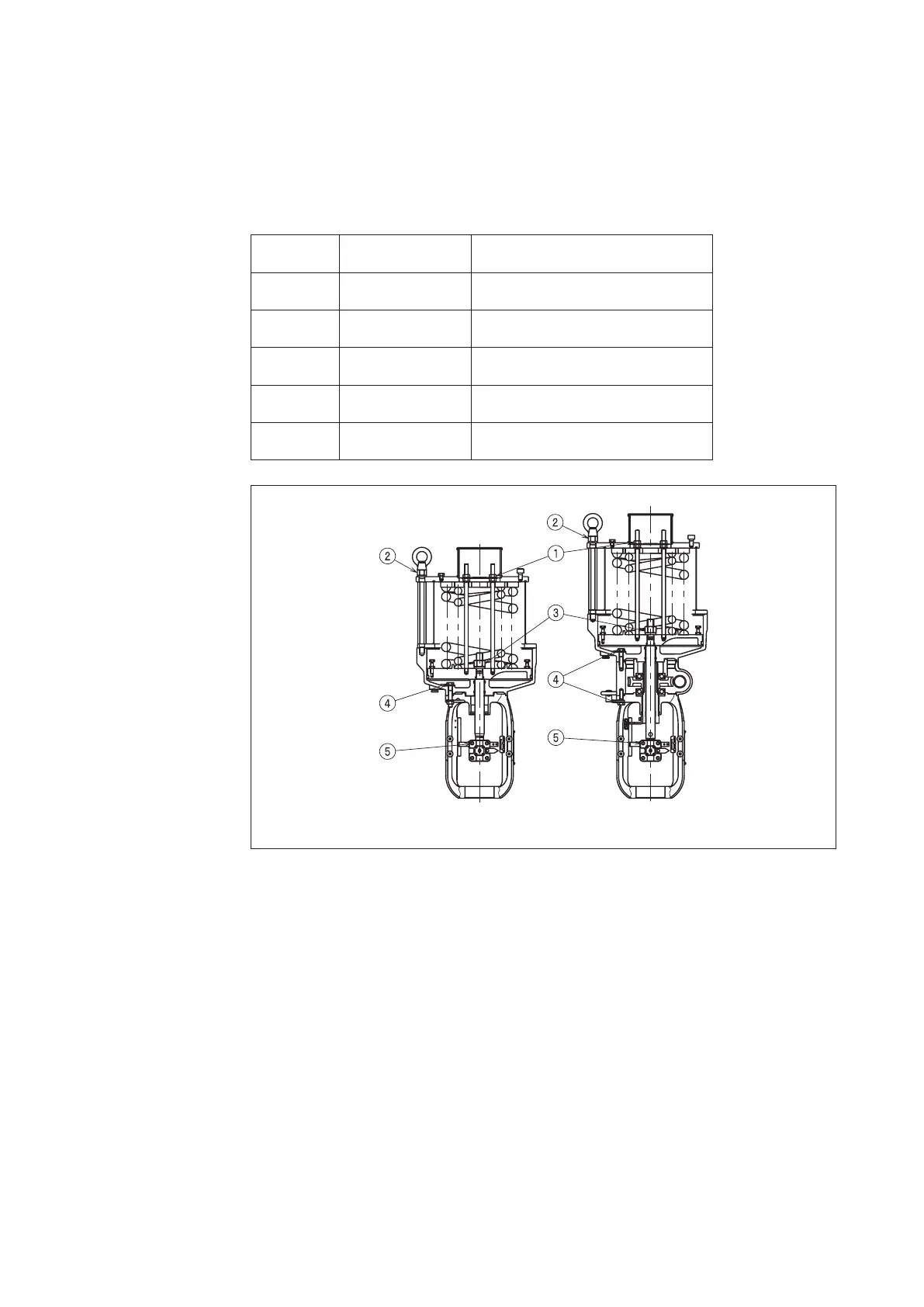

Tightening torques of actuator assembly
The table below lists the tightening torques for actuator assembly.
Refer to Figure 4-30.
Table 4-8. Tightening torque of bolt and nuts of actuator
Key No. Size Tightening torque (N.m{kgf-cm})
1 M14 45-70 {450-700}
2 M20 160-215 {1600-2200}
3 M24 215-275 {2200-2800}
4 M14 45-70 {450-700}
5 M12 35-50 {350-500}
Figure 4-30 Tightening torque of actuator thread
