Azbil HLS Series User Manual

1-2

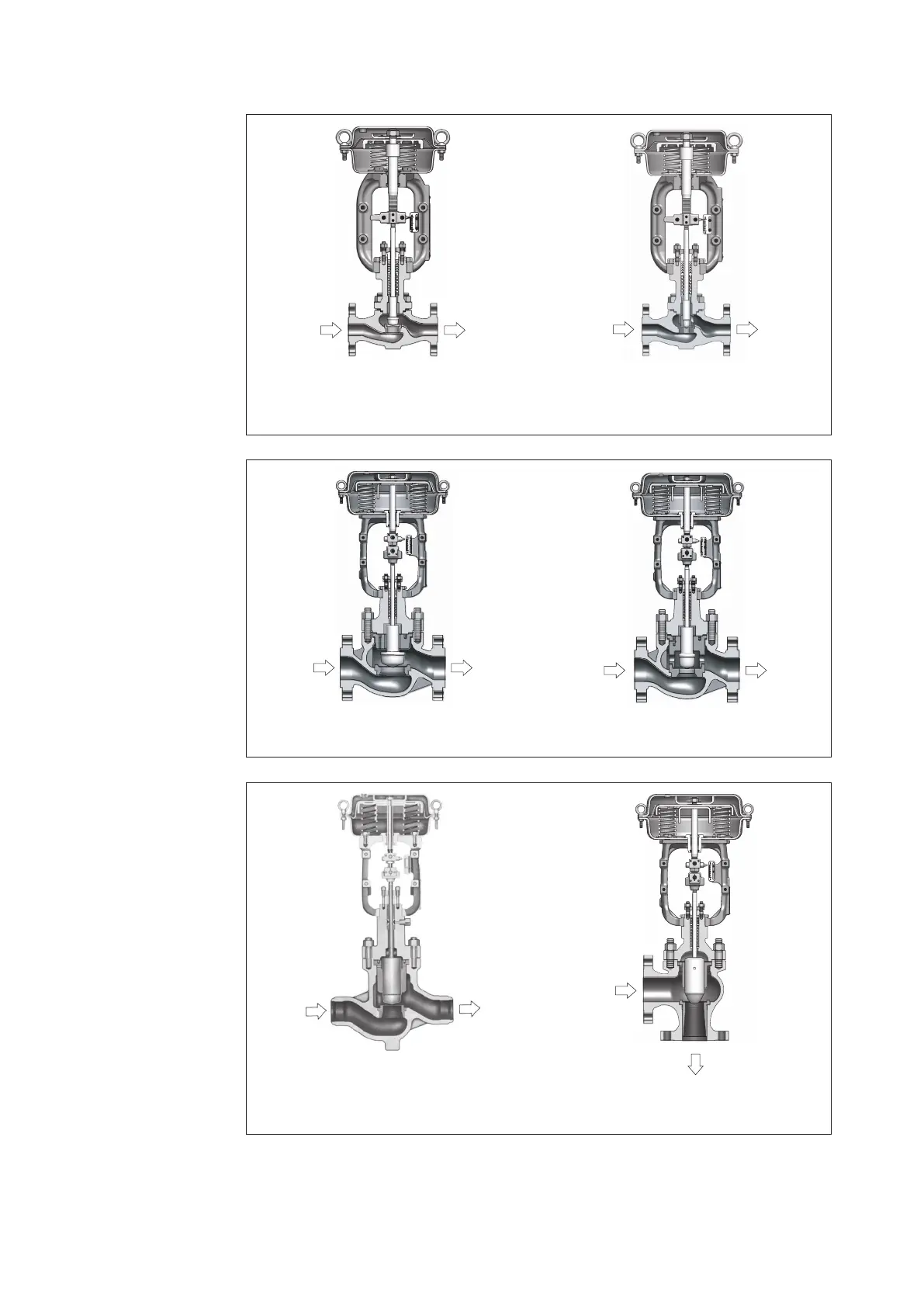

Figure 1-1A Small-Port Single Seated
Control Valve, Model HLS
(Direct Action Type)
Figure 1-1B Model HLC
Figure 1-2A Top-Guided Single Seated
Control Valve, Model HTS
Figure 1-2B Model HSC
Figure 1-3A Top-Guided High-Pressure
Single Seated Control Valve, Model HPS
Figure 1-3B Venturi-Throat-Type Angle
Control Valve, Model HAV
