Azbil HLS Series User Manual

7-6
No. Parts Name
1 Hex Nut
2 Washer
3 Handwheel
4 Screw Shaft
5 Lock Nut
6 O-Ring
7 C type Retaining Ring
8 Nut
9 Diaphragm Case (Top)
10 Eye Bolt
11 Hex Nut
12 Diaphragm
13 Diaphragm Case (Bottom)
14 Bushing
15 Bearing
16 Dust Seal
17 Pointer
18 Yoke
19 Stem Connector
20 Hex Bolt
21 Housing
22 Bearing
23 Spring Retainer
24 O-Ring
25 Seal Washer
26 Hex Bolt
27 Diaphragm Retainer
28 Stopper
29 Diaphragm Plate
30 Hex Bolt
31 Hex Nut
32 Spring
33 Spring Plate
34 Hex Bolt
35 Spring Washer
36 Rod
37 Lock Nut
38 Truss Screw, Spring Washer
Nut or Speed Nut
39 Scale Plate
40 Name Plate
41 Drive Screw
42 Washer
43 Tapping Screw

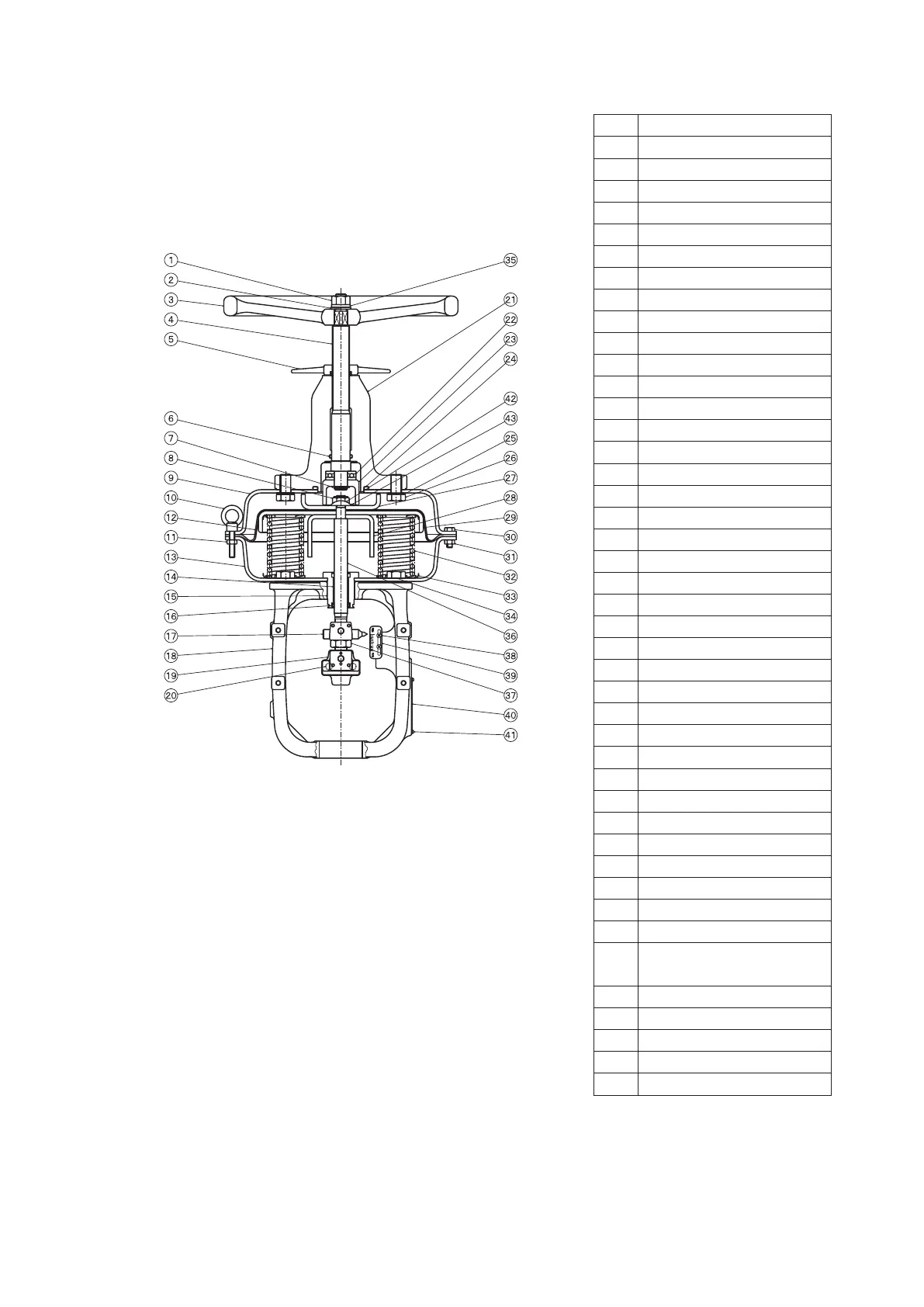

Figure 7-4 Model HA2/3 Actuator with Top Handwheel (Direct Action Type)
