INSTALLATION
Panel Installation
Place the unit in the panel through a 33 mm x 68 mm cutout. Slide the included gasket over the rear of the unit, then slide
the panel mount bracket into place so that the 4 tabs catch in the grooves on the top and the bottom of the unit (the bracket
should be oriented so that the tabs are on the side nearest the panel). Use the provided panel mount screws to tighten the
bracket until there is a secure seal against the gasket. Do not over tighten.
72 mm
8
7
6
5
1
2
3
4
68 mm
33 mm
36 mm
Mounting
Bracket
Gasket
Tabs

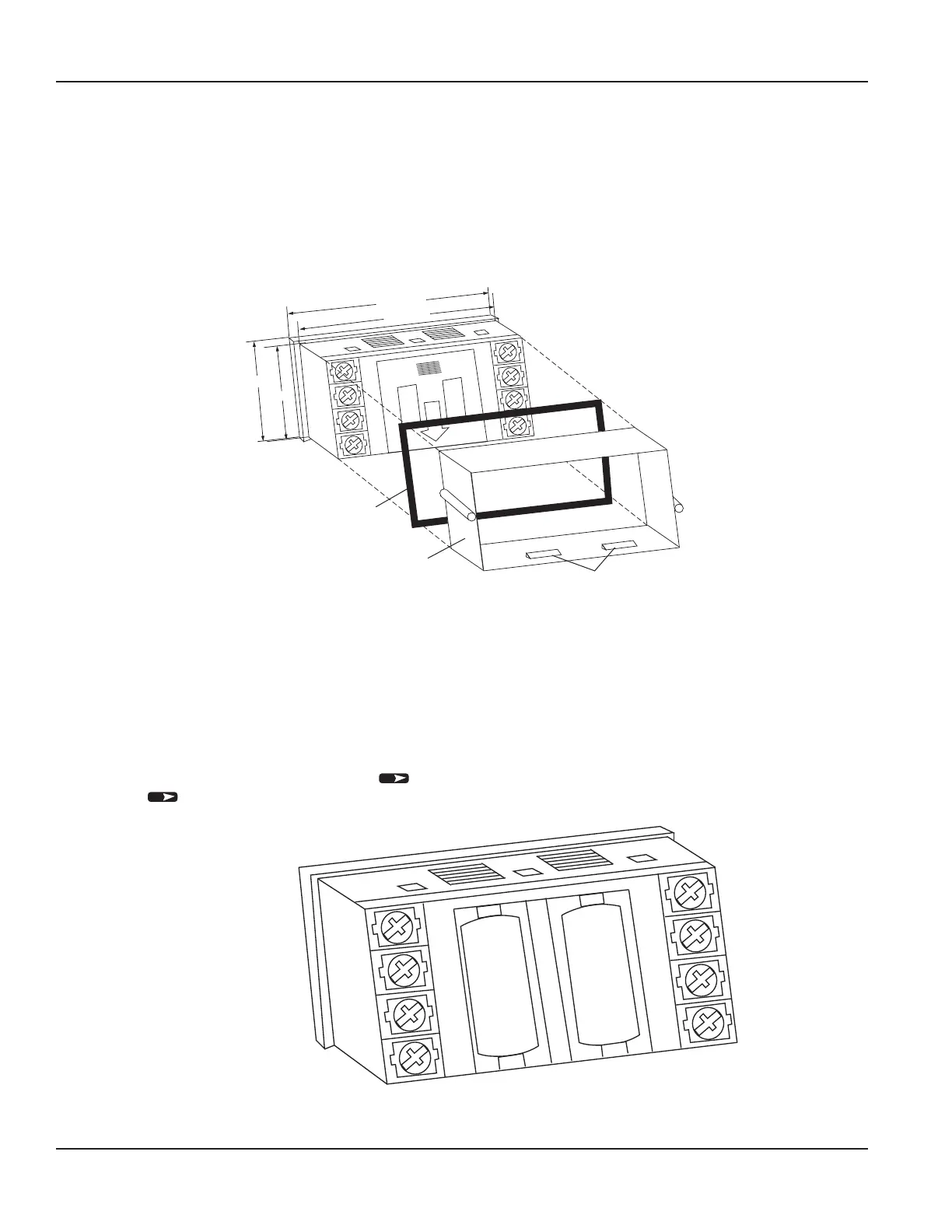

Figure 1: Panel installation
Battery Installation/Replacement
OTE:N If the low battery indicator is flashing, replace batteries before they are completely exhausted to retain programming
and indicated volume. If two batteries are present, remove and replace one battery at a time. If only one battery is
present, install a new battery in the open slot before removing/replacing the old battery.
The ER-9 is shipped with two batteries. Remove the battery cover by pushing inward and down. Install batteries in the two
slots. Once the batteries are in place, the unit goes into a self-test mode, and all the segments on the LCD display illuminate.
To exit the self-test mode, press the Reset/Select
R
key. The unit then displays the model number 9 for the ER-9. Press the
Reset/Select
R
key again to ready the unit for operation.
Battery
Battery
+
+
-
-
Figure 2: Battery installation
Industrial Registers, Model ER-9 Digital Resettable Totalizer
Page 6 August 2018REG-UM-00836-EN-12
