Register programming Page 8/20
OG_IOG_BA_02_1401
8. Register programming
In programming mode only, pressing and releasing the TOTAL button advances to the
next parameter on the current screen. Pressing and releasing the RESET button changes
the current flashing selection to another selection (such as “L” to “GAL”).
To enter the programming mode, press the TOTAL button three times and then press the
RESET button three times (the time lag between pressing both buttons six times must be
within two seconds).
Changing the unit of measure and scale factor
(for models ILR 700, 710, 720 and 730)
8.1 Unit of measure

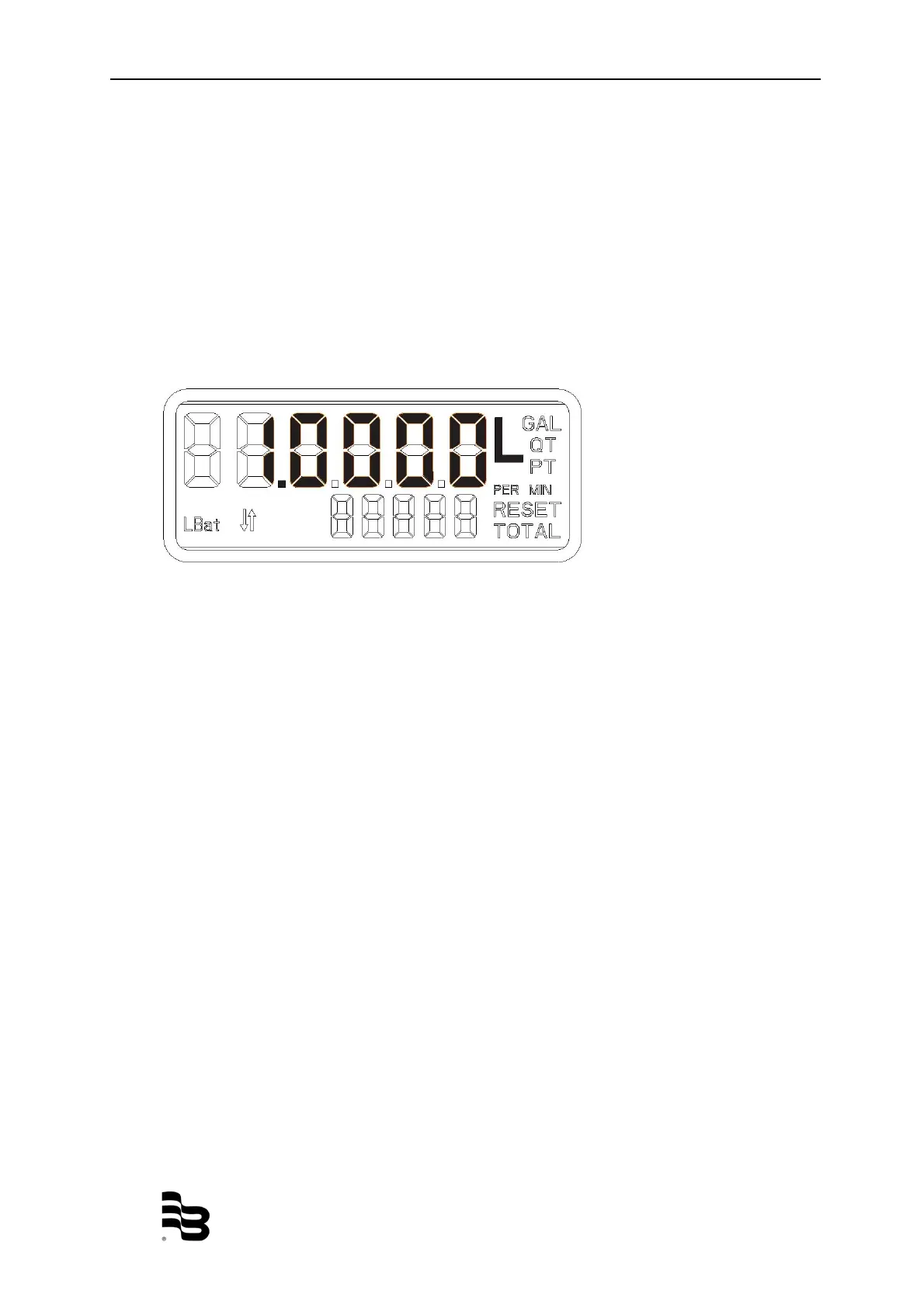

Figure 5: Unit of measure & scale factor programming
1. Press and release the RESET button to change the unit of measure (L, GAL, QT,
PT).
2. Press and release the TOTAL button to select desired the unit of measure (the
selected unit of measure will flash).
3. When the appropriate unit of measure is selected, press the TOTAL button to
advance to the scale factor programming.
8.2 Scale factor
(for models ILR 700, 710, 720 and 730)
The register collects input pulses from the oval gear meter and then determines the
appropriate display output using the scale factor. This scale factor varies depending
upon the viscosity of the liquid being measured, therefore calibrating the meter and
register in the appropriate liquid will affect the scale factor. The scale factor is
displayed as 5 digits (on the top row) next to the unit of measure. The scale factor
consists of 1 integer digit and 4 decimal digits (see figure 5).
1. Press the TOTAL button to select a digit (selected digits flash). After cycling
through all 5 digits of the scale factor, the register will return to the unit of measure
selection.
2. Press RESET to change the selected digit. The scale factor must fall between the
values of 0.5000 and 2.0000. The Badger Meter factory preset is set between
those values at 1.0000.
3. When finished adjusting the unit of measure and scale factor, press and hold the
TOTAL button for one second to advance to the Pulse Rate section.
NOTE: Error checking will not allow the user to advance to the next screen.
