OG_IOG_BA_02_1401

1. Press the RESET button to toggle between available options (“I, for an inline-to-

flow orientation and “P” for a perpendicular-to-flow orientation).

2. When finished adjusting the register orientation, press and hold the TOTAL button

for one second to advance to the “Default Display” section.

8.5 Changing the display mode

(for models ILR 700, 710, 720 and 730)

The display mode screen (indicated by a “d” on the top row, on the left side)

determines the information displayed on the top line of the register during normal

operation. The display mode may be either the totalizer screen or the flow rate

screen.

“C,” indicates the totalizer screen and “F” indicates the flow rate screen. The totalizer

screen is depicted below:

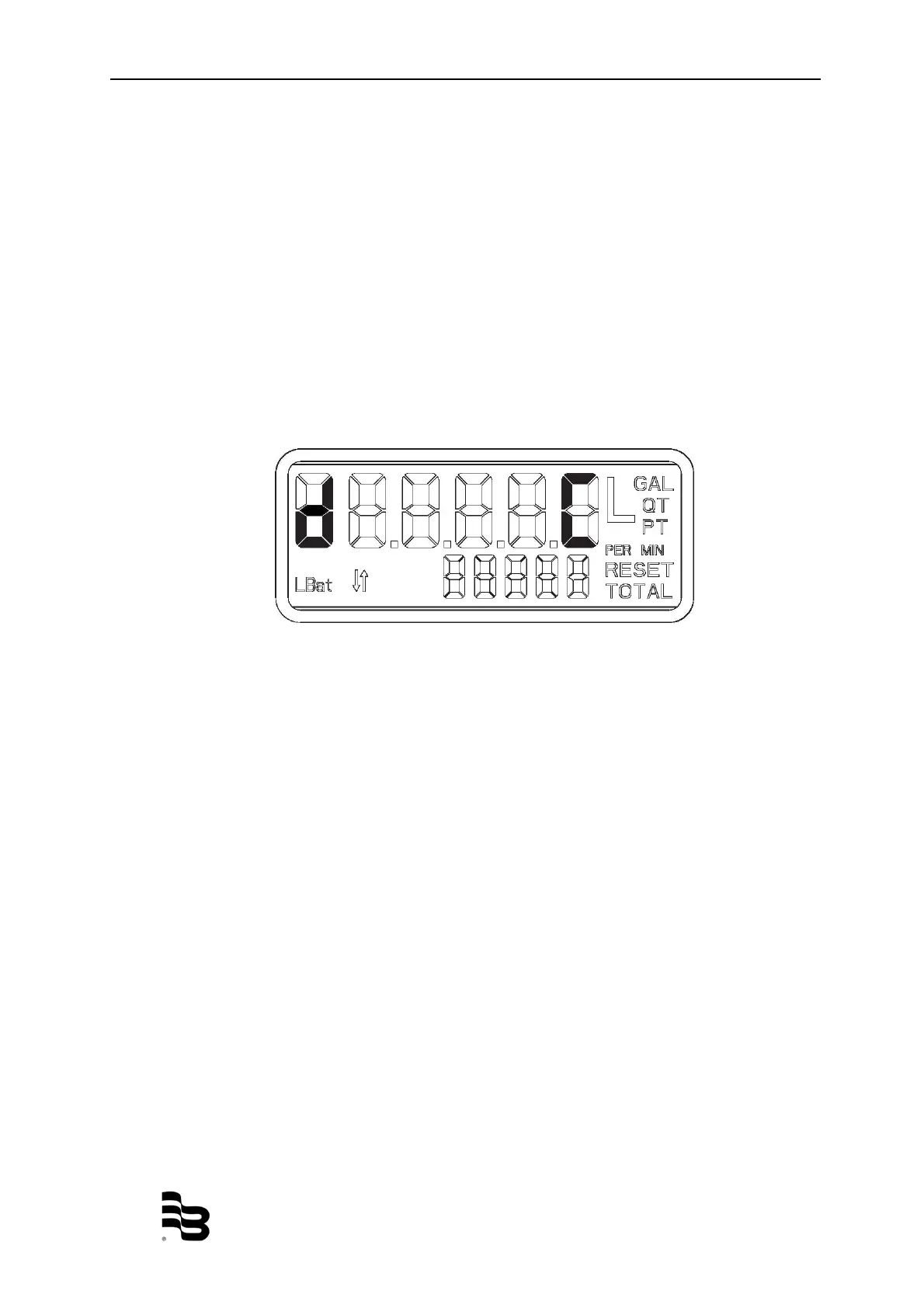

Figure 8: Default display

1. While a letter is flashing on the display, press the RESET button to select either

totalizer or flow rate.

2. Upon completion of this setting, the programming of the Industrial Standard

730 models, see additional programming parameters.

Note: For ILR 710 and ILR 730 models, see "Additional Programming: Industrial

Analog and Industrial Pulse (ILR 710 & ILR 730)" on page 11.

8.6 Exiting Programming Mode

(for models ILR 700, 710, 720 and 730)

To exit the programing mode:

1. On any screen, press and hold the both the TOTAL and RESET buttons. The

screen will revert back to the programmed scale factor, and then flash.

Following the three flashes, the register display will be blank.

Note: Pressing the TOTAL or RESET buttons wil turn the display back on.

Badger Meter IOG Series User Manual
