10.2 Dual pulse (model ILR 720)
Register wiring
External DC+: Yellow
External ground: Brown
Pulse output 1: White
Pulse output 2: Green
External reset: Grey
DC input: 6 to 24 VDC; 10 to 20mA
Outputs: Dual-pulse output with internal pull-up resistor; optional open collector
output with output jumper removed; dual pulse output forms a quadrature signal for
direction of flow.
Inputs: External reset pulled low to reset the batch totalizer.

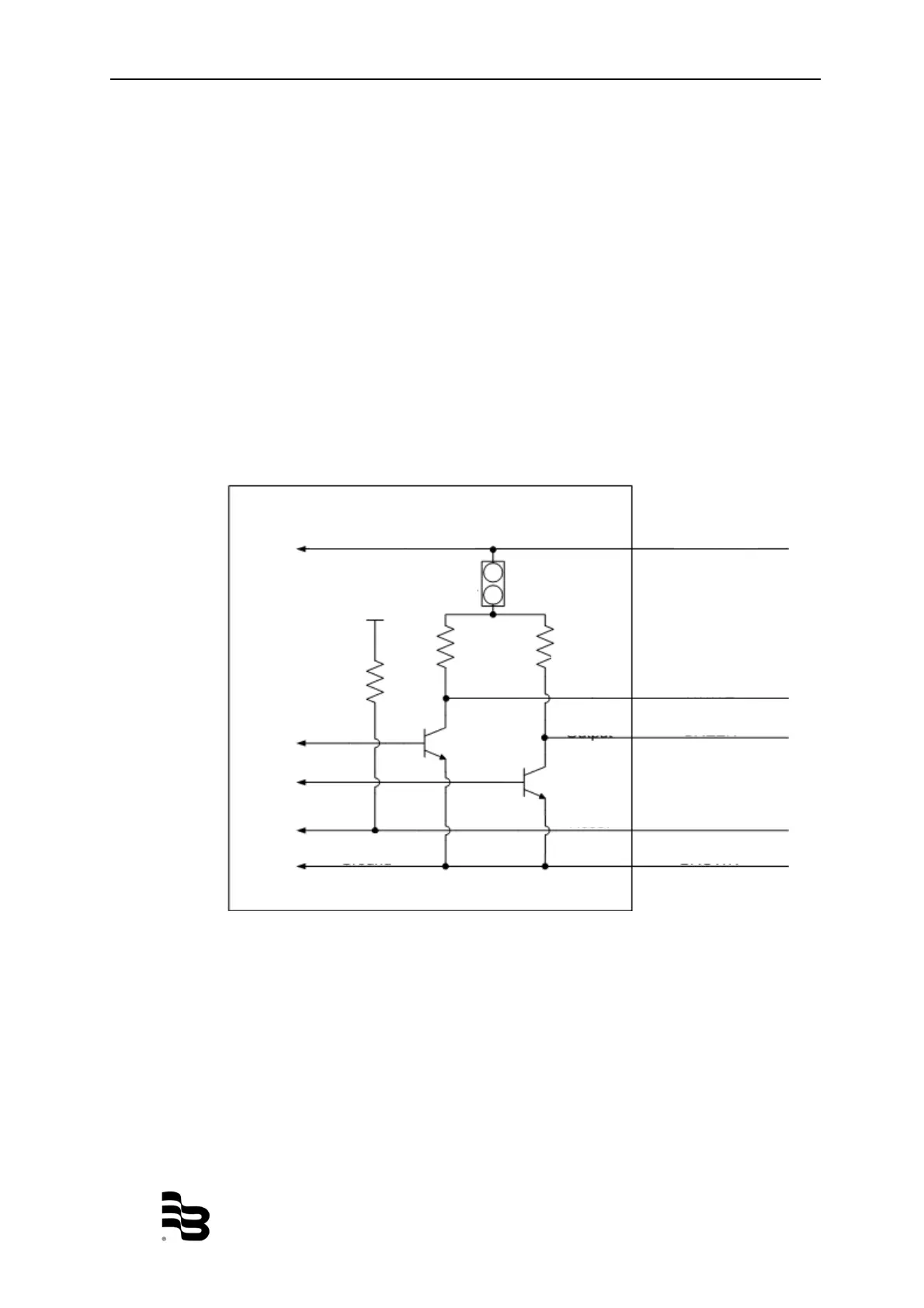

Figure 14: ILR 720 wiring
ILR 720
Yellow
White
Brown
Ground
Pulse
output
8-24V DC in
p
ut
Green
Output
jumper
Gre
y
External
reset
Output
j
um
p
e
r
+3.0V DC
