Badger Meter IOG Series User Manual

Register output specifications & wiring Page 18/20
OG_IOG_BA_02_1401
10.6 Pulse transmitter (for 1/4’’)

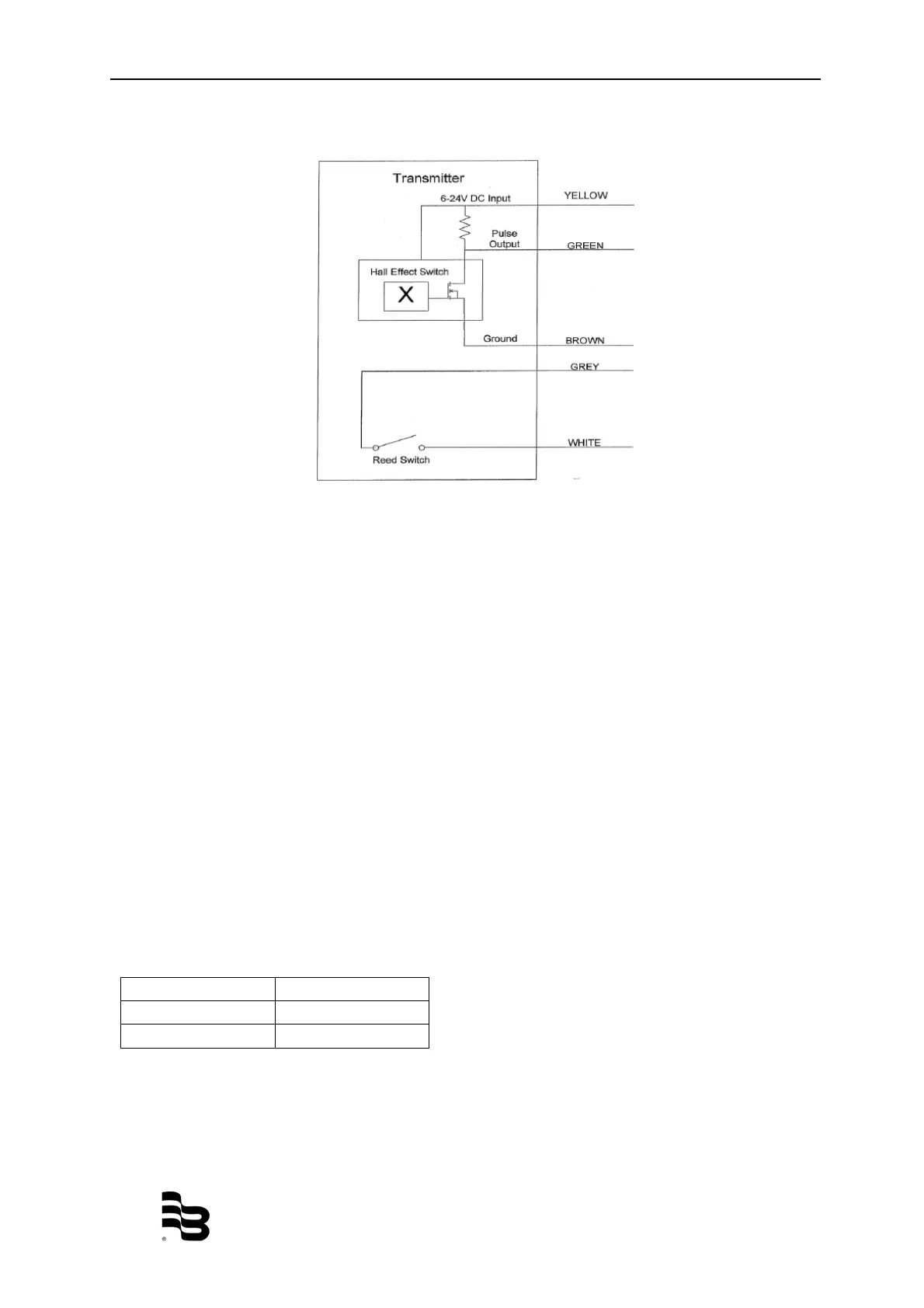

Figure 19: 1/4" and 1/4" low flow wiring
Hall effect switch
Rating: Power
Supply: Supply input range:5-24V DC
Supply current: 3.5 mA
Pulse
Output Output current: 30 mA, max.
Wiring: Yellow: Hall effect DC+
Brown: Hall effect ground
Green: Hall pulse output
Reed switch
Rating: Power rating: 10W
Switching voltage: 100V (DC or peak AC)
Switching current: 500 mA (DC or peak AC)
Wiring: Grey: Reedswitch
White: Reedswitch
Green: Hall effect pulse output
Pulses per liter (PPL)
Meter size Pulses per liter
1/4 “ 390
1/4 “ LF 2170
