Using the Optional Insertion/Extraction Tool
Page 12 June 2018VRX-UM-02217-EN-04
1 in.
(25 mm)
28 in.
(711 mm)
FLOW
1 in. (25 mm) connection
to insertion shaft.
1.5 in. (38 mm) connection
to seal assembly xed to pipe.

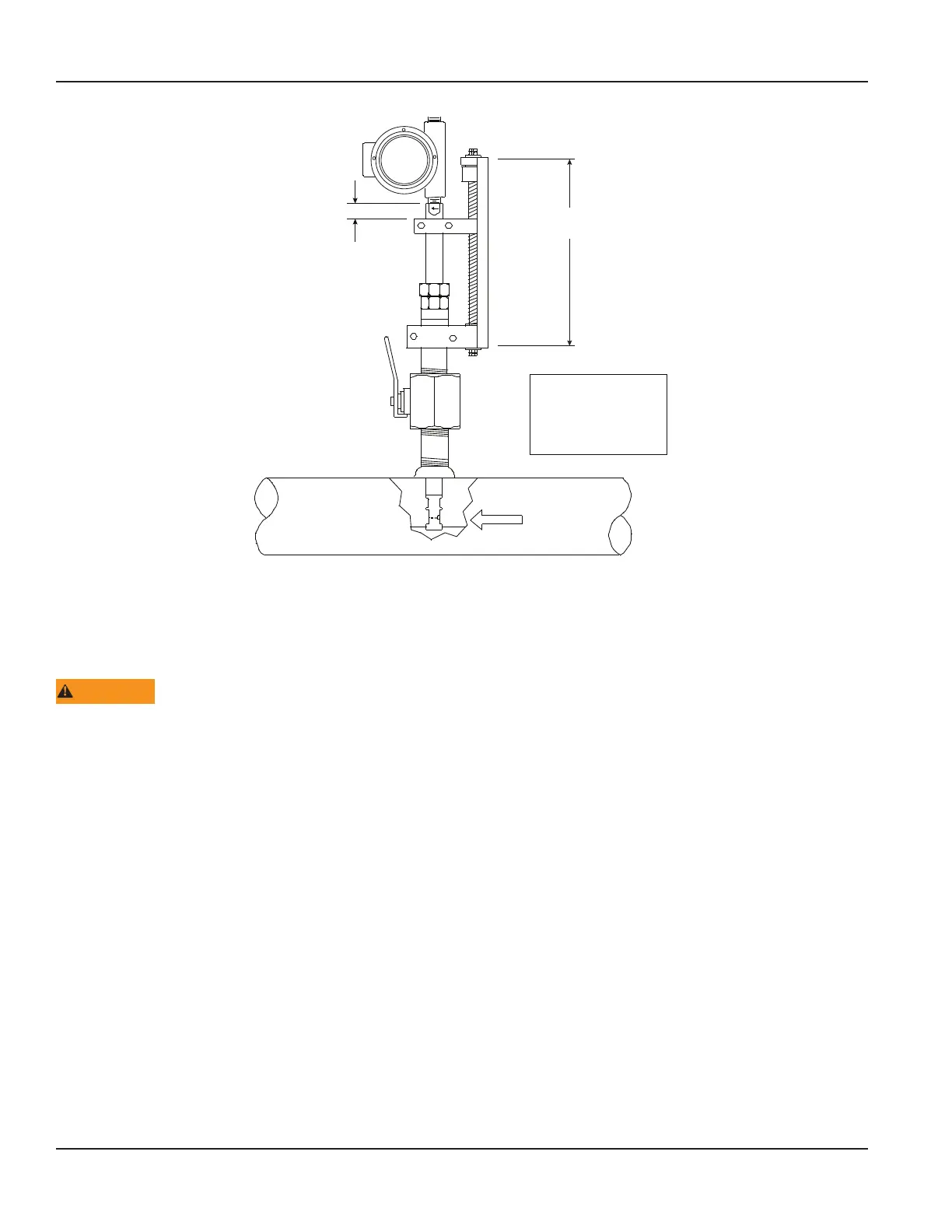

Figure 5: Insertion tool attached to VN2000 meter and seal assembly
MPORTANTI
The tool bolts must be securely tightened onto the meter shaft and seal assembly.
7. After installing the tool, completely remove the seal assembly nut from the threads.
WTRNING
FOLLOW THE NEXT STEP CAREFULLY TO PREVENT LEAKAGE, WHICH COULD CAUSE INJURY.
8. When the insertion tool is securely fastened, loosen the nut on the top of the seal assembly, making sure not to loosen
the entire seal assembly that is connected to the piping. (The larger of the hex nuts houses the split-ring assembly.) This
should be completely loosened o the top of the seal assembly with NO threads engaged. This can be done by holding
the seal assembly in place and then loosening the large hex nut on the split-ring assembly. The split-ring nut should be
loosened completely (you may have to tap the nut with a hammer to free the split ring).
