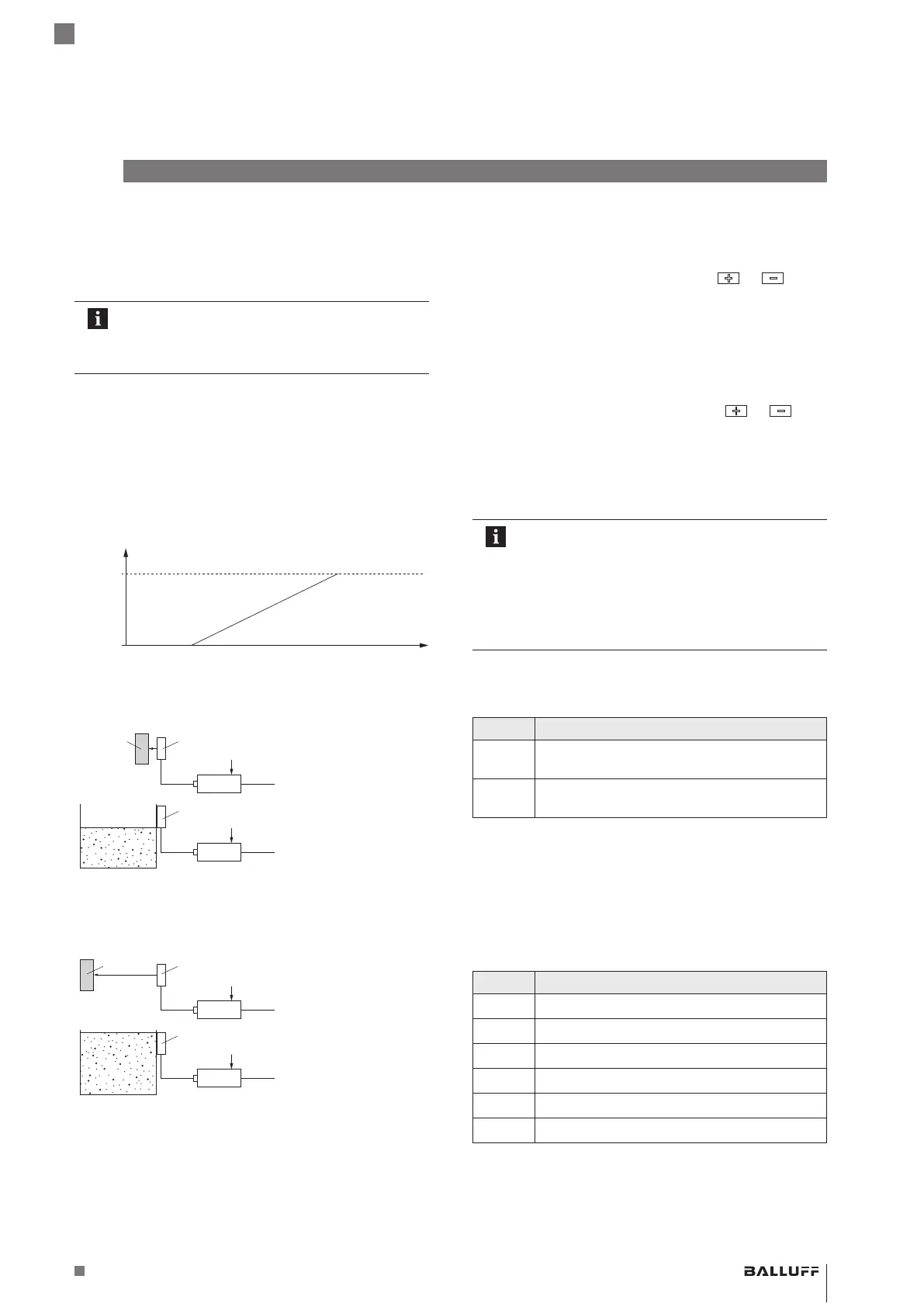

Operating mode (continued)
7.3 Teaching in switchpoints
7.3.1 Teaching in switching sensors
t S
The output functions SP1 and SP2 are dependent
on the selected switching mode
Mod
and the
selected output configuration
out
(see
section7.6.2).
SP 1
► Teach in switchpoint 1 and store as SP1.
SP2
► Teach in switchpoint 2 and store as SP2.
7.3.2 Teaching in analog sensors
t A
Fig. 7-1:
Sensor value
SALo
4 mA
20 mA
SAHi
Teaching in analog sensors
SAL o
Fig. 7-2:
BAE
BAE
SALo
SALo
Sensor
Sensor
Fill level
Object
Teach in range_limit
min
► Teach in range_limit
min
(0V, 4mA).
SAHi
Fig. 7-3:
BAE
BAE
SAHi
SAHi
Sensor
Sensor
Object
Fill level
Teach in range_limit
max
► Teach in range_limit
max
(10V, 20mA).
7.4 Manually adjusting switchpoint 1
SP 1
(only in operating mode switching)
► Adjust the value (0…4095) using the
or
buttons.
⇒ The adjustment is effective immediately.
7.5 Manually adjusting switchpoint 2
SP2
(only in operating mode switching)
► Adjust the value (0…4095) using then
or
buttons.
⇒ The adjustment is effective immediately.
7.6 Configuration
[ ]conf
The configured settings are effective immediately.
The high teach value is assigned to SP1:
– higher dampening
– smaller object distance
The low teach value is assigned to SP2:
– smaller dampening
– larger object distance
7.6.1 Adjusting the operating mode
SoA
Display Configuration
S
Switching operation
(output function: on/off)
A
Analog operation (output function:
4…20mA or 0…10V)
Tab. 7-4: Adjusting the operating mode
7.6.2 Adjusting the switching power amplifier type/
analog output
Switching sensors
out
Display Configuration
P no
PNP N.O.
n no
NPN N.O.
PP no
Push-pull, actuated = high side
P nc
PNP N.C.
n nc
NPN N.C.
PP nc
Push-pull, actuated = low side
Tab. 7-5: Adjusting switching sensors
