6 Display
6.1. General
With the implemented display, the address is set directly on the BNI EIP… devices.
The following address types are implemented:
• IP address
• Subnet mask
• Gateway address.
Each address type consists of 4 octets.
Additional the display shows information about the hard- and firmwarerevision.
There is a lock function for the display which can be activated out of the control system. If
the lock is set editing isn’t possible anymore (see Bit layout, chapter 8 „Appendix“).
6.2. Adress Defaults
IP Address: 169.254.1.1
Subnetmask: 255.255.255.0
Gatewayaddress: 0.0.0.0

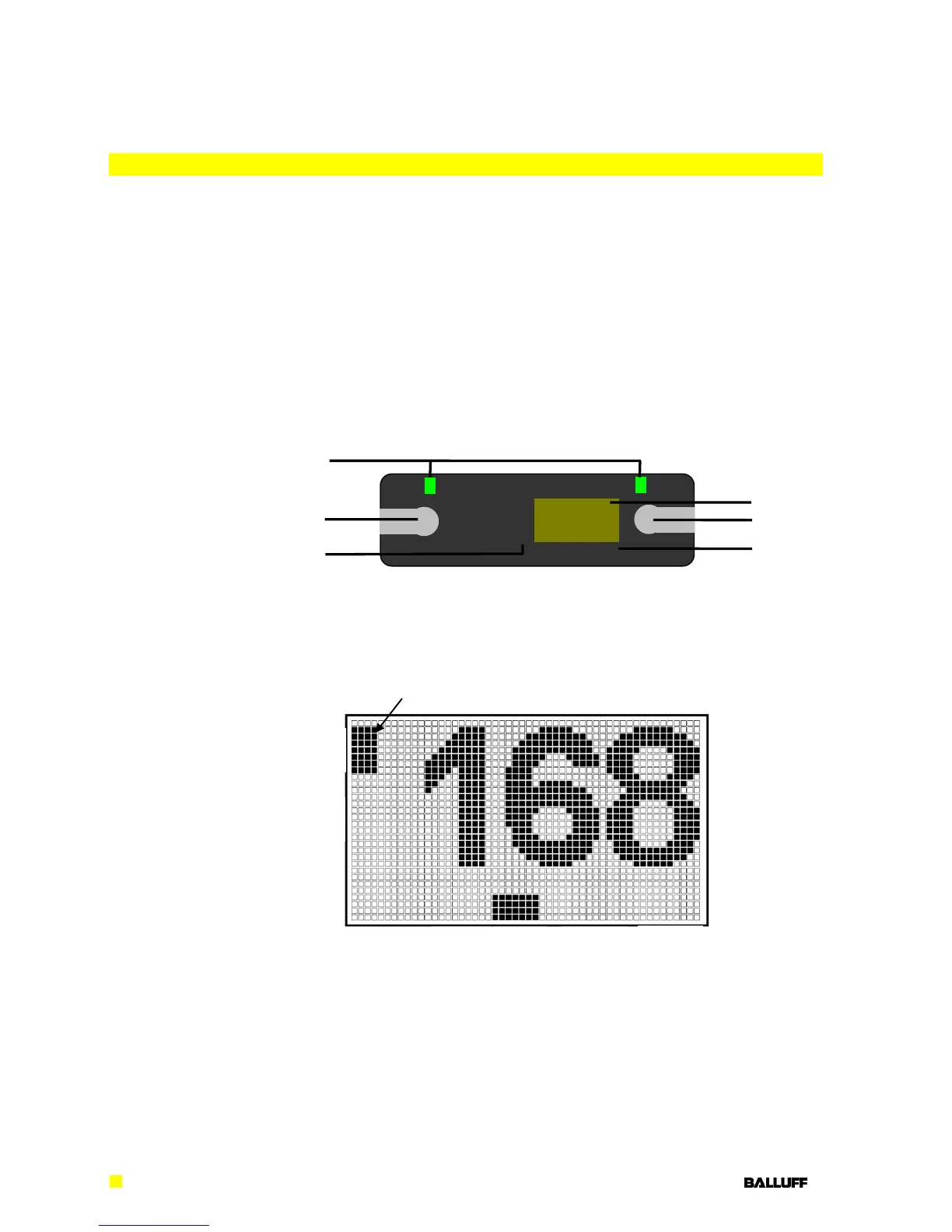

6.3. Controls and
visualization
1 Display
2 Arrow-Key
3 Octett-Cursor
4 Address type cursor
5 „Set“-Key
6 LED
6.4. Display
information
IP: IP address
SN: Subnet address
GW: Gateway address
3: fourth octet
2: third octet
1: second octet
0: first octet
S
↑
IP
SN
GW
3 2 1 0
1
2
3
4
5
6
2
3
1
0
Cursor for selecting address type
Cursor zur Auswahl der Adressausprägung
Cursor for selecting octet
IP
SN
IP
GW
