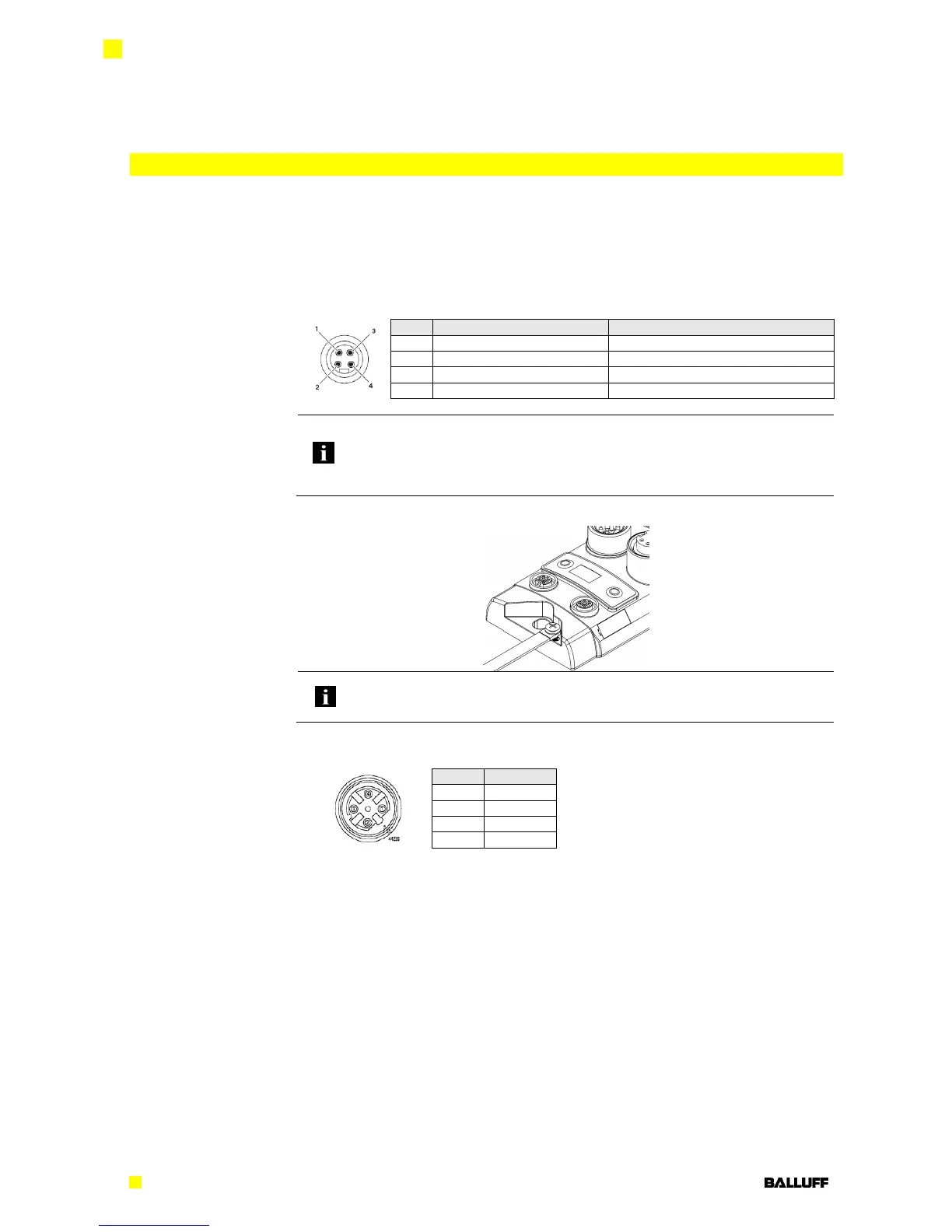

3 Getting Started
3.2. Mechanical
connection
The module is attached using 2 M6 screws and 2 washers.
Isolation pad as accessory available
3.3. Electrical
connection
Power Supply
Pin
Function
Description
1
+24 V
Output Power
2
+24 V
Input Power
3
0 V
Input Power Common GND
4
0 V
Output Power Common GND
Note
Provide sensor/bus power and actuator power from separate power sources if
possible.
Total current <9A. The total current of all modules may not exceed 9A even
when daisy chaining the actuator supply.
Grounding
Note!
The FE connection from the housing to the machine must be low-impedance
and kept as short as possible.
Ethernet IP
Interface
M12, D-coded, female
Pin
Function
1
Tx+
2
Rx+
3
Tx-
4
Rx-
