Accessories are not included in the scope of delivery and
must be ordered separately.
11.1 Magnets
Fig. 11-1:
BTL-P-1013-4R
BTL-P-1013-4S
BTL-P-1012-4R
BTL-P-1014-2R
BTL-P-0814-GR-PAF

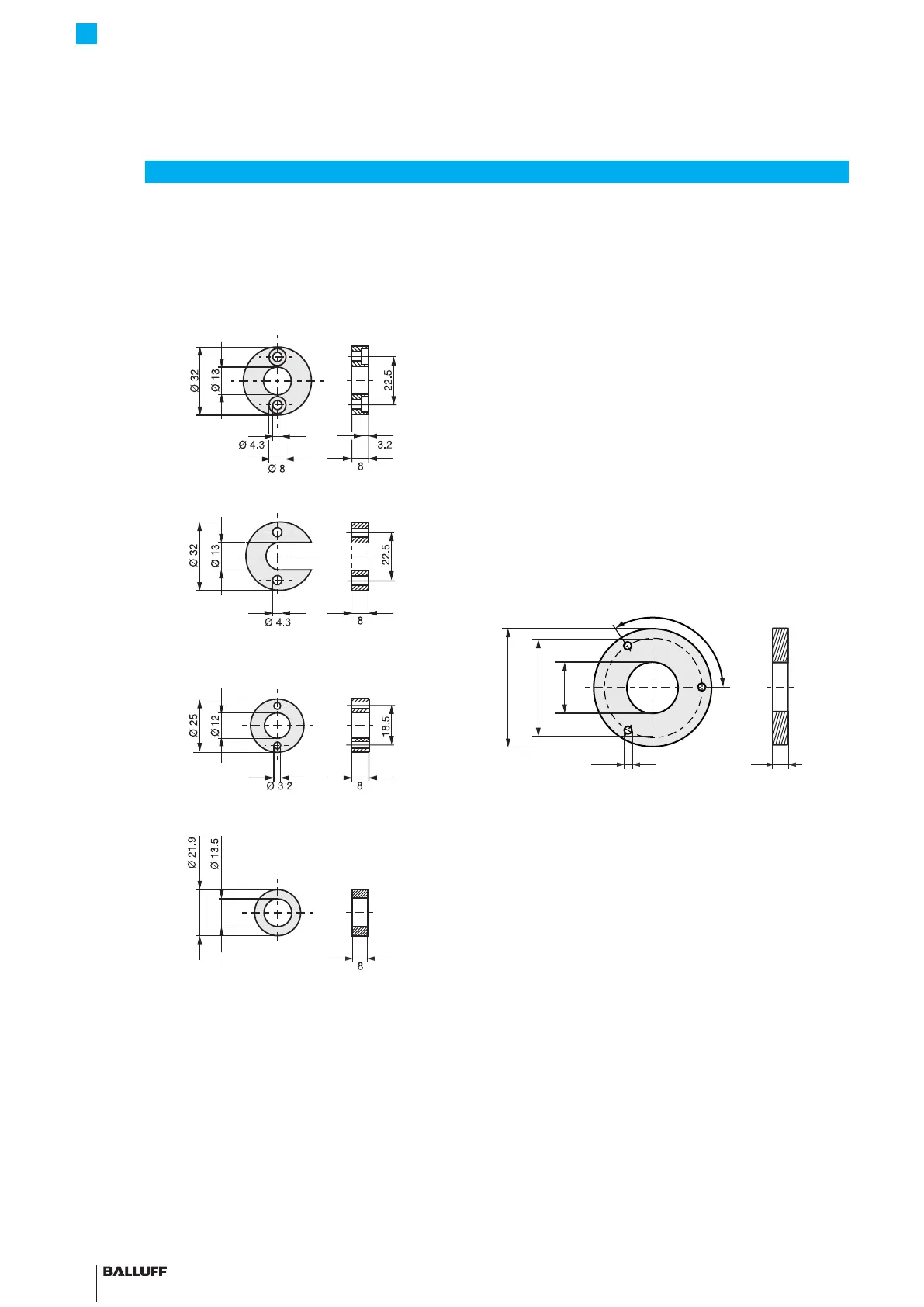

Magnet installation dimensions
BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R,
BTL-P-1014-2R:
Weight: Approx. 10g
Housing: Aluminum
Included in the scope of delivery for the
BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R:
Spacer: 8mm, material: polyoxymethylene
(POM)
BTL5-P-4500-1 magnet (solenoid):
Weight: Approx. 90g
Housing: Plastic
Operating
temperature: –40°C…+ 60°C
BTL-P-1028-15R (special accessories for
applications with a supporting rod):
Weight: Approx. 68g
Housing: Aluminum
Fig. 11-2:
Ø 4.3
120°
Ø 28 Ø 54
Ø 65
8
BTL-P-1028-15R special accessories
11
Accessories
BTL7-A/C/E/G5 __ -M ____ -K(8)-SR32/SR115/___
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
