Balluff BTL7 Series User Manual

www.balluff.com 23english

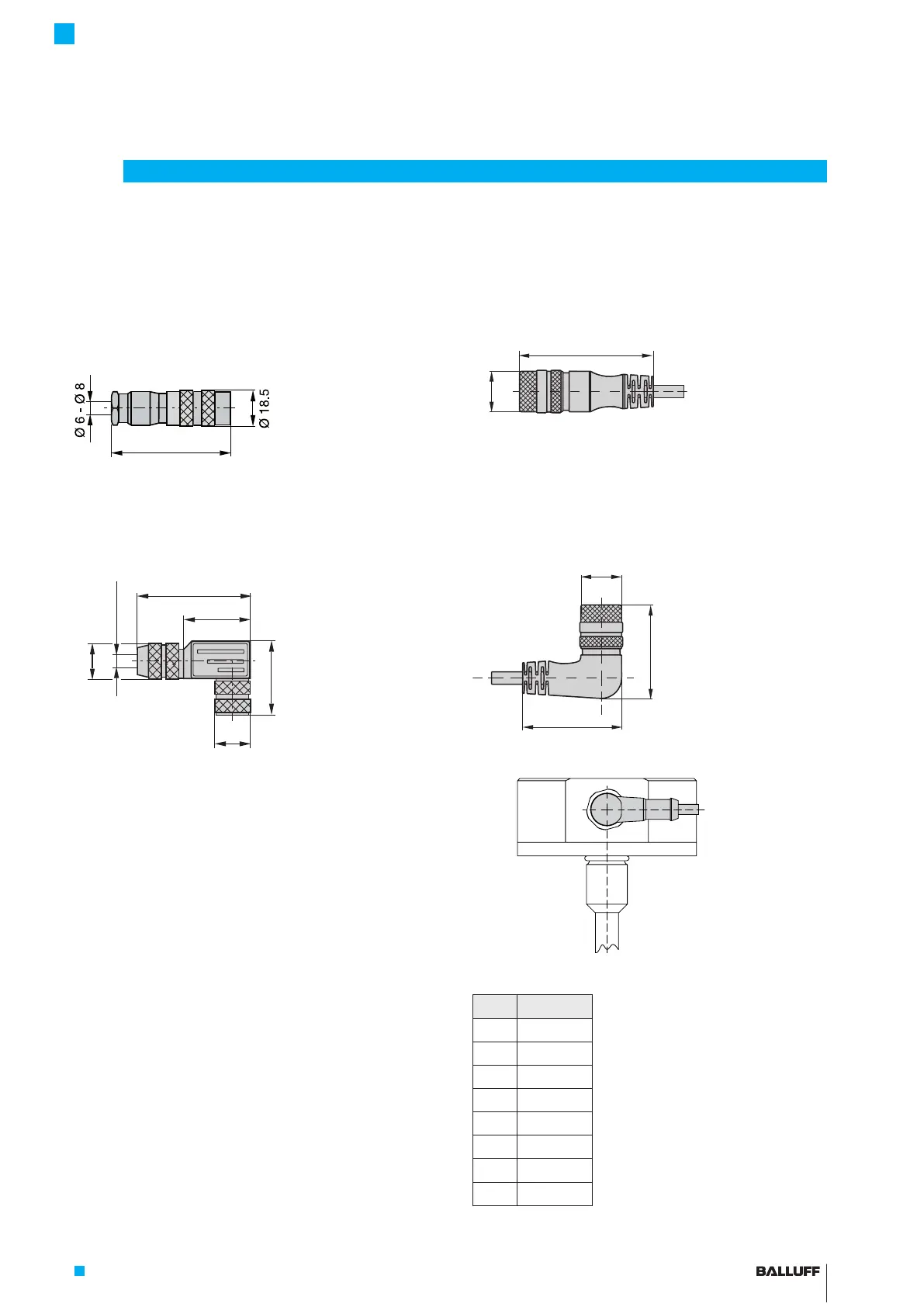

11.2 Connectors and cables
11.2.1 BKS-S32/S33M-00, freely configurable
BKS-S32M-00
Straight connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 11-3:
~ 62
Connector BKS-S32M-00
BKS-S33M-00
Angled connector, freely configurable
M16 per IEC130-9, 8-pin
Fig. 11-4:
Ø 18
31
37.2
Ø 20
Ø 6 - Ø 8
~ 54
Connector BKS-S33M-00
11.2.2 BKS-S232/S233-PU-_ _, preassembled
BKS-S232-PU-_ _
Straight connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S232-PU-05: Cable length 5m
Fig. 11-5:
Ø 20
66
Connector BKS-S232-PU-_ _
BKS-S233-PU-_ _
Angled connector, molded, preassembled
M16, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S233-PU-05: Cable length 5m
Fig. 11-6:
Ø 20
46
48.5
Connector BKS-S233-PU-_ _
Fig. 11-7:
Connector BKS-S233-PU-_ _, outlet
Pin Color
1 YE yellow
2 GY gray
3 PK pink
4 RD red
5 GN green
6 BU blue
7 BN brown
8 WH white
Tab. 11-1: BKS-S232/S233-PU-_ _ pin assignment
11
Accessories (continued)
BTL7-A/C/E/G5 __ -M ____ -K(8)-SR32/SR115/___
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
