Balluff BTL7 Series User Manual

26 english

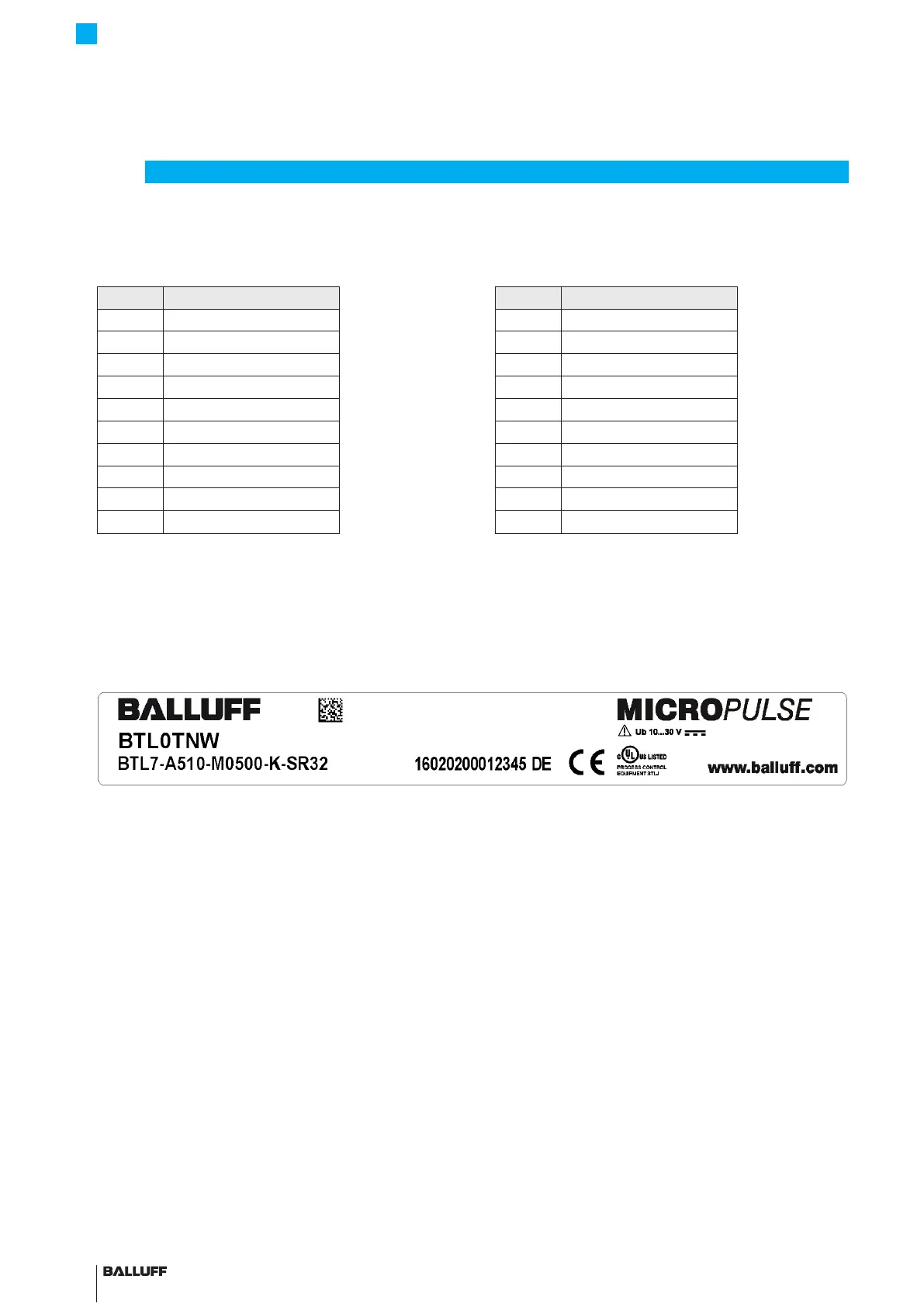

13.1 Converting units of length
1mm=0.0393700787inches
mm Inch
1 0.03937008
2 0.07874016
3 0.11811024
4 0.15748031
5 0.19685039
6 0.23622047
7 0.27559055
8 0.31496063
9 0.35433071
10 0.393700787
Tab. 13-1: Conversion table mm to inches
1inch=25.4mm
Inch mm
1 25.4
2 50.8
3 76.2
4 101.6
5 127
6 152.4
7 177.8
8 203.2
9 228.6
10 254
Tab. 13-2: Conversion table inches to mm
13
Appendix
13.2 Part label
Fig. 13-1: BTL7 part label
1)
Ordering code
2)
Type
3)
Serial number
1)
3)
3)
2)
BTL7-A/C/E/G5 __ -M ____ -K(8)-SR32/SR115/___
Micropulse Transducer - Rod Style

Balluff BTL7 Series Specifications

General

Measurement Principle	Magnetostrictive
Resolution	Up to 1 μm (depending on model)
Operating Temperature	-40°C to +85°C
Protection Class	IP67
Housing Material	Aluminum
Output Signal	Analog
Supply Voltage	10V to 30V DC
