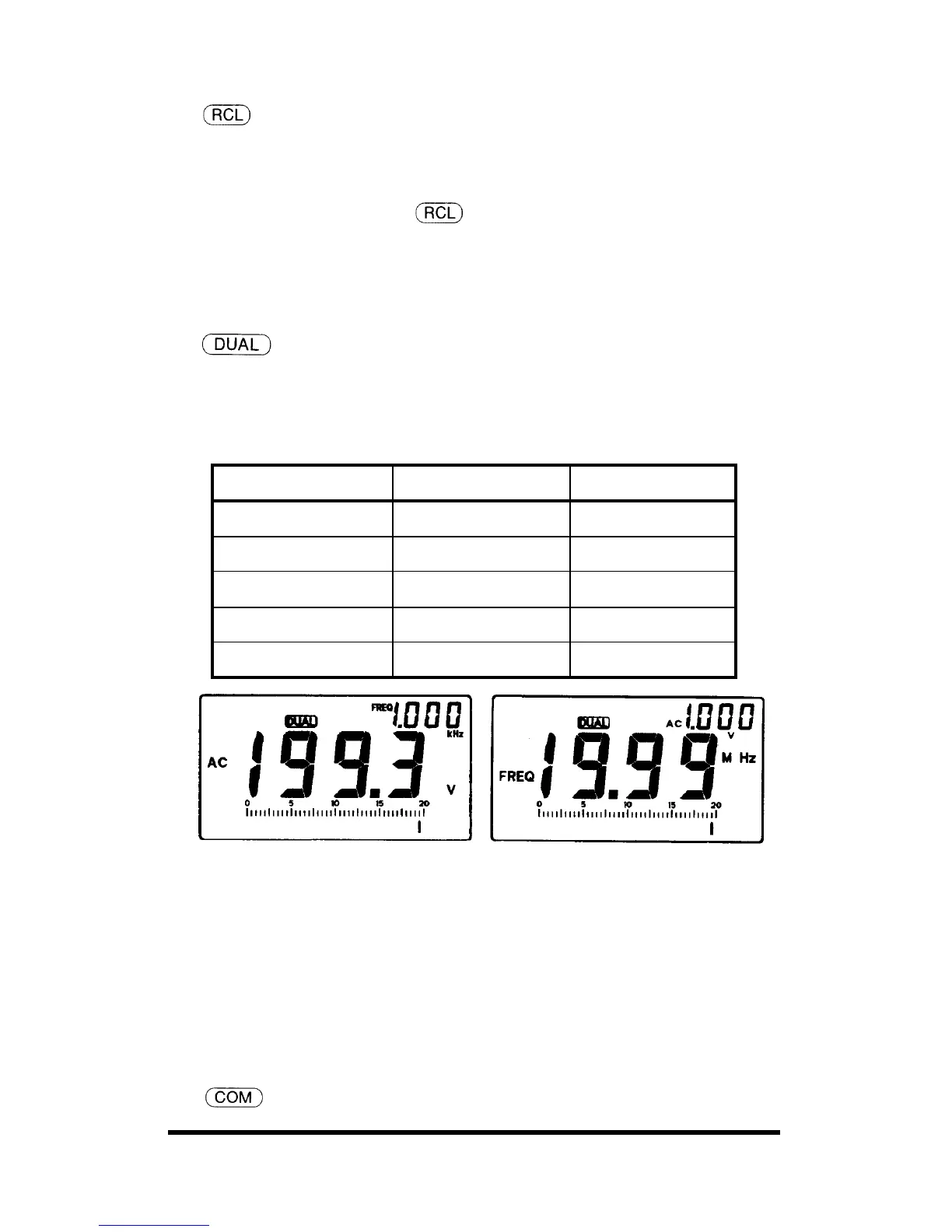

24.
Memory Recall
Enables you to get the memorized reading back on the LCD.
To get the memorized reference value, follow these steps:
1. Set the function mode at
mode.
2. Press UP DOWN buttons to address the number from 0 to 9.
3. Press SET/RESET button to get the memorized value back on the
LCD. Then the reference value you chose will appear on the
sub-display.
25.
Dual-Display
Lets you have two primary+secondary readings on the LCD in the
following ranges (See Table 3)
Table 3. Dual-Display
INPUT RANGE MAIN-DISPLAY SUB-DISPLAY
AC VOLTAGE VOLTAGE FREQUENCY
FREQUENCY FREQUENCY AC VOLTAGE
TEMPERATURE
°C °F
LOGIC HI/LO FREQUENCY
dB dB AC VOLTAGE
Notes:
• Your meter will display Ripple Frequency at DC Voltage position.
• In the ranges of DC/AC A, Resistance, Diode and hFE, the sub-display
might show the FREQ .000. This is not intended for dual-display mode.
• When you select dual measurement while measuring frequency, the
meter selects the 20V AC range for the secondary display. To measure
both the voltage and frequency, when the voltage is greater than 20V
AC, select AC voltage as the primary measurement.
26.
Communication
