INTRODUCTION TO NETWORK QUAD CONT'D

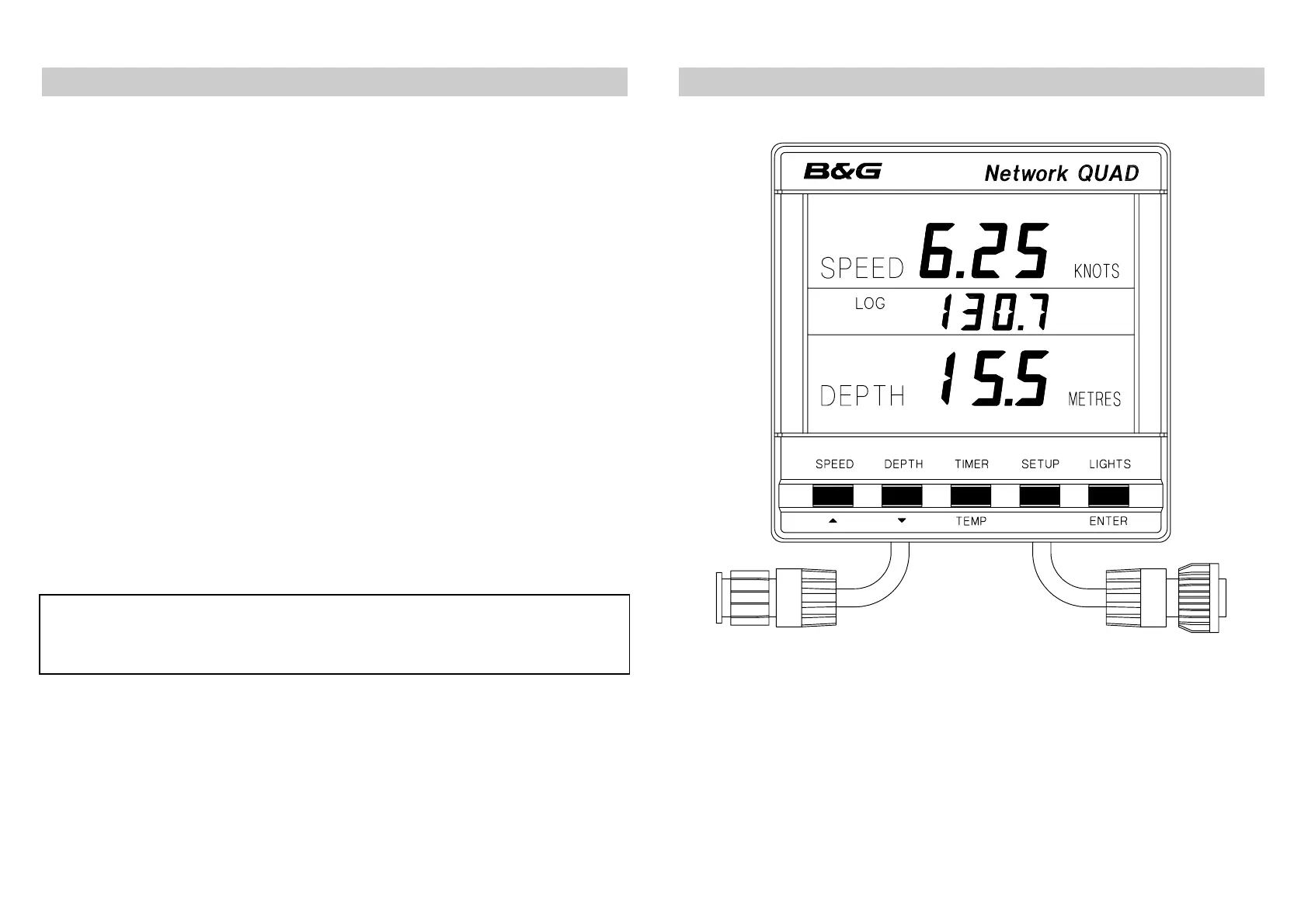

NETWORK QUAD DISPLAY UNIT
The Network QUAD unit has three adjustable alarms:
1. Shallow water alarm
2. Deep water alarm
3. Anchor alarm
An internal alarm buzzer will sound when an alarm condition
is met and the display will flash. The alarm is broadcast to
all other Network Instruments in an integrated system, they
will also sound their alarms and flash their displays (except
Network WIND and Network TACK).
The Network QUAD unit is NOT able to transmit NMEA
0183 (v1.5), however, the Network QUAD REPEATER unit
is able to transmit NMEA data via the system network
cables to other Network units and connect to an NMEA
device e.g. a position fixer, with a special NMEA output
cable.
IMPORTANT NOTE
Your Network QUAD unit must be set-up and calibrated
correctly before it is used as part of a navigational system.
