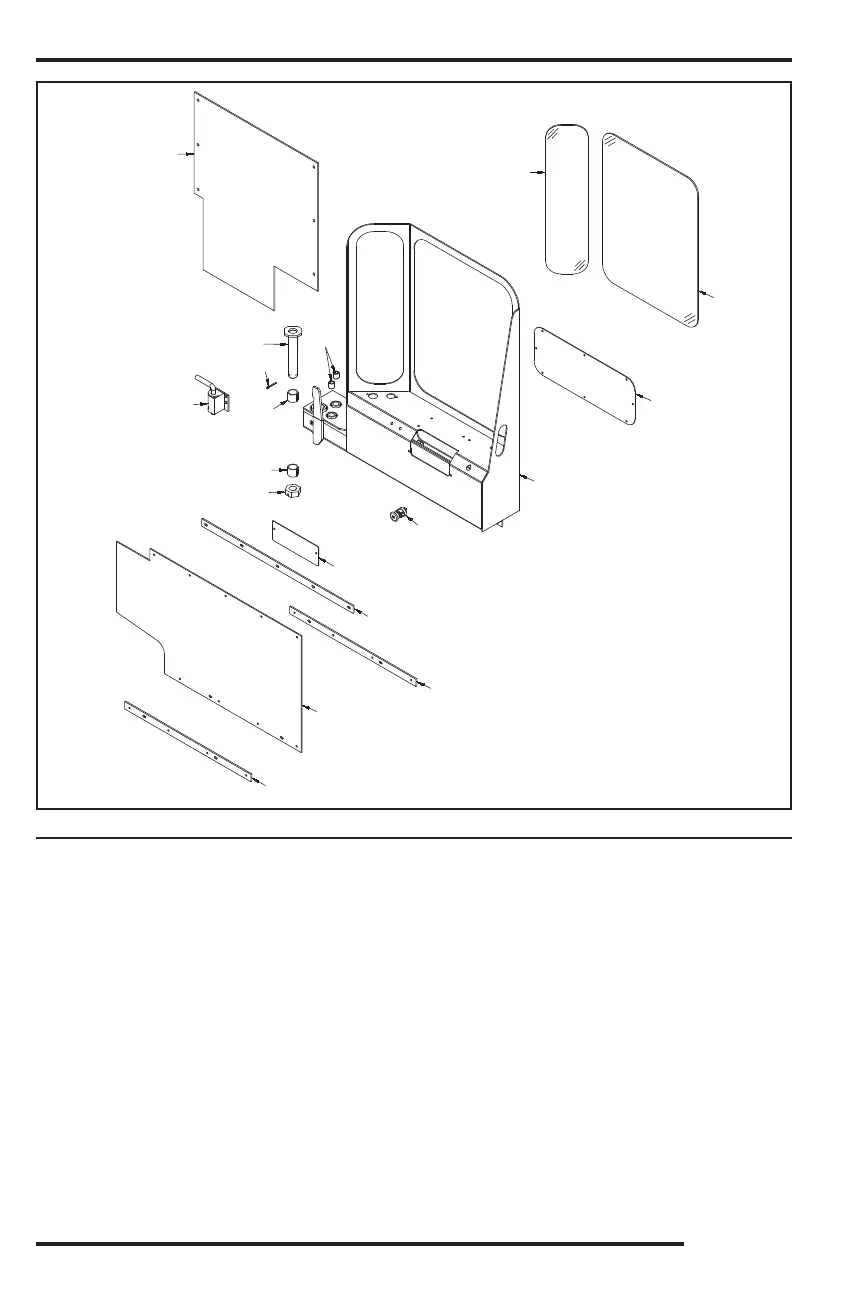

Bandit 2890SP - Swing out Arm Components Exploded View and Parts List

Bandit
80
Copyright 12/17
MODELS 2890SP/2900T
1
2
1
3
4
5
7
9
8
6
10
16
14
13
11
12
15
6
LOCATION PART NUMBER DESCRIPTION
1. 992-3002-94 Chip Curtain Strap - Bottom
2. 992-3002-87 Chip Curtain
3. 992-3002-88 Chip Curtain Strap - Top
4. 203-3001-95 Valve Cover
5. 900-4907-23 Slotted Hex Nut
6. 900-1908-37 Split Bushing
7. 992-2000-54 Spring Pin Assembly
8. 900-4911-75 Cotter Pin
9. 992-2000-52 Swing Out Pin Assembly (Includes 5 & 8)
10. 900-1908-38 Split Bushing
11. 992-3003-44 Clear Chip Curtain
12. a. 992-3002-77 Window - Small
b. 900-8900-07 Window Seal - Approx. 74” (Not Shown)
13. a. 992-3002-78 Window - Big
b. 900-8900-07 Window Seal - Approx. 105” (Not Shown
14. 989-300721 Front Cover Plate
15. 900-2931-47 E-Stop Assembly
16. 992-2000-51 Swing Out Console Assembly (Includes 4, 10, 14)
SWING OUT ARM COMPONENTS
