Bandit 2890SP - Grading Blade and Mount View and List

Bandit
84
Copyright 12/17
MODELS 2890SP/2900T
LOCATION PART NUMBER DESCRIPTION
GRADING BLADE COMPONENTS
Parts may not be exactly as shown.NOTICE

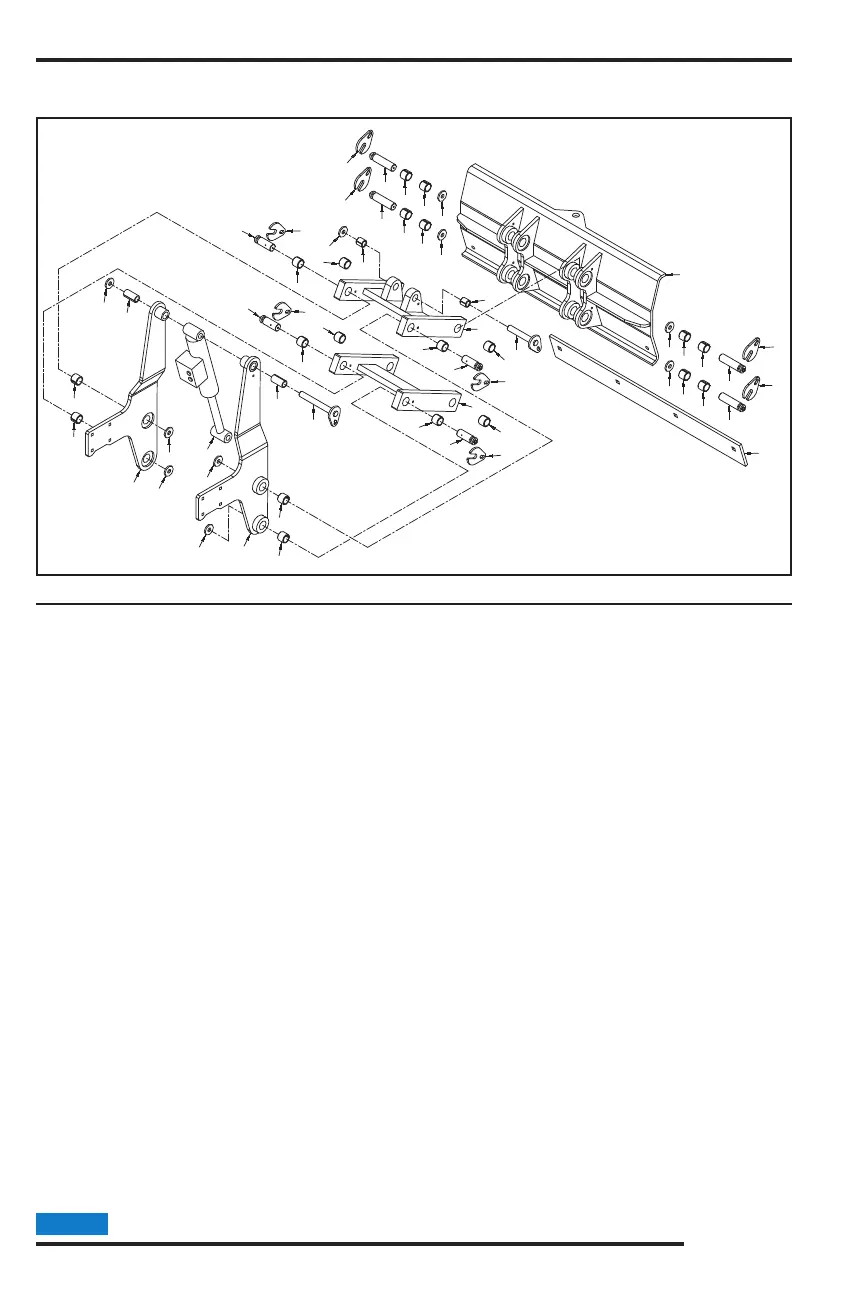

GRADING BLADE & MOUNT
6
8
9
9
9
12
13
12
9
9
15
12
13
13
7
9
9
8
10
10
11
4
3
13
1
2
9
12
9
13
5
9
13
14
8
8
8
8
8
8
8
9
9
9
9
9
9
9
9
16
16
13
8
9
14
9
13
16
16
1. 989-100091 Grading Blade Assembly (Includes 2 & 9)
2. 989-300625 Grading Blade Scrape Bar
3. 992-2000-22 Grading Blade Upper Arm Assembly (Includes 9 & 14)
4. 992-2000-01 Grading Blade Lower Arm Assembly (Includes 9)
5. a. 992-2000-20 Scrape Blade Mount - Left Side - 2890 (Includes 9 & 10)
b. 992-2000-32 Scrape Blade Mount - Left Side - 2900 (Includes 9 & 10)
6. a. 992-2000-21 Scrape Blade Mount - Right Side - 2890 (Includes 9 & 10)
b. 992-2000-33 Scrape Blade Mount - Right Side - 2900 (Includes 9 & 10)
7. 900-3941-35 Cylinder for Grading Blade
8. 900-4913-50 9/16” Carbon Steel Washer
9. 900-1902-42 Split Bushing - 1 1/4” OD x 1” ID x 1”
10. 900-1912-83 Split Bushing - 1” OD x 3/4” ID x 2”
11. 992-2000-24 Upper Cylinder Pin Assembly (Includes 8)
12. a. 992-1000-65 Inner Blade Pin Assembly - Short (Includes 8 & 13)
b. 992-3004-38 Inner Blade Pin Only
13. 992-3004-37 Blade Pin Retainer
14. 900-1908-38 Split Bushing - 1” OD x 3/4” ID x 1”
15. 992-2000-23 Lower Cylinder Pin Assembly (Includes 8)
16. a. 992-1000-66 Outer Blade Pin Assembly - Long
b. 992-3004-39 Outer Blade Pin Only
17. a. 992-1000-11 Grading Blade Assembly - 2890 (Includes 1 - 16)
b. 992-1000-14 Grading Blade Assembly - 2900 (Includes 1 - 16)
