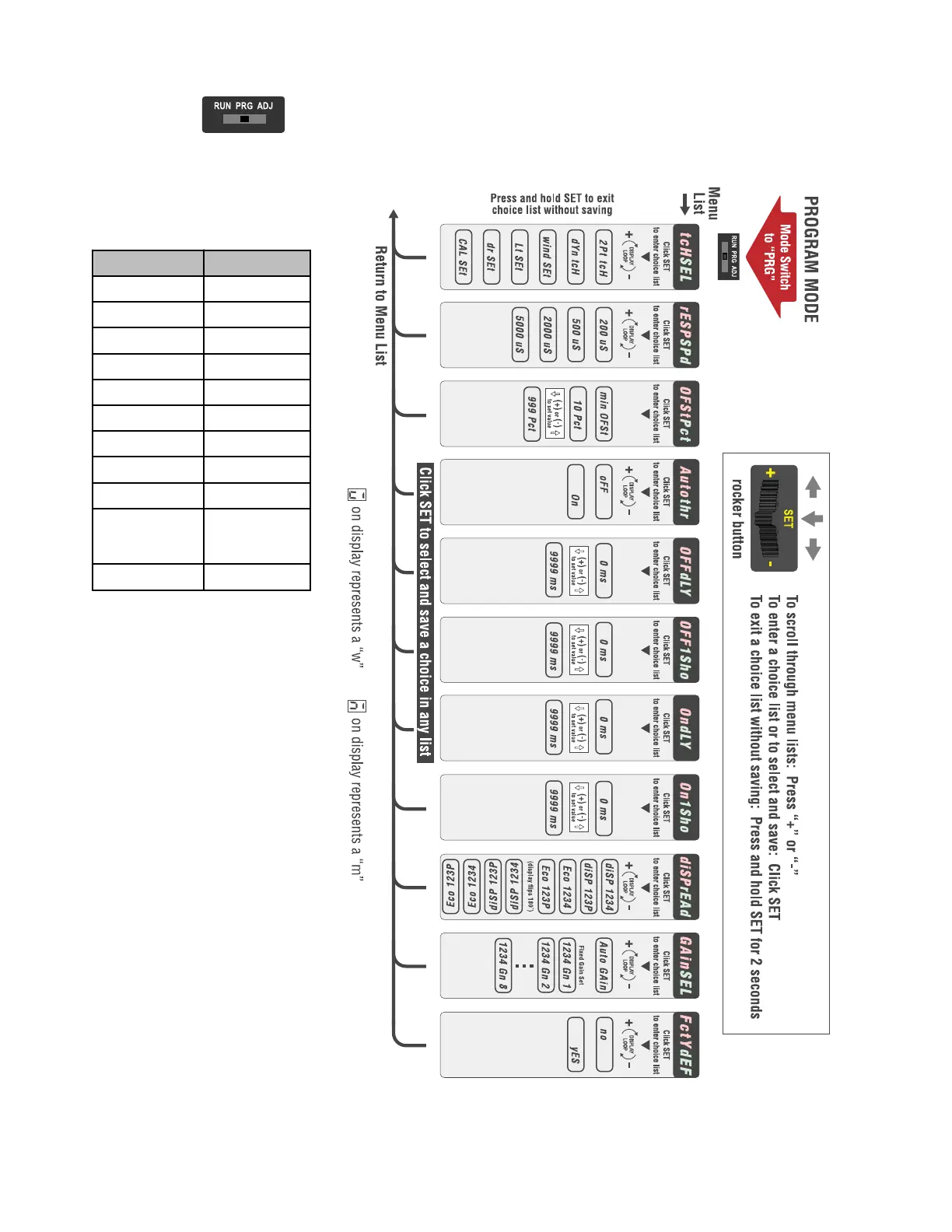

Program Mode
Program (PRG) mode allows the following set-
tings to be programmed in the DF-G1 :
Factory Default Settings:
Setting Factory Default
Threshold 2026
TEACH Selection Two-Point TEACH
Response Speed Standard - 500 us
Offset Percent 10%
Auto Thresholds OFF
OFF Delay 0 (Disabled)
OFF One-Shot 0 (Disabled)
ON Delay 0 (Disabled)
ON One-Shot 0 (Disabled)
Display Readout Numeric, ECO disa-
bled, Normal Orien-
tation
Gain Selection Auto Gain
DF-G1 - Expert Fiber Amplifier Install Sheet
P/N 161275 Rev. A www.bannerengineering.com - tel: 763-544-3164 3

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
