Window SET
• Sets window thresholds that extend a programmable % offset above and below the presented condition
• All other conditions (lighter or darker) cause the output to change state
• Sensing window center can be adjusted using “+” and “-” rocker button (Manual Adjust)
• Recommended for applications where a product may not always appear in the same place, or when other signals may appear
• See Program Mode in the user's manual for programming the Offset Percent setting (to increase/decrease the window size)

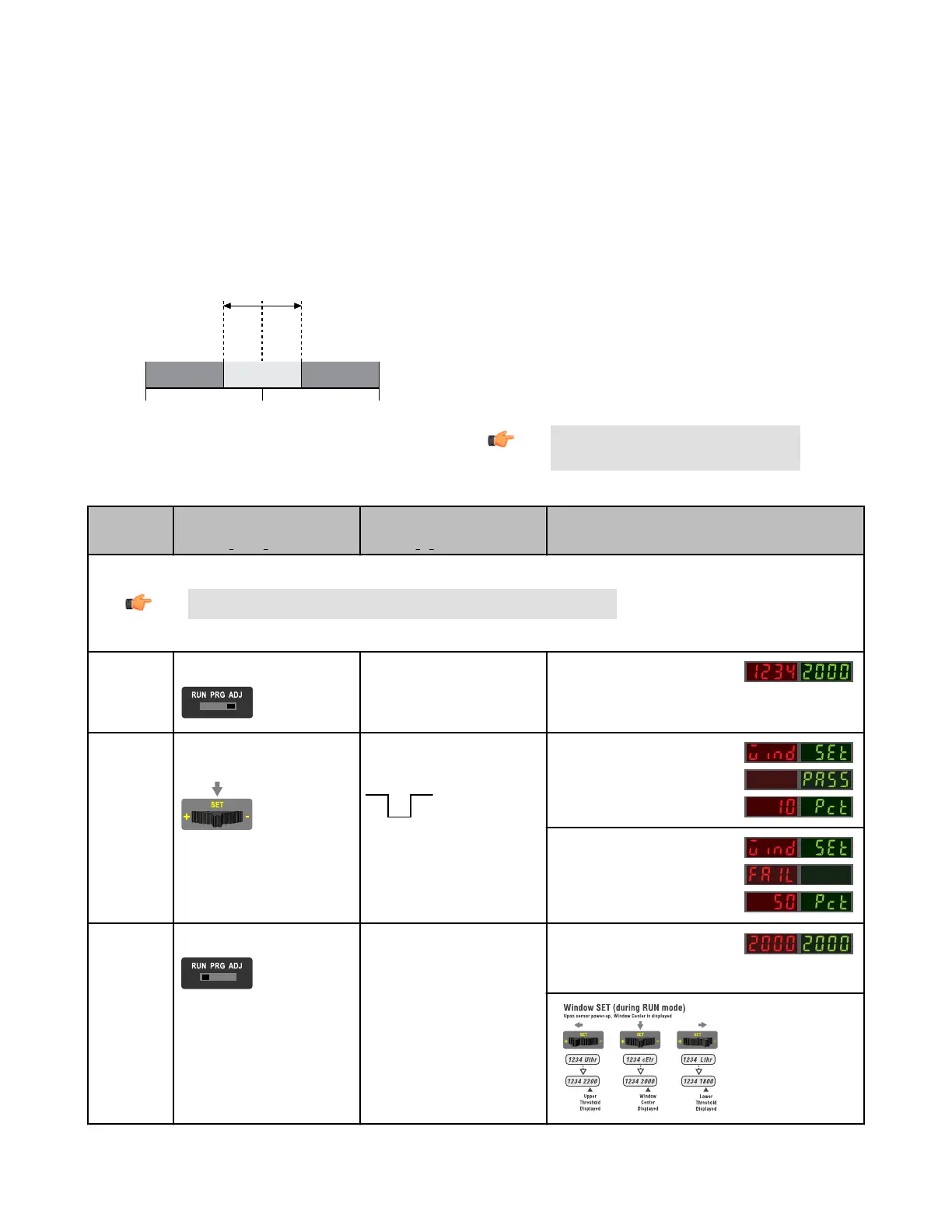

A single sensing condition is presented, and the sensor positions window thresholds a programmable % offset above and below the presented condition. In LO mode,
Window SET designates a sensing window with the Output ON condition inside the window, and the Output OFF conditions outside the window (see Figure below).
Output ON and OFF conditions can be reversed using the LO/DO switch (see LO/DO Switch in Top Panel Interface on page 2).
Sensor positions
window thresholds
a programmable %
offset from the
presented condition
Darkest
(no signal)
Most Light
(saturated
signal)
Condition
Presented
Sensing window
center adjusted by
Manual Adjust
Output OFF Output OFFOutput ON
Figure 4. Window SET (Light Operate shown)
Window SET and Manual Adjust
• Moves sensing window center value up or down to make adjustments
• Slide Mode switch to ADJ to enter Adjust mode
• Press “+” to increase; press “-” to decrease
• GREEN display shows the sensing window center value
• 2 seconds after adjustment, the GREEN display will flash 3 times to confirm
• Slide Mode switch to RUN to complete operation
Remember: Manual adjustments are disabled
when Auto Thresholds are ON
SET Button
0.04 seconds < "Click" < 0.8 seconds
Remote Input
0.04 seconds < T < 0.8 seconds
Result
Note: TEACH Selection must be programmed to wind SEt (see Program Mode on page 3 )
Enter Adjust
Mode
• Set Mode switch to ADJ
No action required; sensor is ready for
Window SET method
Display: Red - Signal Level; Green -
Threshold
SET Sensing
Condition
• Present sensing condition
• Click the SET rocker button
• Present sensing condition
• Single-pulse the remote input
T
Threshold Condition Accepted
Displays read "wInd SEt" then alternate
"PASS" with % Offset*; Sensor returns
to Adjust mode
Threshold Condition Unacceptable
Displays read "wInd SEt" then alternate
"FAIL" with minimum % Offset* for
sensing condition; Sensor returns to Ad-
just mode
Return to RUN
Mode
• Move Mode switch to RUN
No action required; sensor returns to
RUN mode automatically
Display: Red - Signal Level; Green -
Window Center (see Figure below for in-
structions on how to display upper and
lower thresholds)
* See Troubleshooting on page 10 for more explanation of the % Offset displayed after the Window SET method
DF-G1 - Expert Fiber Amplifier Install Sheet
6 www.bannerengineering.com - tel: 763-544-3164 P/N 161275 Rev. A

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
