Dynamic TEACH
• Teaches on-the-fly
• Establishes a single switching threshold
• Threshold can be adjusted using “+” and “-” rocker button (Manual Adjust)
Dynamic TEACH is best used when a machine or process may not be stopped for teaching. The sensor learns during actual sensing conditions, taking multiple samples of
the light and dark conditions and automatically setting the threshold at the optimum level (see Figure below).
The output ON and OFF conditions can be reversed using the LO/DO switch (see LO/DO Switch in Top Panel Interface on page 2).
Dynamic TEACH and Manual Adjust
• Moves switching threshold value up or down to make adjustments
• Slide Mode switch to ADJ to enter Adjust mode
• Press “+” to increase; press “-” to decrease
• GREEN display shows the switching threshold value
• 2 seconds after adjustment, GREEN display will flash 3 times to confirm
• Slide Mode switch to RUN to complete operation
Remember: Manual adjustments are disabled
when Auto Thresholds are ON
Sensor positions
threshold midway
between taught conditions
Darkest
(no signal)
Most Light
(saturated
signal)
Output OFF Output ON
Darkest Taught
Condition
Lightest Taught
Condition
Position
adjusted by
Manual Adjust

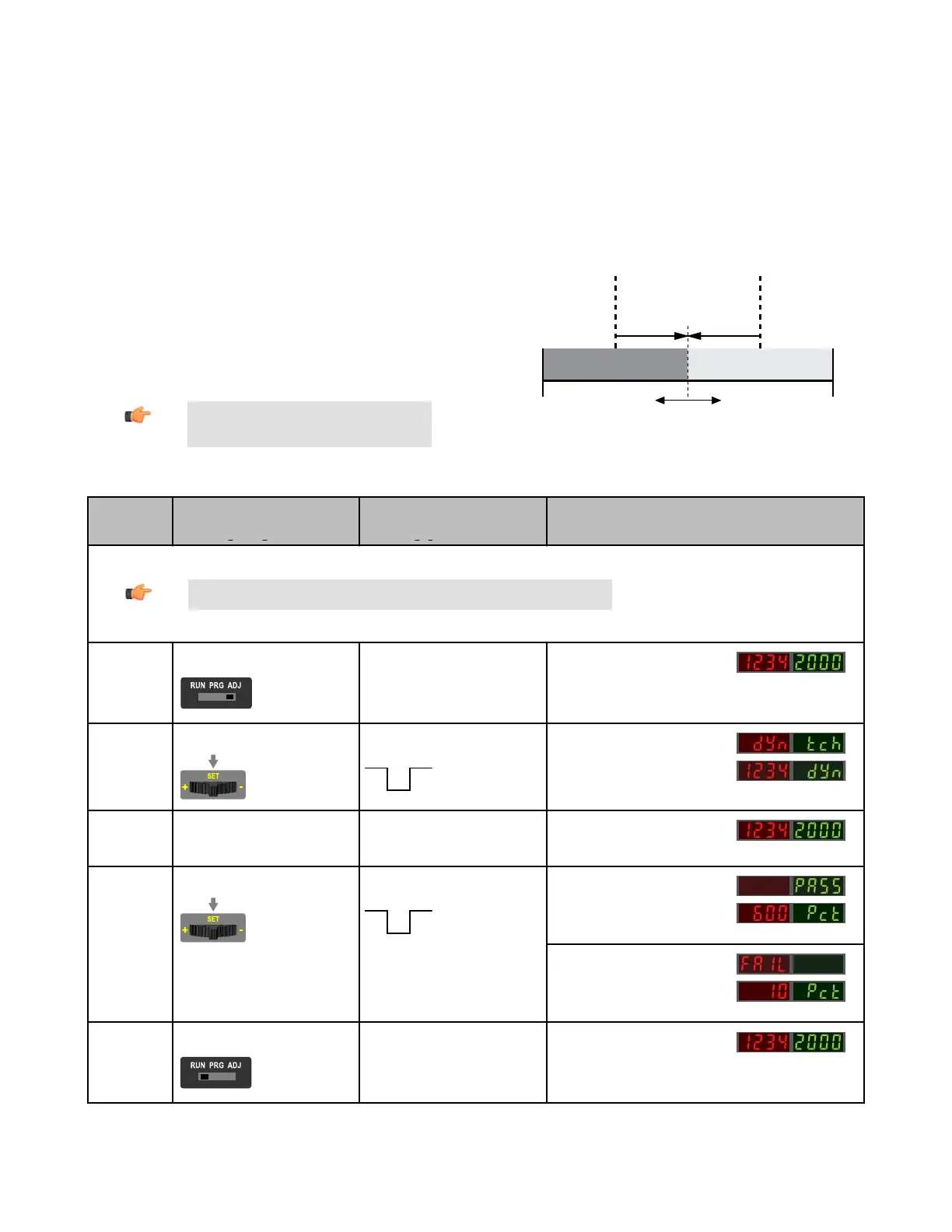

Figure 3. Dynamic TEACH (Light Operate shown)
SET Button
0.04 seconds < "Click" < 0.8 seconds
Remote Input
0.04 seconds < T < 0.8 seconds
Result
Note: TEACH Selection must be programmed to dYn tcH (see Program Mode on page 3 )
Enter Adjust
Mode
• Set Mode switch to ADJ
No action required; sensor is ready for
Dynamic TEACH method
Display: Red - Signal Level; Green -
Threshold
Enter Dynamic
TEACH
• Click the SET rocker button • Single-pulse remote input
T
Display: Flashes "dYn tch" then
holds on "1234 dYn"
Present ON
and OFF Con-
ditions
• Present ON and OFF conditions • Present ON and OFF conditions
Display: Red - Signal Level; Green -
Threshold
Exit Dynamic
TEACH
• Click the SET rocker button • Single-pulse remote input
T
TEACH Accepted
Displays alternate "PASS" with % Min-
imum Difference*, Sensor returns to
Adjust mode
TEACH Unacceptable
Displays alternate "FAIL" with % Mini-
mum Difference*, Sensor returns to
Adjust mode
Return to RUN
Mode
• Move Mode switch to RUN
No action required; sensor returns to
RUN mode automatically
Display: Red - Signal Level; Green -
Threshold
* See Troubleshooting on page 10 for more explanation of the % Minimum Difference displayed after the Dynamic TEACH method
DF-G1 - Expert Fiber Amplifier Install Sheet
P/N 161275 Rev. A www.bannerengineering.com - tel: 763-544-3164 5

Banner DF-G1-NS-2M Specifications

Power

supply voltage	10 to 30 V dc
power consumption (standard display mode)	960 mW
current consumption (standard display mode)	< 40 mA at 24 V dc
power consumption (ECO display mode)	720 mW
current consumption (ECO display mode)	< 30 mA at 24 V dc

Output

output configuration	1 current sinking (NPN) or 1 current sourcing (PNP) output
output rating	100 mA max. load
off-state leakage current (NPN/PNP models)	< 5 μA at 30 V dc
on-state saturation voltage (NPN)	< 1.5 V

Performance

output response time (high speed)	200 µs
output response time (standard)	500 µs
repeatability (high speed)	66 µs
repeatability (standard/long range/extra long range)	100 µs

Operating Environment

operating temperature	−10 °C to +55 °C
storage temperature	−20 °C to +85 °C
humidity	90% at +60 °C maximum relative humidity (non-condensing)
